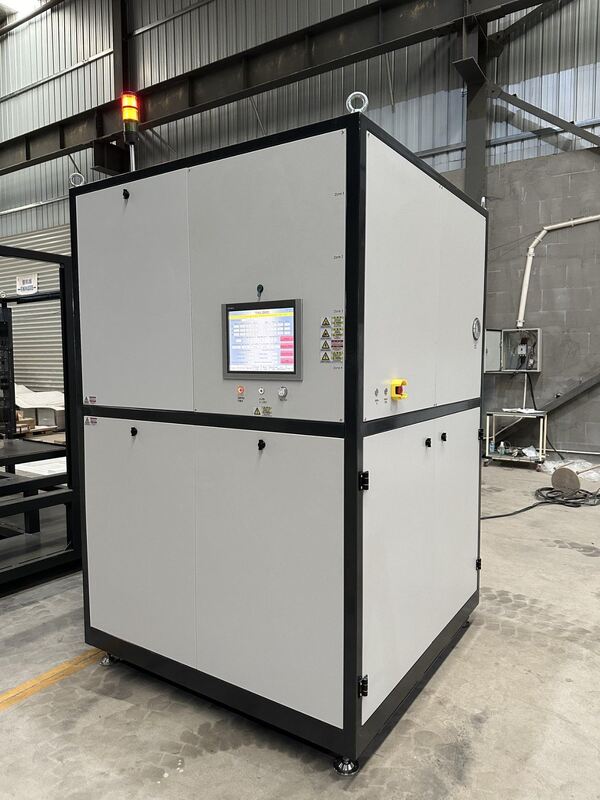

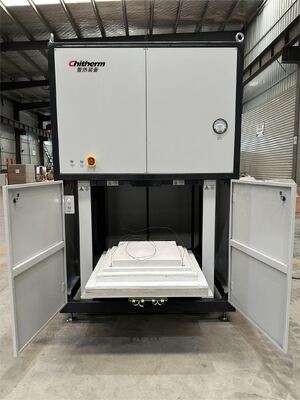

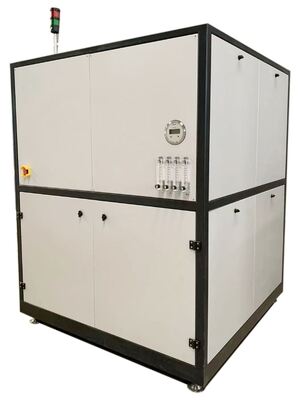

BF216-11 Bell Furnace is equipped with a lifting base support

Large Image : BF216-11 Bell Furnace is equipped with a lifting base support

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	Bf216-11

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	86000-86361
Packaging Details:	Wooden Package
Payment Terms:	L/C,T/T
Supply Ability:	50 Sets/Year

Contact Now Chat Now

BF216-11 Bell Furnace is equipped with a lifting base support

Description

Model NO.:	Bf216-11	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Sintering
Fuel:	Electric	Model:	Bf216-11

BF216-11 Bell Furnace is equipped with a lifting base support

Product Specifications

Attribute	Value
Model NO.	BF216-11
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Sintering
Fuel	Electric
Model	BF216-11

Technical Specifications

Operating Temperature: 850°C (Max 1000°C)

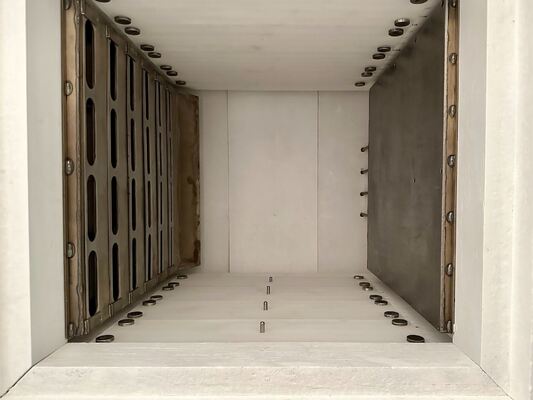

Chamber Dimensions: 600×600×600mm (Effective 400×400×400mm)

Insulation: Aluminosilicate ceramic fiber

Heating System: Resistance coils in ceramic blocks with 4-point K-type thermocouple control

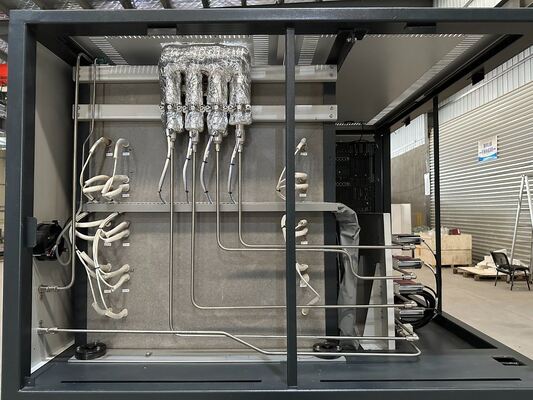

Air Filtration: 3-stage (dust/water/oil) with 4 pre-heating inlets

Shipping List

Item	Description	Qty
Basic Components	Furnace	1SET
Inspection Certificate	Certificate of major outsourced components	1SET
Technical Documents	Instructions, technical documents of the major outsourced parts, etc	1SET
Key Components	Heating Elements - Resistance Coils Heating Plate	1SET
Flowmeter	Azbil/Dwyer/TOFCO/YINHUAN	1SET
Differential Pressure	Dwyer/TOFCO/DUWEI	1SET
Thermocouple	Watlow/THERMOWAY	1SET
Lifting System	Customized	1SET
Temp. Controller	Azbil	1SET
PLC	SIEMENS	1SET
Touch Screen	MCGS (based on Linux)	1SET
Spare Parts	Solid State Relay - XIMADEN	1PC
Heating Elements	Resistance Coils Heating Plate	1PC

Facility Requirements

Atmosphere: Dry, clean, oil-free compressed air (0.2-0.4MPa working pressure, 25-70 m³/h consumption)

Environment: 0-40°C ambient temperature, ≤80% RH humidity, corrosion-free atmosphere with minimal air disturbance

Ventilation: Non-contact exhaust system with >100 m³/h capacity

Foundation: Level surface with >500 kg/m² load capacity and minimal vibration

Power Supply: >70kVA capacity, 3-phase 5-wire (220/380V, 50Hz) with color-coded wiring:

Fire lines: Yellow/Green/Red
Neutral: Blue
Ground: Yellow-Green

Space Requirements: Minimum 11m² installation area within 3500×3000×3000mm (L×W×H) dimensions
