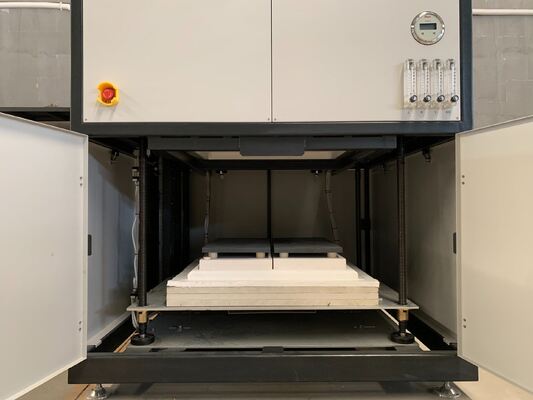

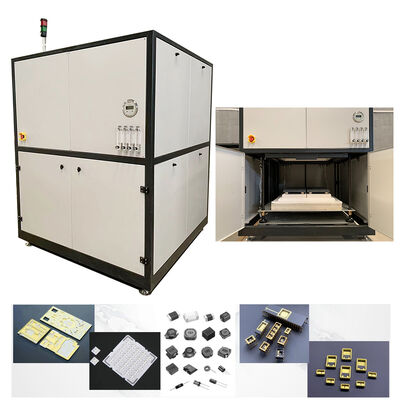

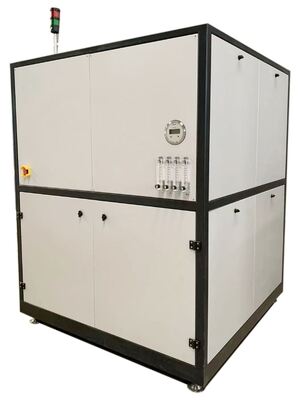

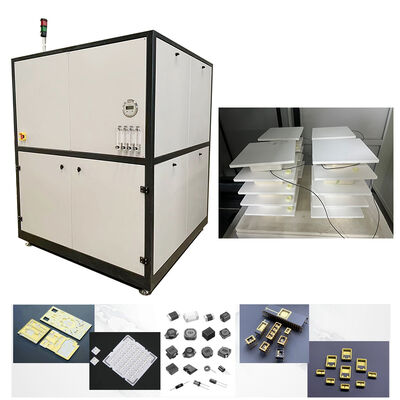

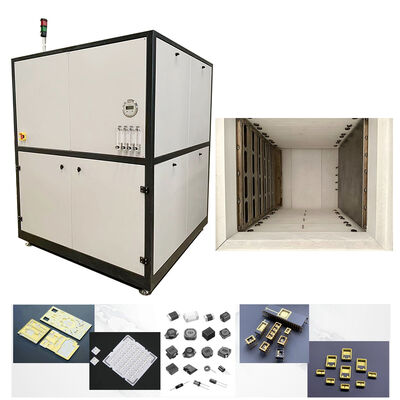

Model BF216-11 Bell-Type Furnace, Four-Sided Heating
Hefei Chitherm Equipment Co., Ltd. is a professional enterprise engaged in the research and development, design, manufacturing, sales, maintenance and service of high, medium and low temperature industrial furnaces and experimental furnaces.
Our products include Bell Furnaces, Box Furnaces, Hot Air Dryer, Tube Furnaces, Vacuum Furnaces, Trolley Furnaces, and Rotary Furnaces. All of which are widely used in scientific research and experimentation in advanced ceramics, additive manufacturing, powder metallurgy, new energy and other fields. Suitable for the extrusion, sintering process of magnetic materials, honeycomb ceramics, alumina ceramics, zirconia ceramics, CIM/MIM, and positive and negative electrode materials of lithium batteries, as well as various other new materials such as pre-firing, extrusion, degreasing, firing, drying, co-firing, post-firing, soldering, curing, ceramic metallization, etc.
We insist responsible attitude towards customers and provide high-quality products and services. It is precisely because of the support, understanding, and trust of our customers and friends that our intelligent equipment manufacturing capabilities continue to improve. We are willing to work with customers to support the rapid development of electronis and advance materials all over the world.
Product Specifications
| Attribute |
Value |
| Model NO. |
BF216-11 |
| Range of Applications |
Industrial |
| Type |
Electric Holding Furnace |
| Usage |
Ceramic Sintering |
| Fuel |
Electric |
| Model |
BF216-11 |
Technical Specifications
Operating Temperature: 850°C (Max 1000°C)

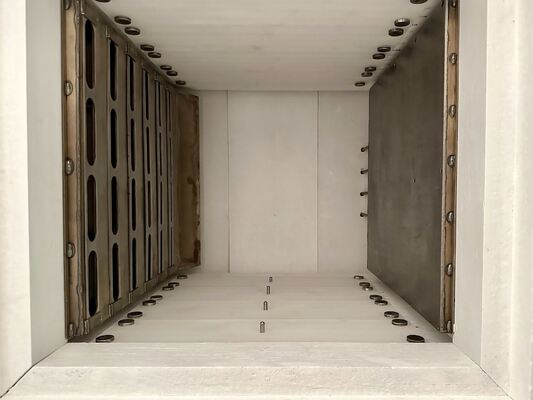

Chamber Dimensions: 600×600×600mm (Effective 400×400×400mm)
Insulation: Aluminosilicate ceramic fiber
Heating System: Resistance coils in ceramic blocks with 4-point K-type thermocouple control

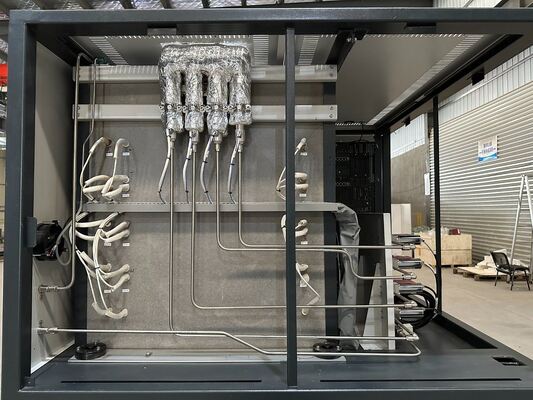

Air Filtration: 3-stage (dust/water/oil) with 4 pre-heating inlets
Shipping List
| Item |
Description |
Qty |
| Basic Components |
Furnace |
1SET |
| Inspection Certificate |
Certificate of major outsourced components |
1SET |
| Technical Documents |
Instructions, technical documents of the major outsourced parts, etc |
1SET |
| Key Components |
Heating Elements - Resistance Coils Heating Plate |
1SET |
| Flowmeter |
Azbil/Dwyer/TOFCO/YINHUAN |
1SET |
| Differential Pressure |
Dwyer/TOFCO/DUWEI |
1SET |
| Thermocouple |
Watlow/THERMOWAY |
1SET |
| Lifting System |
Customized |
1SET |
| Temp. Controller |
Azbil |
1SET |
| PLC |
SIEMENS |
1SET |
| Touch Screen |
MCGS (based on Linux) |
1SET |
| Spare Parts |
Solid State Relay - XIMADEN |
1PC |
| Heating Elements |
Resistance Coils Heating Plate |
1PC |
Facility Requirements
Atmosphere: Dry, clean, oil-free compressed air (0.2-0.4MPa working pressure, 25-70 m³/h consumption)
Environment: 0-40°C ambient temperature, ≤80% RH humidity, corrosion-free atmosphere with minimal air disturbance
Ventilation: Non-contact exhaust system with >100 m³/h capacity
Foundation: Level surface with >500 kg/m² load capacity and minimal vibration
Power Supply: >70kVA capacity, 3-phase 5-wire (220/380V, 50Hz) with color-coded wiring:
- Fire lines: Yellow/Green/Red
- Neutral: Blue
- Ground: Yellow-Green
Space Requirements: Minimum 11m² installation area within 3500×3000×3000mm (L×W×H) dimensions
