Product Details:
Place of Origin: China
Brand Name: Chitherm
Model Number: Bf216-11
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 86000-86361
Packaging Details: Wooden Package
Payment Terms: L/C,T/T
Supply Ability: 50 Sets/Year
Contact Now Chat Now

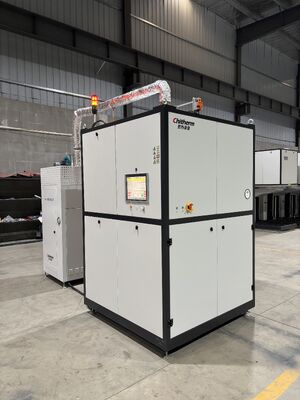

BF216-11 Bell Furnace _ Manufacturer of High-Precision Temperature Control Sintering Furnaces for Electronic Products

Description
Model NO.: Bf216-11 Range Of Applications: Industrial
Type: Electric Holding Furnace Usage: Ceramic Sintering
Fuel: Electric

BF216-11 Bell Furnace _ Manufacturer of High-Precision Temperature Control Sintering Furnaces for Electronic Products
Product Specifications
Model NO. Bf216-11
Range of Applications Industrial
Type Electric Holding Furnace
Usage Ceramic Sintering
Fuel Electric
Product Description
Application

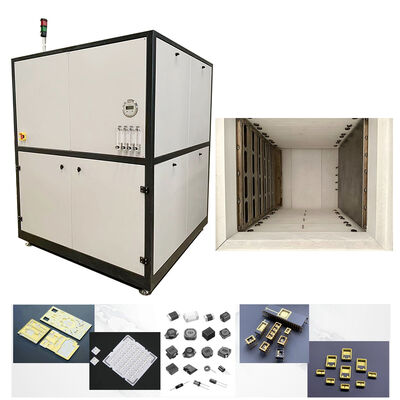

This equipment is mainly designed for LTCC sintering, it can also be used for binder burning out and sintering process of other relevant electrical products.


Technical Specification
3.1 Rated temperature: 850 ℃
3.2 Maximum temperature: 1050 ℃

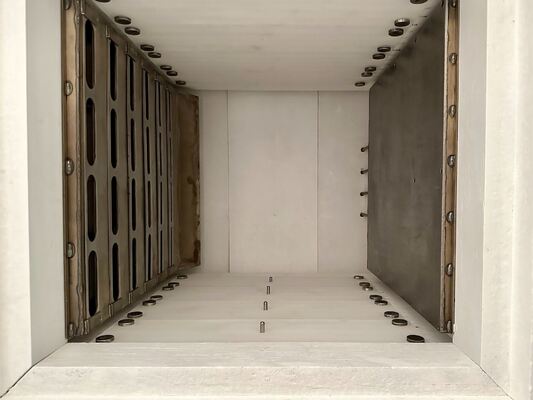

3.3 Furnace chamber dimensions: 600 mm × 600 mm × 600 mm (D × W × H)
3.4 Effective working dimensions: 400 mm × 400 mm × 400 mm (D × W × H)
3.5 Heating element: FEC ceramic fiber heating plate
3.6 Maximum heating power: 40 kW
3.7 Holding power at empty furnace: ≤ 30 kW
3.8 Maximum gas preheating power: 4 × 3 kW
3.9 Thermocouple type: K-type;
3.10 Number of temperature control zones: 4 zones;
3.11 Inlet gas preheating: 4 points;
3.12 Temperature monitoring ports: 7 channels;
3.13 Testing port: Reserved curve thermocouple hole at the bottom of the equipment;
3.14 Temperature control accuracy: ≤ ±1 ℃;
3.15 Temperature control mode: Imported temperature control module from Japan;
3.16 Number of heating segments: 20 segments;
3.17 Temperature recording: Real-time sampling and recording of furnace temperature and gas heating temperature by upper computer;
3.18 Heating rate: < 6 ℃/min;
3.19 Temperature uniformity in effective zone: Better than ±3 ℃;
3.20 Surface temperature rise: ≤ 35 ℃;

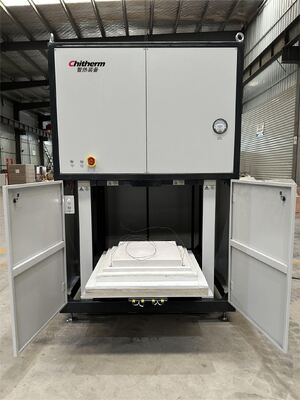

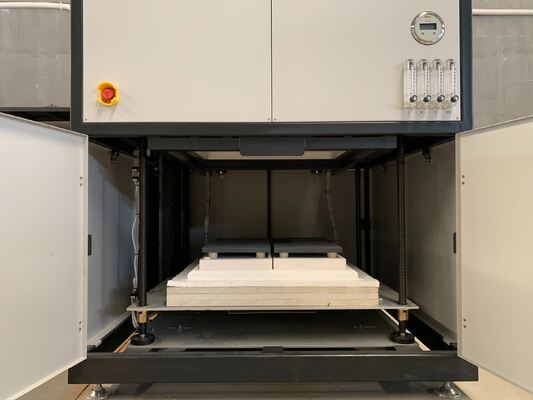

3.21 Maximum lifting stroke: 600 mm;

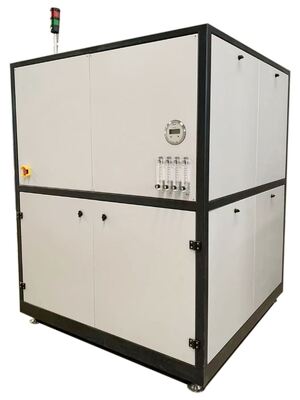

BF216-11 Bell Furnace _ Manufacturer of High-Precision Temperature Control Sintering Furnaces for Electronic Products 0 BF216-11 Bell Furnace _ Manufacturer of High-Precision Temperature Control Sintering Furnaces for Electronic Products 1
Shipping List
Item Description Qty
Basic Components Furnace 1SET
Inspection Certificate Certificate of major outsourced components 1SET
Technical Documents Instructions, technical documents of the major outsourced parts, etc 1SET
Key Components Heating Elements | Resistance Coils Heating Plate 1SET
Flowmeter Azbil/Dwyer/TOFCO/YINHUAN 1SET
Differential Pressure Dwyer/TOFCO/DUWEI 1SET
Thermocouple Watlow/THERMOWAY 1SET
Lifting System Customized 1SET
Temp. Controller Azbil 1SET
Touch Screen MCGS (based on Linux) 1SET
Spare Parts Solid State Relay | XIMADEN 1PC
Heating Elements Resistance Coils Heating Plate 1 PC
Facility Requirements
  1. Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.2-0.4MPa, gas consumption of 25-70 m3/h
  2. Environmental Conditions: temperature: 0~40ºC, humidity≤80%RH, no corrosive gas, no strong airflow disturbance
  3. Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 100 m3/h
  4. Ground Requirements: horizontal, no obvious vibration, load-bearing>500 kg/m2
  5. Power: capacity> 70KVA, 3-phases 5-lines, voltage 220 / 380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green
  6. Installation Site: 3500mm×3000mm×3000mm (D×W×H), with an installation area greater than 11m2
BF216-11 Bell Furnace _ Manufacturer of High-Precision Temperature Control Sintering Furnaces for Electronic Products 2
Company Profile

Hefei Chitherm Equipment Co., Ltd. is a professional enterprise engaged in the research and development, design, manufacturing, sales, maintenance and service of high, medium and low temperature industrial furnaces and experimental furnaces. Our products include Bell Furnaces, Box Furnaces, Hot Air Dryer, Tube Furnaces, Vacuum Furnaces, Trolley Furnaces, and Rotary Furnaces. All of which are widely used in scientific research and experimentation in advanced ceramics, additive manufacturing, powder metallurgy, new energy and other fields. Suitable for the extrusion, sintering process of magnetic materials, honeycomb ceramics, alumina ceramics, zirconia ceramics, CIM/MIM, and positive and negative electrode materials of lithium batteries, as well as various other new materials such as pre-firing, extrusion, degreasing, firing, drying, co-firing, post-firing, soldering, curing, ceramic metallization, etc. We insist responsible attitude towards customers and provide high-quality products and services. It is precisely because of the support, understanding, and trust of our customers and friends that our intelligent equipment manufacturing capabilities continue to improve. We are willing to work with customers to support the rapid development of electronis and advance materials all over the world.

BF216-11 Bell Furnace _ Manufacturer of High-Precision Temperature Control Sintering Furnaces for Electronic Products 3 BF216-11 Bell Furnace _ Manufacturer of High-Precision Temperature Control Sintering Furnaces for Electronic Products 4
Frequently Asked Questions
What products does Chitherm offer?

We provide customers with high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.

What pre-sales services does Chitherm provide?

We offer timely consultation services to help customers select the most suitable products, along with highly customizable solutions to meet your specific requirements.

What are Chitherm's core strengths?

As a high-tech enterprise integrating R&D, manufacturing, and sales, Chitherm possesses patented technologies and core resources to deliver superior solutions.
