Medium Temperature Atmosphere Box Furnace MBF22-11N_Industrial Energy-Saving Muffle Furnace

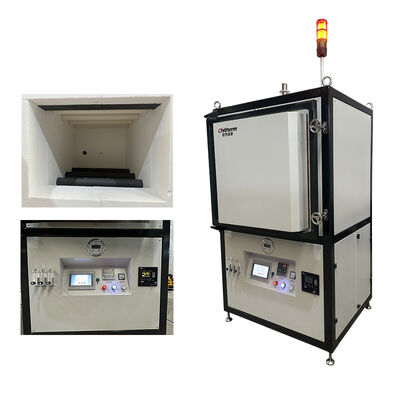

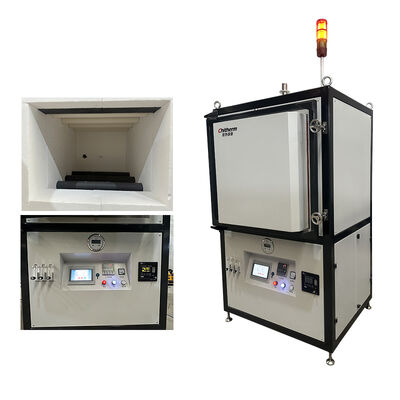

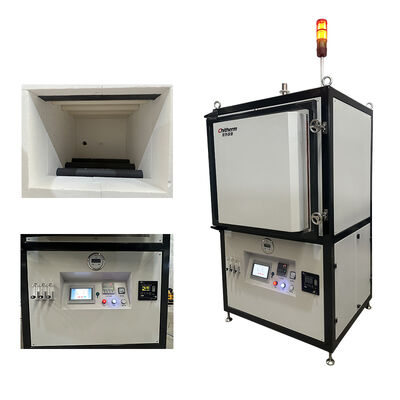

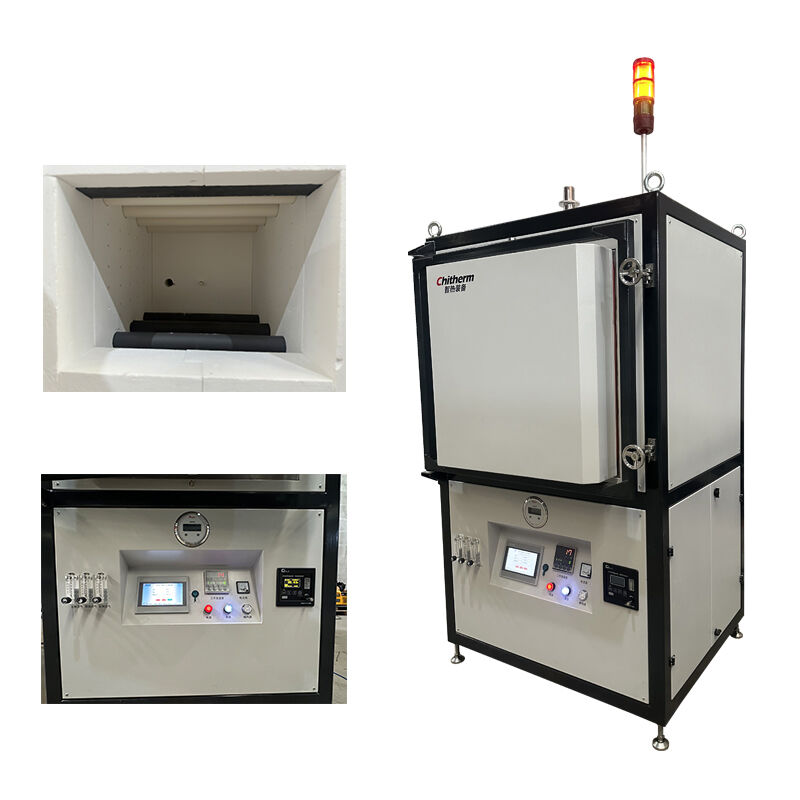

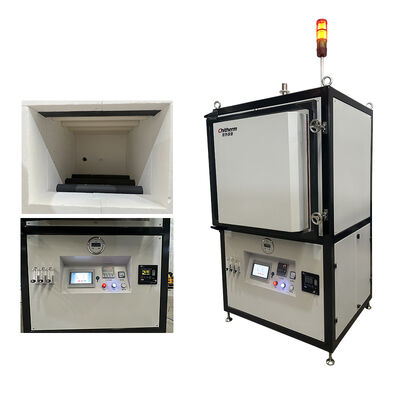

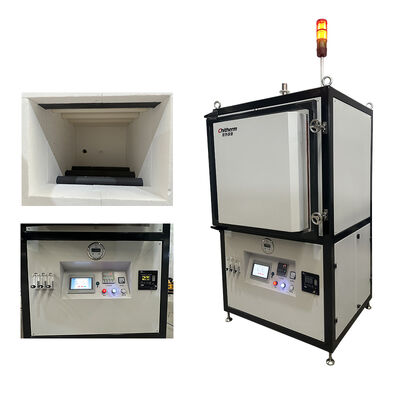

Electric Chitherm MBF22-11N Medium-Temperature Atmosphere Box Furnace with Nitrogen/Air capability, designed for precision industrial heating applications up to 1100°C.

The inner layer is constructed with alumina products, and the outer layer is insulated with standard plates; the plug bricks at the furnace mouth and furnace door are also made of alumina products. The saggar is placed on SiC ceramic rollers inside the furnace chamber. The furnace chamber adopts upper and lower heating.

• Rated Temperature: 1000°C
• Maximum Temperature: 1100°C
• Effective Size: 330mm×200mm×330mm (W×H×D)
• Sagger Specification: 330mm×100mm×330mm (W×H×D)
• Loading Method: SiC roller rods in double-layer, longitudinal double-row arrangement
• Heating Element: Silicon carbide rod inserted in ceramic tube
• Temperature Control: ±1°C accuracy with PID self-tuning
• Furnace Temperature Uniformity: ±5°C
• Sintering Atmosphere: Nitrogen/Air with oxygen content better than 10ppm
• Maximum Heating Power: 12kW
• Heating Rate: ≤5°C/min

• Environment: 0-40°C, ≤80%RH, no corrosive gases
• Ventilation: Exhaust capacity >10m³/h
• Gas Source: High-purity nitrogen (99.999%) or clean compressed air
• Power: >16kVA, 3-phase 5-wire, 220/380V, 50Hz
• Installation Space: 2000×2000×3000mm (D×W×H)
