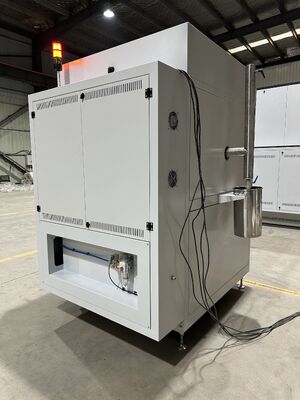

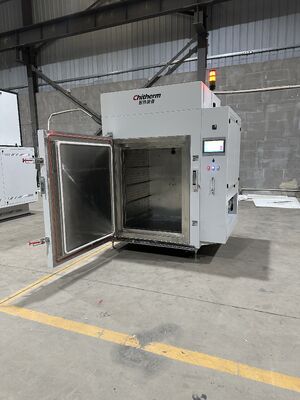

Model HRF930-05 Hot Air Box Furnace, Precision Hot Air Circulating Box Furnace for Heat Treatment Aging and Annealing
The whole oven is mainly divided into four major parts: furnace body structure, hot air circulation system, temperature control system and tail gas treatment device.
Product Description
50 Sets/Year Chitherm HRF930‑05 Hot‑Air Circulating Chamber Furnace for Air Atmosphere Manufacturing Facility
Application
HRF930‑05 Hot‑Air Circulating Chamber Furnace is Widely used for processes such as constant‑temperature drying, curing and debinding of electronic ceramics and other products.

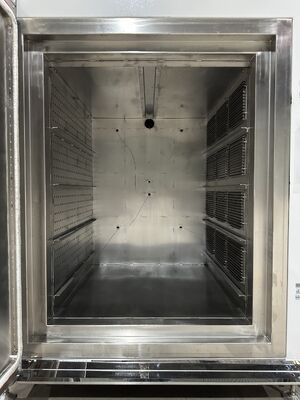

HRF930‑05 Hot‑Air Circulating Chamber Furnace body structure consists of the heating chamber, hot air system and control system. The heating chamber is hermetically welded from high-quality SUS304 stainless steel plates. Ceramic fiber insulation material is filled between the heating chamber and the furnace frame. The whole furnace is supported by four anchor feet with adjustable height ranging from 80 mm to 200 mm.
Technical Specifications
Rated Temperature: 300℃
Maximum Temperature: 450℃
Chamber Dimension: 900×900×1150 mm (W×D×H)
Chamber Material: SUS304
Material Loading Method: 4‑layer non‑perforated stainless‑steel trays
Heating Element: Stainless‑steel sheathed heaters
Max. Heating Power: 30 kW
Holding Power (Empty Chamber): ≤20 kW
Temperature Control Stability: ±1℃
Temperature Uniformity: Tested at 5 points (upper‑layer diagonal points, 1 central point, lower‑layer diagonal points). Temperature range of the 5 points: Max.‑Min. ≤5℃ (tested after holding at 280℃ for 30 min).
Thermocouple Type: K‑type
Heating Rate: ≤5℃/min
Working Atmosphere: Air (natural air intake or compressed air inlet via flow meter)
Temperature Controller: Imported intelligent temperature controller with PID auto‑tuning function
Program Setting: 20 temperature control programs storable, up to 20 segments per program
Control Points: 1 point
Measurement Points: 6 points
