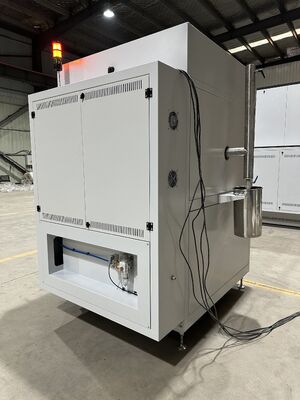

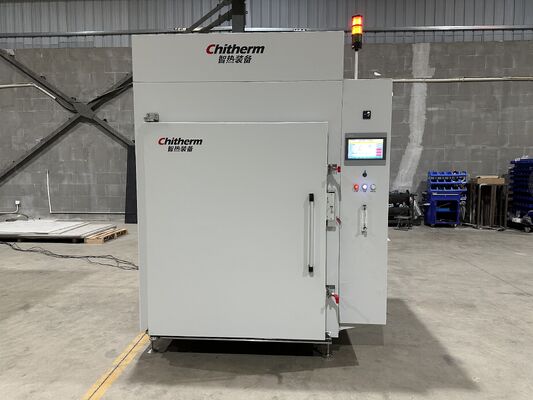

Model HRF930-05 Hot Air Box Furnace | High-Uniformity Hot Air Circulation, Electric Box Furnace for Electronic Ceramic Powder Curing & Binder Removal
Product Description
50 Sets/Year Chitherm HRF930‑05 Hot‑Air Circulating Chamber Furnace for Air Atmosphere Manufacturing Facility
Application
HRF930‑05 Hot‑Air Circulating Chamber Furnace is Widely used for processes such as constant‑temperature drying, curing and debinding of electronic ceramics and other products.
HRF930‑05 Hot‑Air Circulating Chamber Furnace body structure consists of the heating chamber, hot air system and control system. The heating chamber is hermetically welded from high-quality SUS304 stainless steel plates. Ceramic fiber insulation material is filled between the heating chamber and the furnace frame. The whole furnace is supported by four anchor feet with adjustable height ranging from 80 mm to 200 mm.
Technical Specifications
Rated Temperature: 300℃
Maximum Temperature: 450℃
Chamber Dimension: 900×900×1150 mm (W×D×H)
Chamber Material: SUS304
Material Loading Method: 4‑layer non‑perforated stainless‑steel trays
Heating Element: Stainless‑steel sheathed heaters
Max. Heating Power: 30 kW
Holding Power (Empty Chamber): ≤20 kW
Temperature Control Stability: ±1℃
Temperature Uniformity: Tested at 5 points (upper‑layer diagonal points, 1 central point, lower‑layer diagonal points). Temperature range of the 5 points: Max.‑Min. ≤5℃ (tested after holding at 280℃ for 30 min).
Thermocouple Type: K‑type
Heating Rate: ≤5℃/min

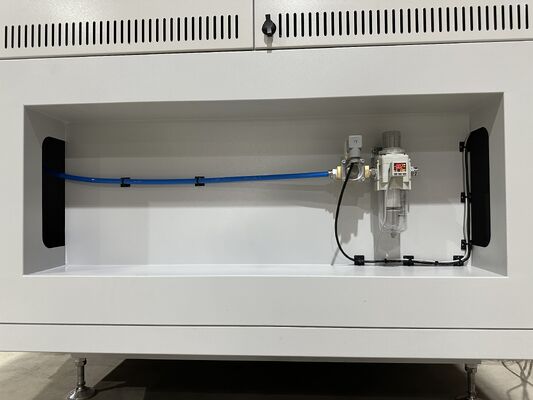

Working Atmosphere: Air (natural air intake or compressed air inlet via flow meter)
Temperature Controller: Imported intelligent temperature controller with PID auto‑tuning function
Program Setting: 20 temperature control programs storable, up to 20 segments per program
Control Points: 1 point
Measurement Points: 6 points
Company Profile
Hefei CHITHERM Equipment Co., Ltd. is an advanced equipment supplier specializing in the research and development, design, manufacturing, sales, maintenance and service of high, medium and low temperature industrial furnaces and experimental furnaces. The products include bell jar furnace, hot blast stove, box furnace, tube furnace, vacuum furnace, trolley furnace, rotary furnace, mesh belt furnace, push plate furnace, etc., which are widely used in advanced ceramics, electronic components, thick film circuit, additive manufacturing, powder metallurgy, new energy, photovoltaic and other fields. It is suitable for the heat treatment process of ITO target, MLCC / HTCC / LTCC, ceramic filter, magnetic material, CIM / MIM, positive and negative electrode of lithium battery, as well as pre firing, glue discharging, degreasing, firing, drying, heat treatment, curing, ceramic metallization and other processes of various new materials. The company's team is composed of elites who have been engaged in thermal technology research and advanced electric furnace equipment development and design for a long time. At the same time, the company also employs experienced experts to provide technical guidance. Adhering to the attitude of being responsible for customers, the company provides customers with high-quality products and services. Looking forward to the future, Hefei Zhire is willing to work with its customers to continue to contribute to the rapid development of China's economy and contribute to the field of China's intelligent equipment manufacturing.
FAQ
1.What products does Chitherm offer?
We provide customers with high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.
2.What pre-sales services does Chitherm provide?
We offer timely consultation services to help customers select the most suitable products, along with highly customizable solutions to meet your specific requirements.
3.What are Chitherm's core strengths?
As a high-tech enterprise integrating R&D, manufacturing, and sales, Chitherm possesses patented technologies and core resources to deliver superior solutions.
