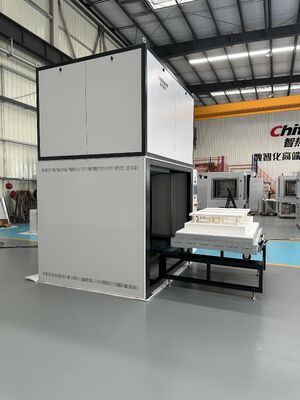

Model BF390-14 High-Temperature Bell Furnace
1. Equipment Name & Model: Model BF390-14 High-Temperature Bell Furnace
2. Technical Specifications & Basic Configuration
2.1 Rated Temperature: 1300℃
2.2 Maximum Temperature: 1400℃
2.3 Effective Chamber Dimension: 990mm×600mm×660mm (W×H×D)
2.4 Size of Setter Plate: 330×330mm (6 stacks)
2.5 Sagger Specification: Φ100×70mm (to be supplied by customer)
2.6 Equipment Capacity: 9 saggers per setter plate, 54 saggers per layer, total 8 layers, i.e. 432 saggers per batch
2.7 Max. Heating Power: 80kW
2.8 Number of Temperature Zones: 1
2.9 Heating Element: Silicon Carbide Rod (SiC Rod)
2.10 Furnace Temperature Uniformity: ±5℃ (no-load test, constant temperature at 1300℃ platform for 2 hours)
2.11 Temperature Control Accuracy: ±1℃ (holding at high-temperature platform)
2.12 Program Control: SCR control module

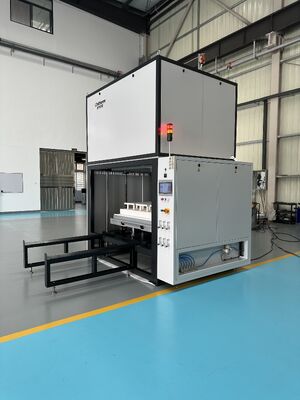

2.13 Lifting Method: Screw drive lifting system
2.14 Thermocouple Type: Type S
2.15 Temperature Control Mode: Imported intelligent temperature controller with PID auto-tuning function
2.16 Heating Rate: 0.5~5.0℃/min
2.17 Sintering Atmosphere: Air

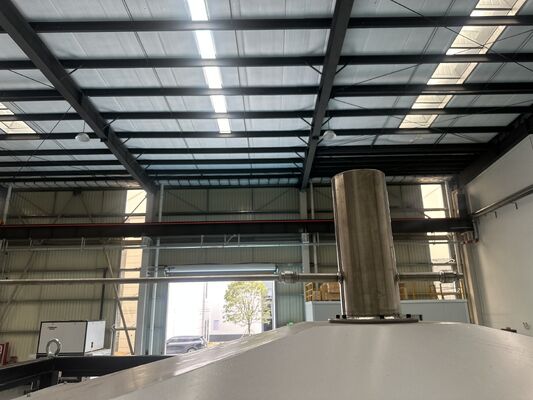

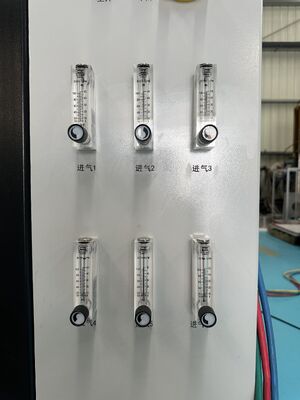

2.18 Exhaust System: Exhaust port arranged on the top for waste gas discharge; the valve on exhaust pipe can automatically adjust opening degree.
2.19 Alarm & Protection: Acousto-optic alarm and protection functions for over-temperature, motor overload, over-travel and other faults.
2.20 Surface Temperature Rise: ≤40℃
2.21 Overall Reference Dimension: 2670mm×3250mm×3000mm (W×H×D), excluding exhaust pipe
2.22 Equipment Weight: Approx. 3500kg 2.23 Equipment Color: Light Grey
Temperature Alarm System
It is equipped with temperature upper deviation alarm and over-temperature alarm, which can effectively ensure safe operation of the equipment. Meanwhile, in case of temperature deviation or over-temperature alarm, the temperature alarm system will cut off heating immediately and trigger an acousto-optic alarm signal.
Other Alarm Systems
In the event of other equipment faults, acousto-optic alarms will be activated promptly to remind operators to take timely intervention.
Other Low-Voltage Components
Circuit breakers, AC contactors, intermediate relays and other components adopt well-known domestic and international brands, making the control system safe, reliable and durable.
