Hwf160-10nh Vacuum Furnace Hydrogen Atmosphere Vacuum Muffle Furnace For Industrial Experiments

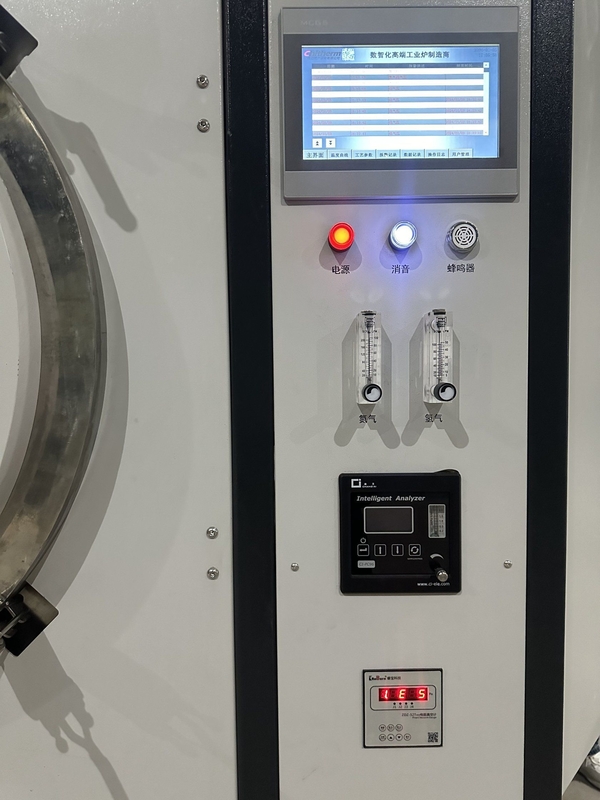

Large Image : Hwf160-10nh Vacuum Furnace Hydrogen Atmosphere Vacuum Muffle Furnace For Industrial Experiments

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HWF160-10NH

Contact Now Chat Now

Hwf160-10nh Vacuum Furnace Hydrogen Atmosphere Vacuum Muffle Furnace For Industrial Experiments

Description

Model NO.:	HWF160-10NH	Atmosphere:	Vacuum/Nitrogen/Hydrogen
Origin:	China	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Highlight:	hydrogen atmosphere vacuum muffle furnace , industrial vacuum furnace for experiments , Hwf160-10nh vacuum muffle furnace

HWF160-10NH Vacuum Furnace Hydrogen Atmosphere Vacuum Muffle Furnace For Industrial Experiments

Product Specifications

Model NO.	HWF160-10NH
Atmosphere	Vacuum/Nitrogen/Hydrogen
Origin	China
Customization	Available
Certification	ISO
Place Style	Vertical

Product Overview

This high-performance furnace is engineered for precision thermal processing of metal components and HTCC packaging, featuring versatile applications including:

Soldering and brazing operations
Decarburization and annealing processes
Quenching and hardening treatments
Thermal decomposition applications

Technical Specifications

Temperature Range	900°C (rated) / 1100°C (max)
Atmosphere Options	N₂/H₂ with humidity control
Chamber Dimensions	500×500×650mm (W×H×D)
Muffle Construction	SUS310S (φ750×900mm)
Heating System	Resistance wire heating plates
Temperature Control	±1°C stability with PID control
Cooling Method	Forced air cooling system
Vacuum Performance	≤10Pa ultimate vacuum
Safety Systems	Comprehensive audible/visual alarms

Key Features

Precision Thermal Control: 3-point monitoring with 20 programmable steps
Durable Construction: SUS310S muffle for high-temperature resistance
Efficient Operation: ≤25kW insulation power consumption
Safety Compliance: ≤40°C surface temperature during operation
Flexible Loading: Manual horizontal shelf system

Standard Configuration

Component	Specification	Qty
Main Furnace Unit	1650×1950×2000mm	1
Heating Elements	Resistance wire plates	1 set
Control System	Azbil/CHINO controller	1
PLC	Siemens/equivalent	1
Vacuum System	Complete assembly	1 set
Thermocouples	Type N	3
Safety Spares	SSR + sealing ring	1 each

Facility Requirements

Power Supply: >55kVA, 3-phase 380V
Gas Supply:
- N₂ (99.999% purity, 0.2-0.4MPa)
- H₂ (0.2-0.4MPa)
Installation Space: 7.5m² minimum area
Environmental Conditions: 0-40°C, ≤80% RH

Quality Assurance

Complete inspection certificates
Comprehensive technical documentation
Rigorous performance testing
Premium component selection

Optional Features

Customizable atmosphere controls
Advanced data logging systems
Enhanced cooling configurations
Specialized loading mechanisms
