Electric Holding Atmosphere Vacuum Muffle Furnace 380V 250C

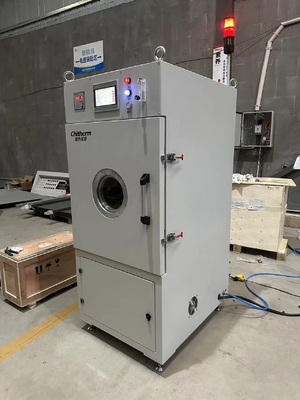

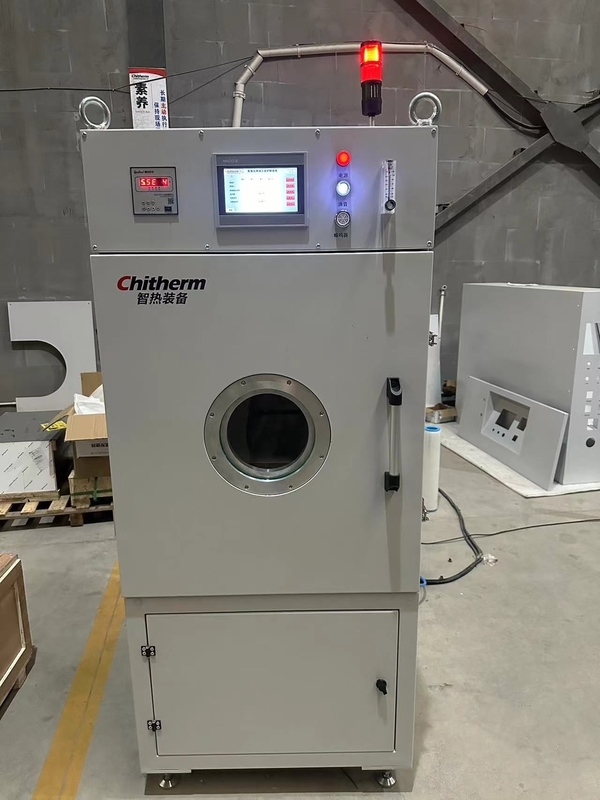

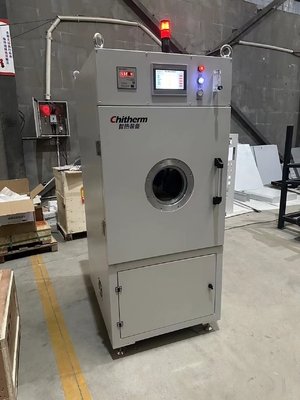

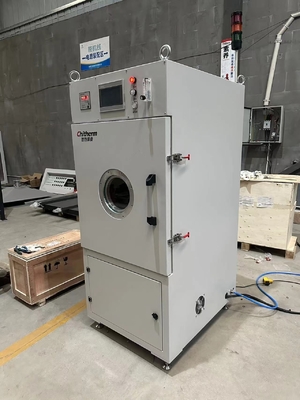

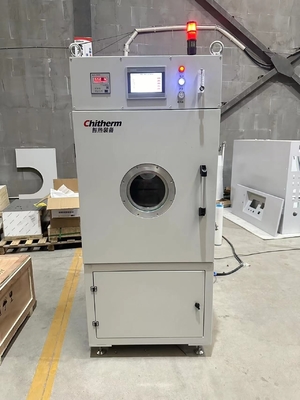

Large Image : Electric Holding Atmosphere Vacuum Muffle Furnace 380V 250C

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HPF190-03N

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now Chat Now

Electric Holding Atmosphere Vacuum Muffle Furnace 380V 250C

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Drying	Fuel:	Electric
Working Temperature:	Rt~200ºC	Maximum Temperature:	250ºC
Transport Package:	Wooden Packaging	Specification:	7551680950mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Customization:	Available	Certification:	ISO
Place Style:	Vertical
Highlight:	250C Vacuum Muffle Furnace , 380V Vacuum Muffle Furnace , 380V electric muffle

Electric Holding Atmosphere Vacuum Muffle Furnace 380V 250°C

Product Specifications

Attribute	Value
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Drying
Fuel	Electric
Working Temperature	RT~200°C
Maximum Temperature	250°C
Transport Package	Wooden Packaging
Specification	755×1680×950mm (W×H×D)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Supply Ability	50 Sets/Year
Customization	Available
Certification	ISO
Place Style	Vertical

Product Overview

The Chitherm HPF190-03N Vacuum Oven offers a maximum temperature of 190°C with customizable configurations to meet specific industrial requirements. Designed for precision drying, degumming, and curing of electronic components in vacuum or atmosphere environments.

Technical Specifications

Key Performance Indicators

Furnace Chamber Material: SUS304 Stainless Steel
Insulation Material: Ceramic Fiber
Furnace Chamber Size: 500×700×550mm (W×H×D)
Temperature Uniformity: ±5°C at 200°C constant temperature
Heating Element: Aluminum Heating Plate (4 pieces)
Maximum Heating Power: 4×1.5kW
Temperature Control Accuracy: ±1°C
Ultimate Vacuum Degree: ≤50Pa
Equipment Noise: ≤63dB

System Components

Furnace Body Design

Constructed with SUS304 plates featuring air inlet/outlet ports and vacuum detection. Four heating plates divide the chamber into three 150mm cavities with specialized vacuum sealing for optimal performance.

Control System

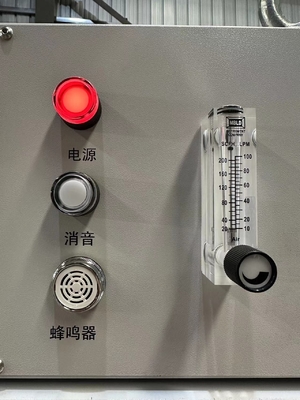

Features touch screen operation with PLC integration for precise temperature measurement and control using platinum resistance sensors. Includes comprehensive alarm systems for over-temperature, motor overload, and phase protection.

Standard Equipment Package

Component	Quantity
Main Kiln Furnace Unit	1 set
Heating Plates	4 pieces
Touch Screen Control	1 set
Resistance Vacuum Gauge	1 set
Technical Documentation	1 set

Installation Requirements

Power Supply: Three-phase 380V, 50Hz, capacity >8KVA
Floor Load: >200kg/m² with level surface
Gas Supply: High-purity nitrogen (99.999%) at 0.1-0.2MPa
Installation Space: Minimum 2×2×3m (D×W×H)
Environmental Conditions: 0-40°C, humidity ≤80%RH
