Nitrogen Air Vacuum Muffle Furnace Box Type Dryer Vertical Horizontal

640mm*520mm*500mm W*H*D Txl001-07 Nitrogen/Air Vacuum Furnace Box Furnace Dryer Testing Furnace for Industrial Applications



1.Overview:

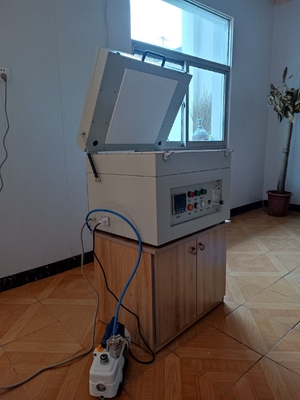

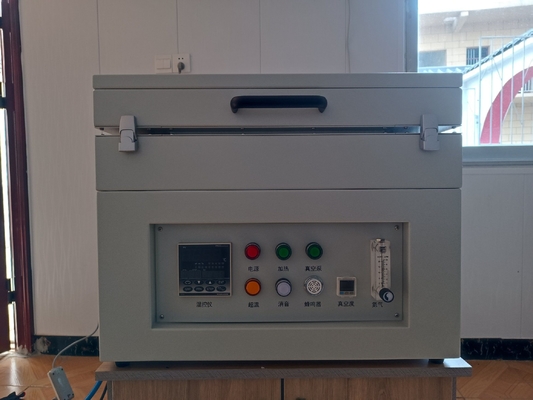

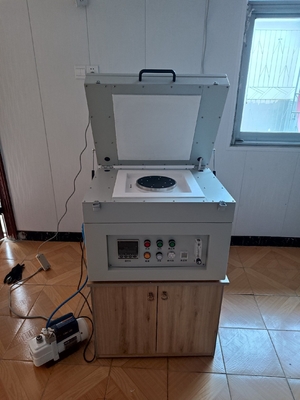

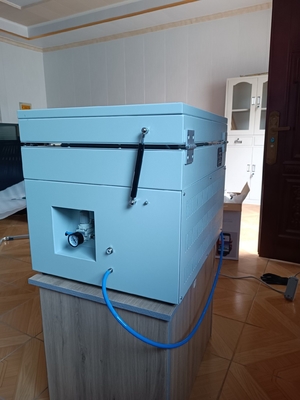

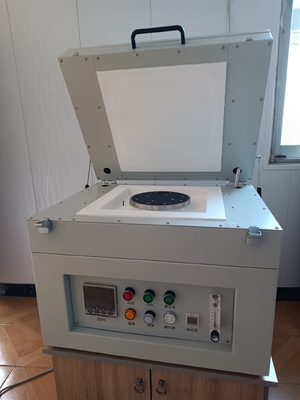

The TXL001-07 vacuum chamber furnace adopts FEC heating plates, offering excellent uniformity and straightforward operation. It is suitable for a variety of laboratory processes.


2.Parameter characteristics:
1.Product Model: TXL001 - 07 Type Vacuum Box Furnace
2.Operating Temperature: 600°C
3.Maximum Test Temperature: 700°C
4.Effective Size of Furnace Cavity: 300×30×300 (W×H×D)
5.Furnace Cavity Material: Alumina Fiber Products
6.Heating Element: FEC Heating Plate
7.Temperature Control Stability: ±1
8.Temperature Uniformity in Furnace Cavity: ±5°C
9.Number of Temperature Control Sections: 4×10 Sections
10.Number of Temperature Control Points: Single Point
11.Alarm and Protection: Over-temperature, Broken Thermocouple Audio-visual Alarm
12.Surface Temperature Rise: <35°C
13.Maximum Heating Power: 3kW
14.Power Supply Requirements: AC220V, 50Hz
15.Equipment Weight: 65Kg
16.Installation Dimensions: 640×520×500mm (W×H×D)

3. Equipment Normal Operating Conditions

• This equipment must be installed indoors, with an ambient temperature ranging from -10°C to 45°C. It should be installed in a place where there are no combustible gases, corrosive gases, or steam.
• The equipment shall occupy an area of not less than 1 square meter. The working room shall have a length of not less than 1 meter, a width of not less than 1 meter, and a height of not less than 2 meters. The foundation shall be solid and level. The total weight of the furnace is approximately 65 kg.
• The power supply for this furnace must be AC220 ± 10% V, 50 ± 2% Hz.
• The equipment is equipped with a "16A" type three-pin plug connection wire. A corresponding three-pin socket must be provided on site, and the socket must be reliably grounded.
