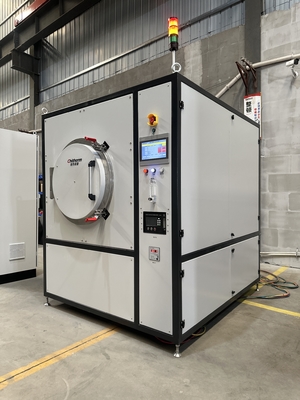

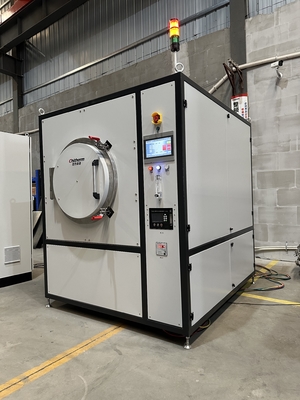

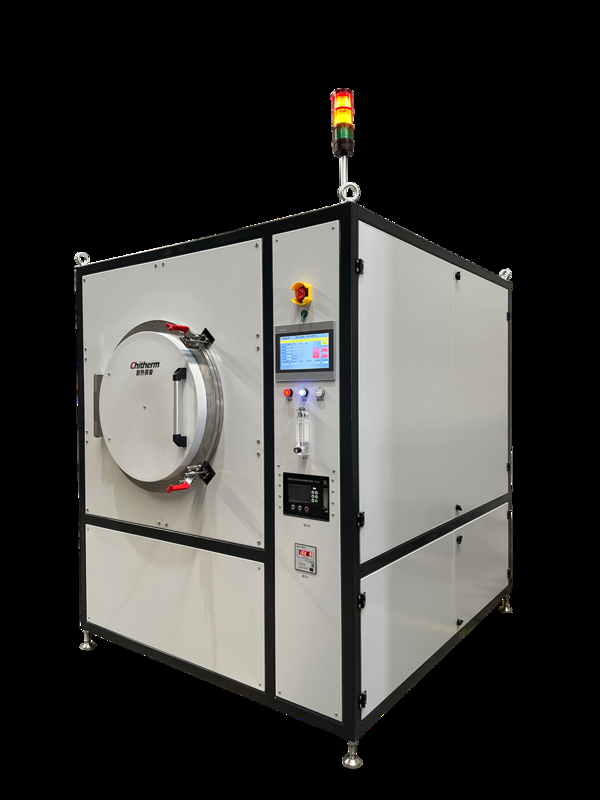

HWF80-11Ar Sealed Chamber Atmosphere Furnace 1100°C for Ceramics

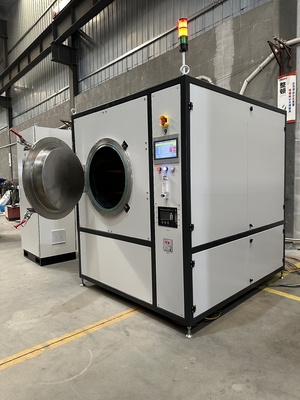

Large Image : HWF80-11Ar Sealed Chamber Atmosphere Furnace 1100°C for Ceramics

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HWF80 - 11Ar

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Delivery Time:	90 work days
Payment Terms:	L/C,T/T

Contact Now Chat Now

HWF80-11Ar Sealed Chamber Atmosphere Furnace 1100°C for Ceramics

Description

Highlight:

1100°C sealed chamber furnace

ceramic sintering atmosphere furnace

high temperature box furnace with warranty

HWF80-11Ar Sealed Chamber Atmosphere Furnace 1100°C for Ceramic Sintering

Basic Information

Model No.	HWF80-11Ar
Type	Electric Holding Furnace
Usage	Ceramic Sintering
Fuel	Electric
Atmosphere	Argon or Air
Effective Chamber Dimensions	400×400×500mm (W×H×D)
Maximum Temperature	1100°C
Maximum Heating Power	48kW
Idle Furnace Insulation Power	≤20kW
Temperature Control Accuracy	±1°C
Thermocouple Type	N-Type
Transport Package	Wooden Packaging
Specification	1500×1900×1800mm (W×H×D)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Production Capacity	50 Sets/Year

Product Description

The HWF80-11Ar Sealed Chamber Atmosphere Furnace is designed for ceramic sintering applications, featuring precise temperature control and versatile atmosphere options.

Equipment Composition

The system includes:

Outer frame
Heating furnace chamber
Vacuum tank
Sealing door

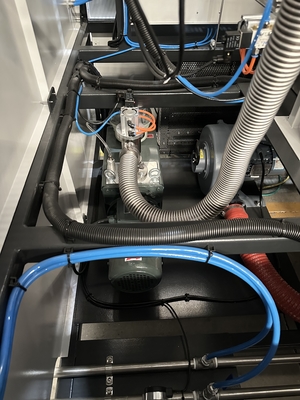

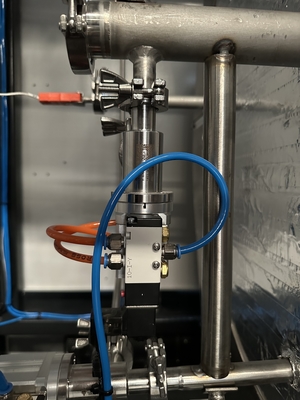

Vacuum system
Atmosphere system
Control system

Technical Specifications

Temperature Parameters

Operating Temperature: 1000°C
Maximum Temperature: 1100°C
Temperature Control Stability: ±1°C with PID auto-tuning
Temperature Uniformity: ±5°C (tested at 1000°C)
Maximum Heating Rate: 10°C/min

Structural Parameters

Tank Material: Inconel601

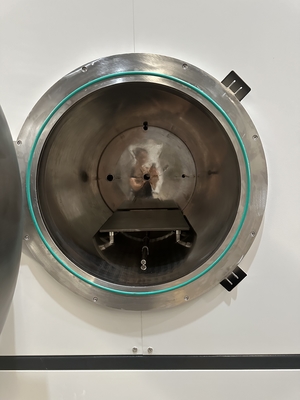

Tank Dimensions: Φ630×900mm (d×D)
Effective Dimensions: 400×400×500mm (W×H×D)
Loading Capacity: ≥40kg with 2 worktables
Heating Elements: FEC ceramic fiber heaters (≥10,000h lifespan)

Atmosphere and Vacuum Parameters

Sintering Atmosphere: Argon or air
Oxygen Content: Better than 10ppm
Oxygen Monitoring: Micro-oxygen analyzer included
Ultimate Vacuum: ≤100Pa (pumping time ≤10min)

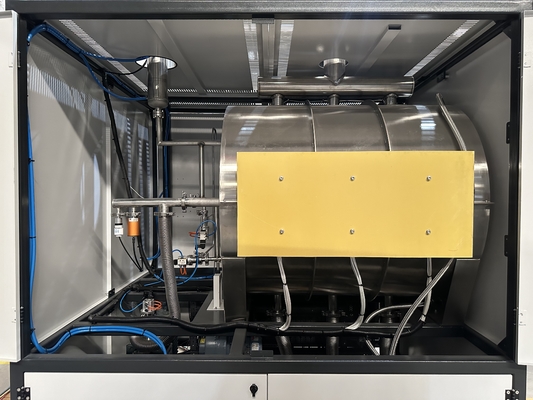

Product Images

Delivery List

Item	Note	Qty.
Basic Components	Furnace	1 Unit
Inspection Certificate	Certificate of major outsourced components	1 Set
Technical Documents	Instructions, technical documents	1 Set
Key Components	Heating Element	1 Set
Vacuum System		1 Unit
Temperature Control Module		1 Unit
Oxygen Analyzer	Nanoaonai	1 Unit
Touch Screen		1 Unit
Spare Parts	SSR	1 PC
