HWF80-11Ar Vacuum Muffle Furnace 1100°C for Ceramic Sintering

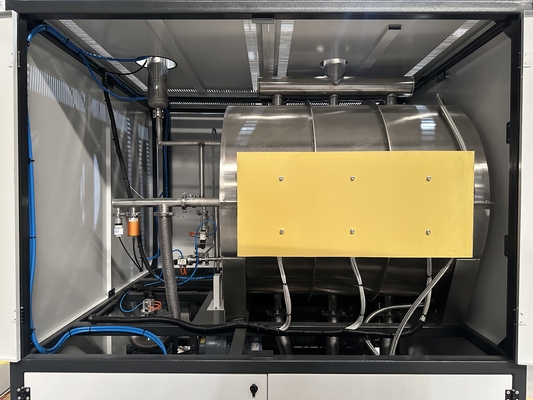

Large Image : HWF80-11Ar Vacuum Muffle Furnace 1100°C for Ceramic Sintering

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HWF80 - 11Ar

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Delivery Time:	90 work days
Payment Terms:	L/C,T/T

Contact Now Chat Now

HWF80-11Ar Vacuum Muffle Furnace 1100°C for Ceramic Sintering

Description

Highlight:

1100°C vacuum muffle furnace

ceramic sintering muffle furnace

HWF80-11Ar vacuum furnace

HWF80-11AR High-Performance Vacuum Muffle Furnace

Basic Specifications

Model Number	HWF80-11Ar
Type	Electric Holding Furnace
Application	Ceramic Sintering
Atmosphere	Argon or Air
Effective Chamber Dimensions	400×400×500mm (W×H×D)
Maximum Temperature	1100°C
Temperature Control Accuracy	±1°C

Technical Parameters

Temperature control stability: ±1°C with PID parameter self-tuning
Temperature uniformity: ±5°C at 1000°C (1 hour empty furnace test)
Maximum heating rate: 10°C/min
3-point temperature control with N-type thermocouples
Tank material: Inconel601 with 400×400×500mm working area
Heating elements: FEC ceramic fiber heaters (life ≥10,000 hours)
Maximum heating power: 48kW (idle furnace insulation ≤20kW)
30 programmable steps with argon or air atmosphere
Oxygen monitoring with microoxygen analyzer (10ppm sensitivity)
Vacuum capability: ≤100Pa (achieved in ≤10 minutes)
Forced cooling system (≥2°C/min below 500°C)

Equipment Construction

Comprehensive system includes:

Outer frame and heating furnace chamber
Vacuum tank with sealing door
Vacuum and atmosphere control systems
Advanced temperature control system
Safety alarms for over-temperature, low pressure, and vacuum conditions

Physical Specifications

External Dimensions	1500×1900×1800mm (W×H×D)
Weight	Approx. 1000kg
Surface Temperature	≤35°C during operation
Color	Light grey

Standard Delivery Includes

Component	Quantity
Furnace Unit	1
Heating Elements	1 Set
Vacuum System	1 Unit
Temperature Control Module	1 Unit
Oxygen Analyzer	1 Unit
Touch Screen Interface	1 Unit
Technical Documentation	1 Set

Operating Conditions

Temperature range: -10 to +50°C
Humidity: 10-95% RH (35°C max at 95% RH)
Pressure: 90-105 kPa

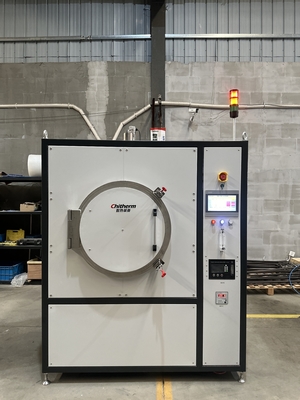

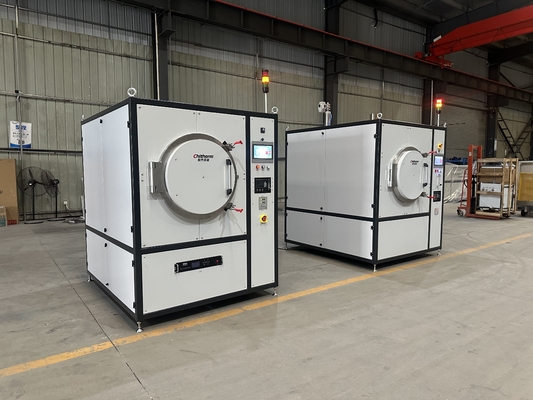

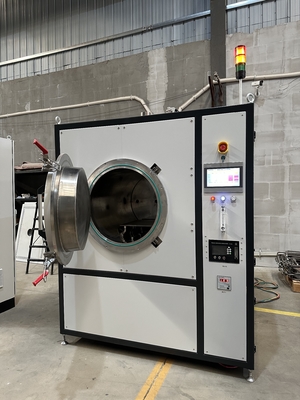

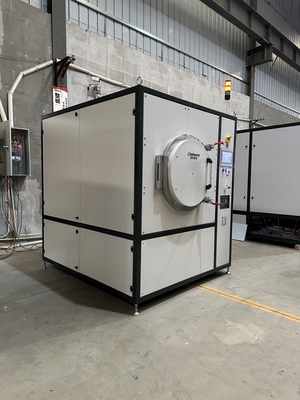

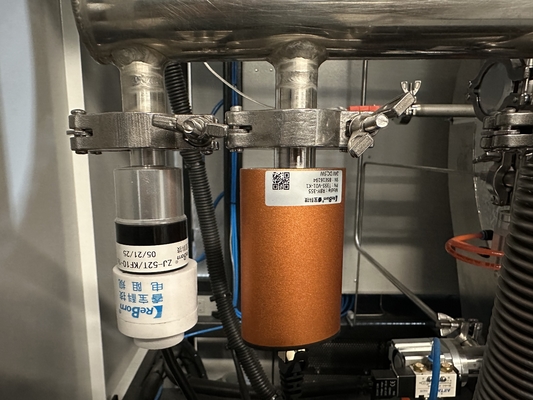

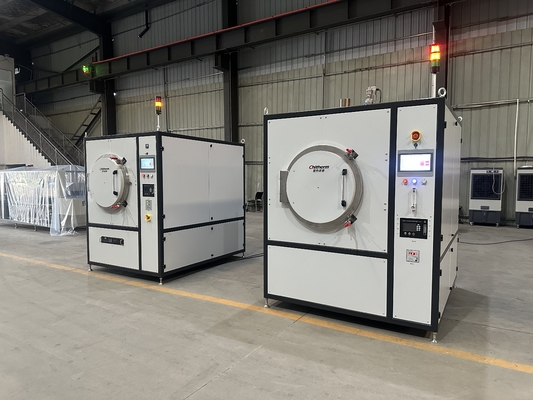

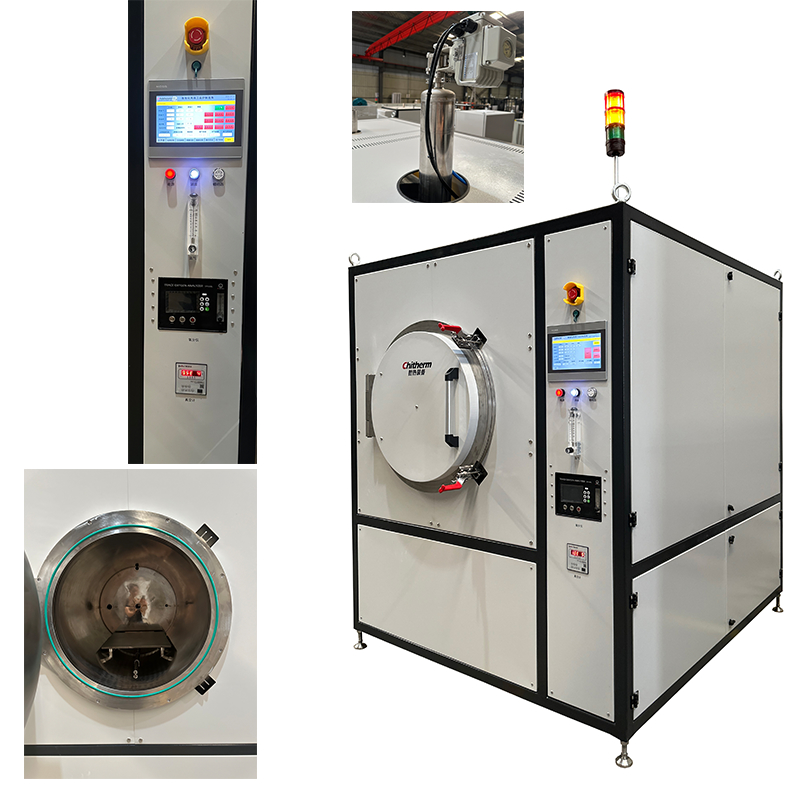

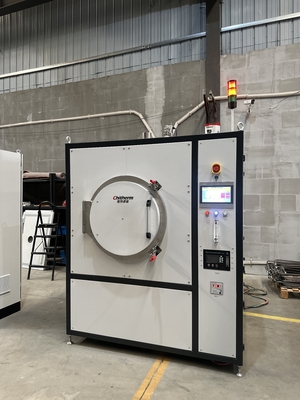

Product Images

Certifications

Manufacturer Information

Hefei Chitherm Equipment Co., Ltd. specializes in R&D and manufacturing of industrial and laboratory furnaces for advanced ceramics, electronic components, powder metallurgy, and new energy applications. Our product range includes:

Bell furnaces and box furnaces
Vacuum and tube furnaces
Mesh belt and pusher furnaces
Specialized solutions for thermal treatment processes

Frequently Asked Questions

What products does Chitherm offer?

We provide high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, and specialized industrial heating solutions.

What pre-sales services does Chitherm provide?

We offer expert consultation and fully customizable solutions to meet specific thermal processing requirements.

What are Chitherm's core strengths?

As a high-tech manufacturer, we combine patented technologies with extensive experience to deliver superior furnace solutions for advanced material processing.
