Vacuum Muffle Furnace HWF160-10NH 8514101000 HS Code Vertical Place Style

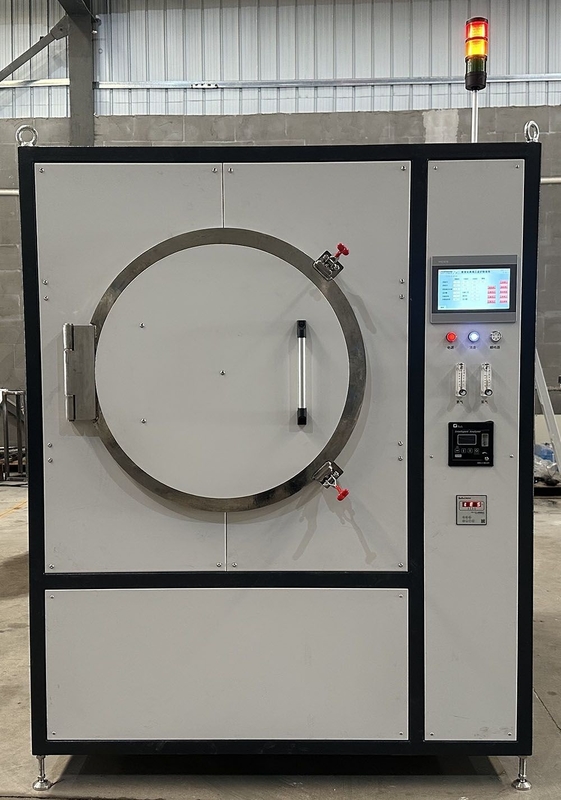

Large Image : Vacuum Muffle Furnace HWF160-10NH 8514101000 HS Code Vertical Place Style

Product Details:

Contact Now Chat Now

Vacuum Muffle Furnace HWF160-10NH 8514101000 HS Code Vertical Place Style

Description

Model NO.:	HWF160-10NH	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Sintering
Fuel:	Electric	Atmosphere:	Vacuum/Nitrogen/Hydrogen
Effective Chamber Dimensions:	500500650mm(WHD)	Max Temp:	1100ºC
Refund Policy:	Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.
Highlight:	HWF160-10NH Vacuum Muffle Furnace , 8514101000 HS Code Vacuum Muffle Furnace , Vertical Place Style Vacuum Muffle Furnace

Vacuum Muffle Furnace HWF160-10NH

Product Specifications

Attribute	Value
Model NO.	HWF160-10NH
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Sintering
Fuel	Electric
Atmosphere	Vacuum/Nitrogen/Hydrogen
Effective Chamber Dimensions	500500650mm(WHD)
Max Temp	1100°C
Refund policy	Claim a refund if your order doesn't ship, is missing, or arrives with product issues.

Applications

This furnace is designed for soldering process of metal parts and HTCC package, and can also be used for decarburization, annealing, quenching, scorching, hardening, and thermal decomposition processes.

Technical Specifications

Rated Temp: 900ºC
Max Temp: 1100ºC
Atmosphere: N2, H2, with humidification
Oxygen Content: Measured by O2 content analyzer
Muffle Material: SUS 310S
Muffle Dimensions: φ750mm×900mm(d×D)
Effective Chamber Dimensions: 500×500×650mm(W×H×D)
Loading Method: Manual, through horizontal guideway shelves
Heating Method: Resistance wire pre-built heating plate
Cooling Method: Air cooling with blower
Temp. Control Stability: ± 1ºC(controller with P.I.D function)
Profile Steps: Default 20 steps
Temp. Uniformity: ± 5ºC
Thermcouple: Type K
Temp Control: 3 Points
Temp. Measurement: 1 Point
Max. Heating Power: 40kW
Typical Insulation Power: ≤ 25kW
Heating Speed: ≤ 5ºC/min
Furnace Surface Temperature: ≤ 40ºC
Max Vacuum Value: ≤ 10Pa
Exhaust System: 1 exhaust port on the top with H2 igniter
Alarm System: audible and visual alarm in case of over temp, thermcouple broken, low air pressure, low water pressure, substandard vacuum level, etc
Weight: 1500kg
Appearance Colour: Light Grey
External Dimensions: 1650mm×1950mm×2000mm (W×H×D)

Product Images

Delivery List

Item	Note	Qty.
Basic Components	Furnace	1 SET
Inspection Certificate	Certificate of major outsourced components	1 SET
Technical Documents	Instructions, technical documents of the major outsourced parts, etc	1 SET
Key Components	Heating Element	1 SET
Vacuum System		1 SET
Touch Screen		1 SET
Temperature Controller	Azbil, CHINO or equivalent brand	1 SET
Thermocouple	Type N	3 PCs
PLC	SIEMENS or equivalent brand	1 SET
Spare Parts	SSR	1 PC
Sealing ring		1 PC

Facility Requirements

Environmental Conditions: temp.: 0~40ºC, humidity ≤ 80%RH, no corrosive gas, no strong airflow disturbance
N2 Conditions: 99.999% purity, working pressure: 0.2-0.4MPa, Max gas consumption 2-6 m3/h
H2 Conditions: working pressure: 0.2-0.4MPa, Max gas consumption 1-3m3/h
Compressed Air Condition: dry, clean, oil-free, working pressure: 0.4-0.8MPa
Water Conditions: clean, no corrosive water, working pressure 0.1-0.3MPa, 3-9L/min
Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 15m3/h
Ground Requirements: horizontal, no obvious vibration, load-bearing> 500 kg/m2
Power Condition(TBD): capacity > 55kVA, 3-phases 5-lines, voltage 220/380V, frequency 50Hz
Installation Site: 3000mm×2500mm×3000mm(D×W×H), with an installation area greater than 7.5m2
