Ceramic Sintering Inert Furnace Atmosphere In Heat Treatment Box Type

Large Image : Ceramic Sintering Inert Furnace Atmosphere In Heat Treatment Box Type

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF50-14

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now Chat Now

Ceramic Sintering Inert Furnace Atmosphere In Heat Treatment Box Type

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Sintering	Fuel:	Electric
Atmosphere:	Air	Effective Chamber Dimensions:	300200550mm(WDH)
Transport Package:	Wooden Packaging	Specification:	115019701300mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Production Capacity:	50 Sets/Year
Highlight:	Ceramic Sintering inert furnace , Heat Treatment inert furnace , Sintering furnace atmosphere in heat treatment

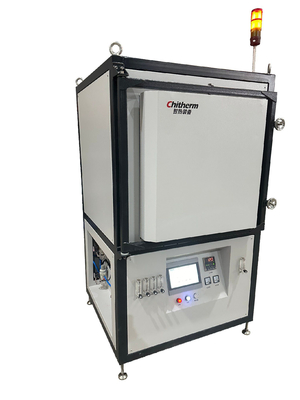

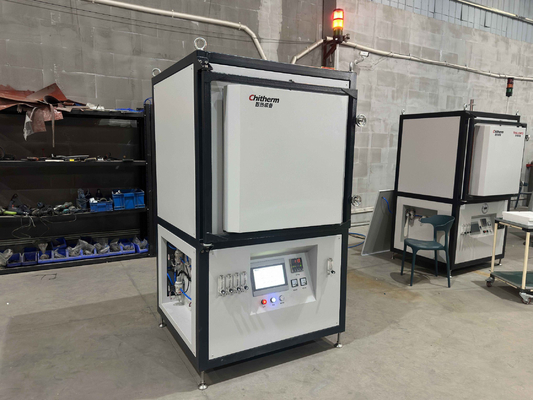

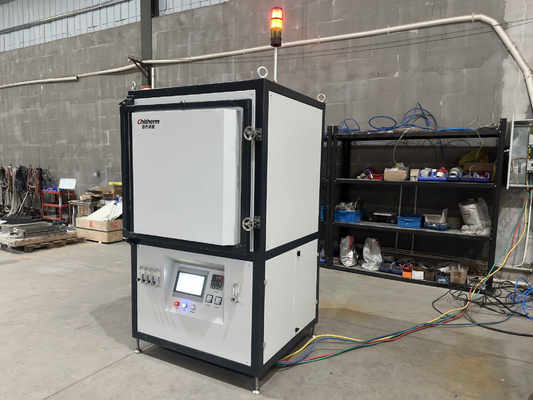

Ceramic Sintering Inert Furnace Atmosphere In Heat Treatment Box Type

Product Overview

The Ceramic Sintering Chitherm Hbf50-14 Box Furnace is designed for high-temperature processing of electronic ceramics, magnetic materials, and similar components with precise temperature control and uniform heating.

Technical Specifications

Attribute	Value
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Sintering
Fuel	Electric
Atmosphere	Air
Effective Chamber Dimensions	300×200×550mm (W×D×H)
Transport Package	Wooden Packaging
Specification	1150×1970×1300mm (W×H×D)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Production Capacity	50 Sets/Year

Key Features

Nominal working temperature: 1300ºC (max 1400ºC)

Temperature uniformity: ±5ºC at 1300ºC

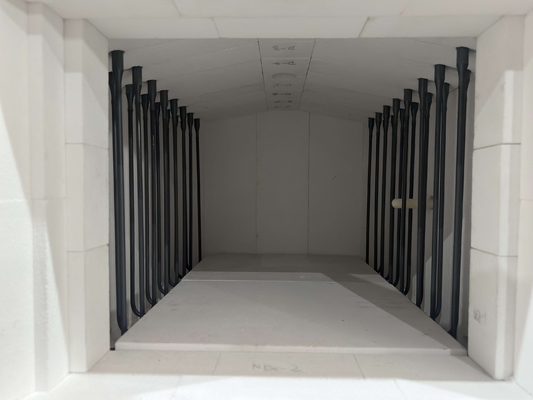

SiC heating rods positioned above and below chamber

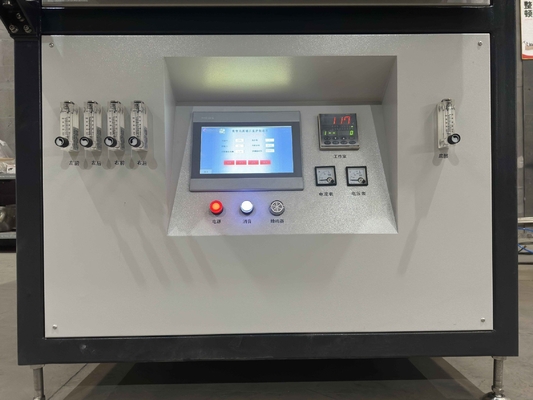

Advanced temperature control with P.I.D function

Comprehensive alarm system for safety monitoring

Low surface temperature operation (≤40ºC)

Delivery Contents

Item	Note	Quantity
Basic Components	Furnace	1 SET
Inspection Certificate	Certificate of major outsourced components	1 SET
Technical Documents	Instructions, technical documents	1 SET
Key Components	Heating Element (SiC Rods)	1 SET
Touch Screen		1 SET
Temperature Controller	SHIMADEN, CHINO or equivalent	1 SET
Thermocouple	Type S	1 PC
PLC	SIEMENS or equivalent	1 SET
Spare Parts	Heating Element (SiC Rod)	1 PC

Facility Requirements

Environment: 0-40ºC, ≤80%RH, no corrosive gas

Compressed air: 0.2-0.4MPa, 3-6m³/h consumption

Ventilation: Minimum 10 m³/h pumping capacity

Floor: Horizontal, >600 Kg/m² load capacity

Power: >28kVA, 3-phase 220/380V, 50Hz

Installation space: Minimum 5m² area
