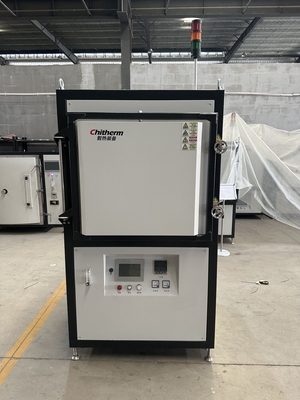

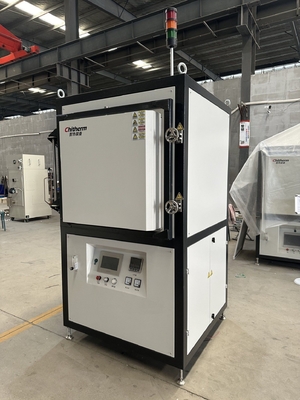

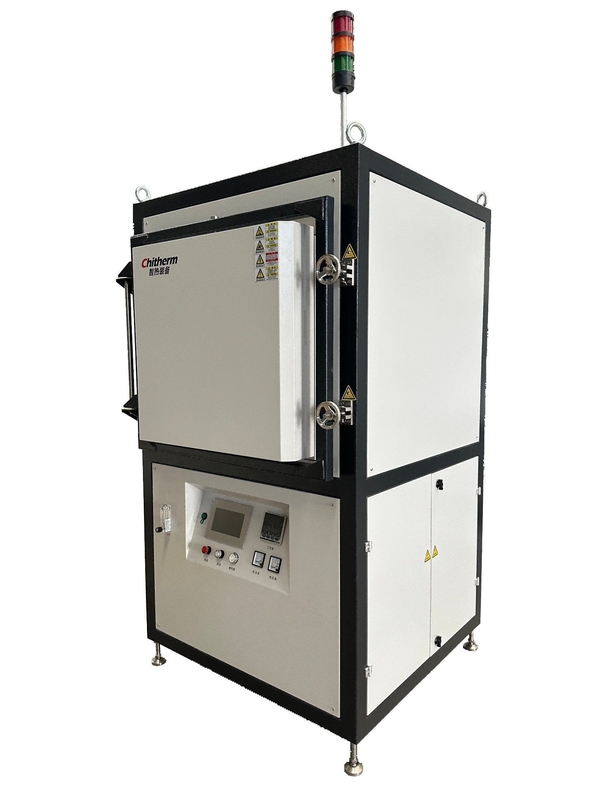

1700C Box Controlled Atmosphere Muffle Furnace Industrial Tempering Oven For Heat Treatment

Large Image : 1700C Box Controlled Atmosphere Muffle Furnace Industrial Tempering Oven For Heat Treatment

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF16-17

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

1700C Box Controlled Atmosphere Muffle Furnace Industrial Tempering Oven For Heat Treatment

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Sintering	Fuel:	Electric
Atmosphere:	Air	Effective Chamber Dimensions:	200200400mm(WHD)
Transport Package:	Wooden Packaging	Specification:	100018501100mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Production Capacity:	50 Sets/Year
Highlight:	1700C controlled atmosphere muffle furnace , Industrial controlled atmosphere muffle furnace , 1700C industrial tempering oven

50 Sets/Year Chitherm Hbf16-17 1700C High Temperature Box Furnace for Heat Treatment

1. Applications:

Mainly used for zirconia ceramics, alumina ceramics, ferrites, magnetic materials, electronic components, ceramic filters in high temperature binder burn off and sintering process.

2. Mainly Specifics:

Rated Temp.: 1600ºC
Max Temp.: 1700ºC

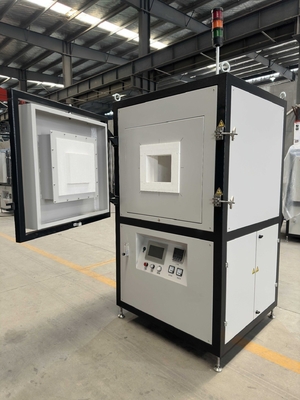

Effective Dimensions: 200 × 200 × 400mm(W×H×D)
Heating Method: U-shaped MoSi₂ Heating Elements
Process Atmosphere: Air
Temperature Control Stability: ±1ºC, with PID parameter self-tuning function
Temperature Uniformity: better than ±5ºC (insulation 2 hours at 1600ºC test)
Thermocouple: B Type
Temperature control points: 1
Temperature measurement points: 1 point
Number of Temp. Profiles: 19×19 (the temperature controller can save 19 profiles, each profile can be set 19 steps)
Exhaust: One exhaust port with auto cover
Alarm System: over temperature, thermocouple failure and other abnormal conditions will activate sound and light alarm protection, over temperature heating power will turn off automatically
Max Heating Power: 12kW
Insulation Power: ≤ 6kW
Heating Speed: ≤ 5ºC/min
Surface Temperature Rise: ≤ 35ºC
Weight: about 800kg
Furnace Dimensions: about 1000×1850×1100mm (W×H×D);
Appearance Color: light gray

3. Delivery List
	Item	Note	QTY
Basic Compositions	Furnace		1 PC
	Certificates of Inspection	Furnace and major purchased components	1 Set
	Technical Documents	Furnace specifications, technical documents of major purchased components, etc	1 Set
Key Parts	Heating Elements	MoSi₂	1 Set
	Thermocouple	THERMOWAY, B Type	1 PC

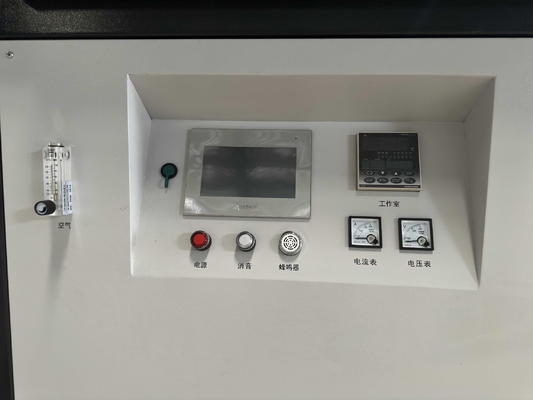

	Temperature Controller	Azbil/CHINO	1 Set
	Monitor	Proface touch screen	1 Set
Spares	Heating Elements	MoSi₂	1 PC

4. Facility Requirements
4.1 Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
4.2 Process air conditions: clean, dry, oil-free compressed air, pressure 0.2 - 0.4Mpa, gas consumption 2 - 6m³ /h.
4.3 Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 5m³ /h;
4.4 Ground requirements: level, no obvious vibration, bearing capacity > 500Kg/m².
4.5 Power conditions: capacity greater than 16kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
4.6 Installation site: 1800mm×2000mm×2000mm (W×H×D), installation area greater than 4m².
