1700c Atmosphere Box Furnace Tempering Oven For Steel Ceramic Sintering

Large Image : 1700c Atmosphere Box Furnace Tempering Oven For Steel Ceramic Sintering

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF52-17O

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now Chat Now

1700c Atmosphere Box Furnace Tempering Oven For Steel Ceramic Sintering

Description

Model NO.:	HBF52-17O	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Sintering
Fuel:	Electric	Atmosphere:	Air/Oxygen
Effective Chamber Dimensions:	350300500mm(WHD)	Transport Package:	Wooden Packaging
Specification:	162019601220mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Production Capacity:	50 Sets/Year
Highlight:	1700c Atmosphere Box Furnace , Tempering Atmosphere Box Furnace , Atmosphere tempering oven for steel

1700c Atmosphere Box Furnace Tempering Oven For Steel Ceramic Sintering

Product Specifications

Attribute	Value
Model NO.	HBF52-17O
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Sintering
Fuel	Electric
Atmosphere	Air/Oxygen
Effective Chamber Dimensions	350300500mm(WHD)
Transport Package	Wooden Packaging
Specification	162019601220mm(WHD)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Production Capacity	50 Sets/Year

Industrial Ceramic Sintering Solution

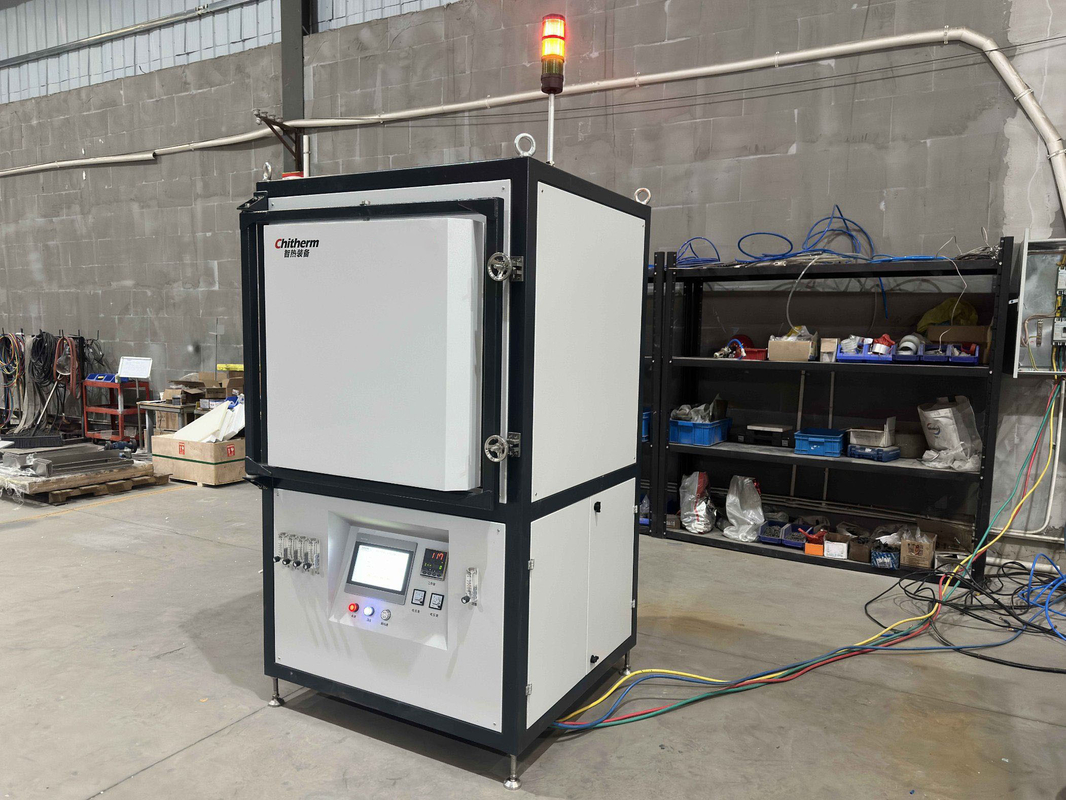

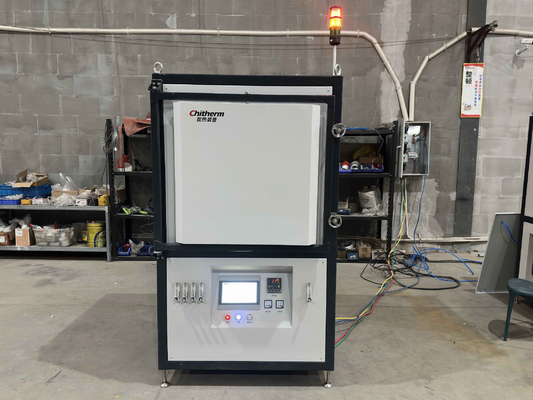

The Chitherm HBF52-17O 1700c Box-Type Furnace provides optimal performance for high-temperature ceramic sintering in industrial environments.

Primary Applications

Zirconia ceramics sintering
Alumina ceramics processing
Ferrites and magnetic materials production
Electronic components manufacturing
Ceramic filters high-temperature binder burn-off

Technical Specifications

Rated Temperature: 1650ºC

Maximum Temperature: 1700ºC

Effective Dimensions: 350 × 300 × 500mm (W×H×D)

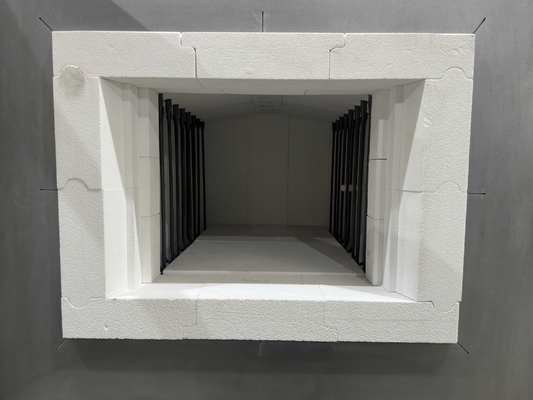

Heating Method: U-shaped MoSi2 Heating Elements

Process Atmosphere: Air/Oxygen

Temperature Control Stability: ±1ºC with PID parameter self-tuning

Temperature Uniformity: Better than ±5ºC (insulation 2 hours at 1650ºC test)

Thermocouple: B Type

Max Heating Power: 25kW

Insulation Power: ≤ 10kW

Heating Speed: RT~1200ºC≤5ºC/min, 1200~1700ºC≤2ºC/min

Surface Temperature Rise: ≤ 35ºC

Weight: About 900kg

Furnace Dimensions: About 1620×1960×1220mm (W×H×D)

Appearance Color: Light gray

Standard Delivery Contents

Item	Note	Quantity
Basic Compositions	Furnace	1 PC
Certificates of Inspection	Furnace and major purchased components	1 Set
Technical Documents	Furnace specifications, technical documents of major purchased components	1 Set
Key Parts - Heating Elements	MoSi2	1 Set
Key Parts - Thermocouple	THERMOWAY, B Type	1 PC
Key Parts - Temperature Controller	Azbil/CHINO	1 Set
Key Parts - Monitor	Proface touch screen	1 Set
Spares - Heating Elements	MoSi2	1 PC

Facility Requirements

Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong airflow disturbance

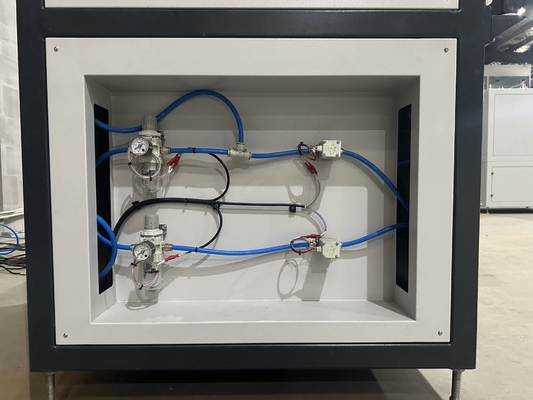

Process air conditions: Clean, dry, oil-free compressed air, pressure 0.2 - 0.4Mpa, gas consumption 2-6m³/h
Ventilation system: Non-contact access to user pumping system with capacity >10m³/h
Ground requirements: Level surface, no significant vibration, bearing capacity >300Kg/m²

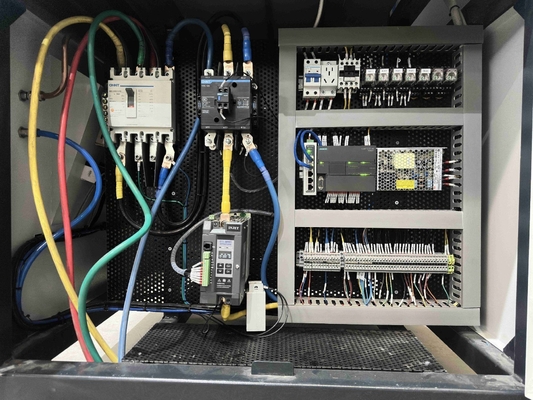

Power conditions: Capacity >34kVA, 3 phases 5 lines, voltage 220/380V, frequency 50Hz
Installation site: Minimum 2000mm×3000mm×1500mm (W×H×D), area >3m²
