Vertical High Temp. Box Furnace Hbf52-170 with Effective Chamber Dimensions of 300200550mm and Vertical Place Style

Large Image : Vertical High Temp. Box Furnace Hbf52-170 with Effective Chamber Dimensions of 300*200*550mm and Vertical Place Style

Product Details:

Place of Origin:	China
Brand Name:	Chitherm

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

Vertical High Temp. Box Furnace Hbf52-170 with Effective Chamber Dimensions of 300200550mm and Vertical Place Style

Description

Model NO.:	HBF52-170	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Fuel:	Electric
Atmosphere:	Air	Effective Chamber Dimensions:	300200550mm(WDH)
Transport Package:	Wooden Packaging	Specification:	115019701300mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Customization:	Available	Certification:	ISO
Place Style:	Vertical
Highlight:	vertical ceramic sintering furnace , vertical high temperature box furnace , industrial ceramic sintering furnace

1. Application:

This equipment is mainly designed for sintering process of Electronic Ceramics, Magnetic Materials and other relevant materials.

2. Technical Specification:

Nominal working Temp.: 1650ºC
Max Temp.: 1700ºC
Atmosphere: Air
Effective Chamber Dimensions: 300mm*200mm*550mm(W*H*D)
Max. Heating Power: 20kW
Loading Method: Corundum Mullite Setter

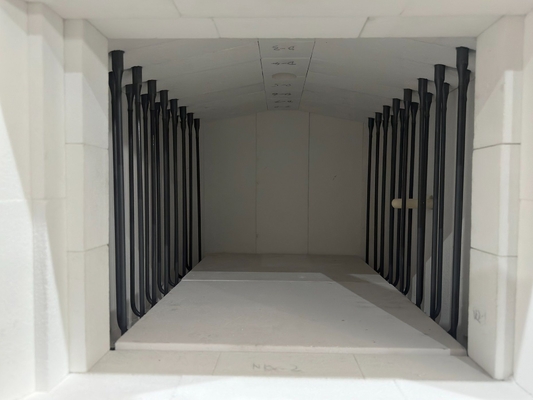

Heating Method: SiC Rods ( up and down of chamber)
Temp. Uniformity: ± 5ºC ( tested in 1 hour insulation at 1300ºC)
Thermcouple: Type S
Temperature Control: 1 Point (controller with P.I.D function)
Exhaust System: 1 exhaust port behind chamber with manual adjustment
Alarm System: audible and visual alarm in case of Over temp, thermcouple broken, low air pressure, etc
Furnace Surface Temperature ≤ 40ºC
External Dimensions: 1150mm*1970mm*1300mm(W*D*H)

3. Delivery List

	Item	Note	Qty.
Basic Components	Furnace		1 SET
	inspection certificate	Certificate of major outsourced components	1 SET
	Technical Documents	Instructions, technical documents of the major outsourced parts, etc	1 SET
Key Components	Heating Element	SiC Rods	1 SET
	Touch Screen		1 SET
	Temperature Controller	SHIMADEN, CHINO or equivalent brand	1 SET
	Thermocouple	Type S	1 PC
	PLC	SIEMENS or equivalent brand	1 SET
Spare Parts	Heating Element	SiC Rod	1 PC

4. Facility Requirements

Environmental Conditions: temperature: 0~40ºC, humidity ≤ 80%RH, no corrosive gas, no strong airflow disturbance;

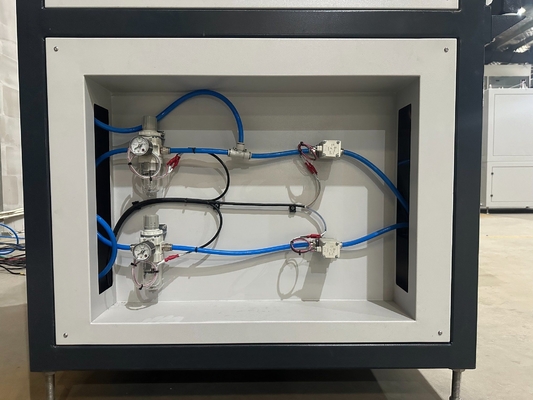

Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.2- 0.4MPa, gas consumption of 3 - 6m³/h;
Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 10 m³/h
Ground Requirements: horizontal, no obvious vibration, load-bearing> 600 Kg/m²;
Power Condition(TBD): capacity > 28kVA, 3-phases 5-lines, voltage 220/380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
Installation Site: 2500mm*2000mm*3000mm(D*W*H), with an installation area greater than 5m².

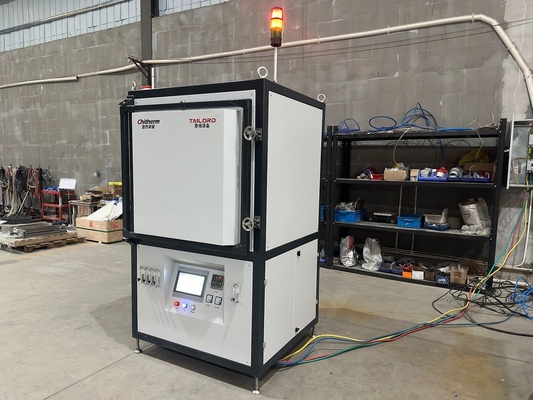

5.Picture Display
