Box Type Industrial Nitrogen Atmosphere Oven Sintering Furnace For Tempering

Large Image : Box Type Industrial Nitrogen Atmosphere Oven Sintering Furnace For Tempering

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF105-14

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

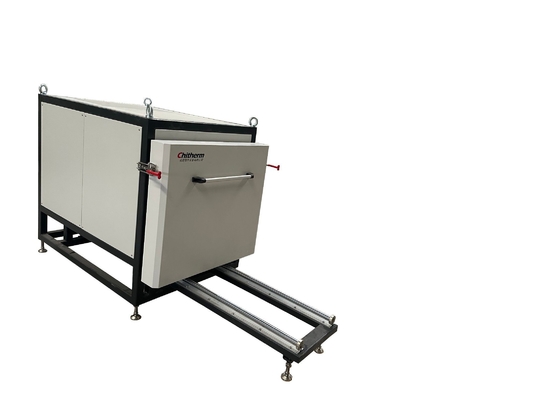

Box Type Industrial Nitrogen Atmosphere Oven Sintering Furnace For Tempering

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Steel Molding	Fuel:	Electric
Effective Chamber Dimensions:	400330800mm(WHD)	Setter Plate:	Corundum-Mullite
Transport Package:	Wooden Package	Specification:	8509001200mm (WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Customization:	Available	Certification:	ISO
Place Style:	Vertical
Highlight:	Box Type nitrogen atmosphere oven , Sintering nitrogen atmosphere oven , Nitrogen industrial tempering oven

Box-Type Hbf105-14 Sintering Furnace 850*900*1200mm for Your Customer Requirements

Technical Specifications and Basic Configuration

Rated Temperature: 1300°C;
Maximum Temperature: 1500°C;
Effective Chamber Dimensions: 400*330*800mm (W*H*D);
Loading System: Corundum Mullite Loading Plate;
Temperature Monitoring: Pre-installed thermocouple mounting holes and temperature observation ports;
Refractory Configuration:
- Primary lining: Polycrystalline Mullite modules
- Secondary insulation: Ceramic Fiber Board auxiliary thermal insulation
Overall Dimensions: 850*900*1200mm (W*H*D);
Exterior Finish: RAL 7035 (Light Gray).

Item	pecifications	Quantity	Notes
Kiln Main Unit	Primary heating system	1 set	Core equipment for thermal process
Setter Plate	Material: Corundum-Mullite	1 set	High-temperature resistant carrier
