20nm3/H Exhaust Electric Gas Furnace Cleaning Melting Screw Free OEM

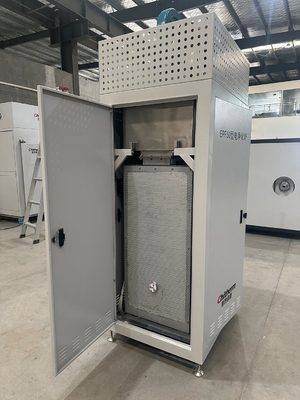

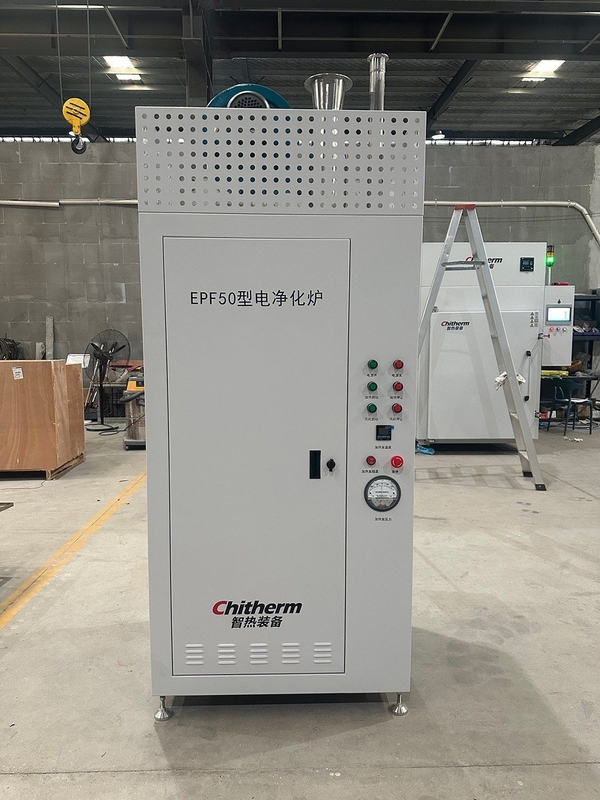

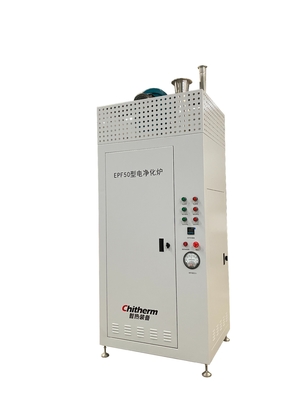

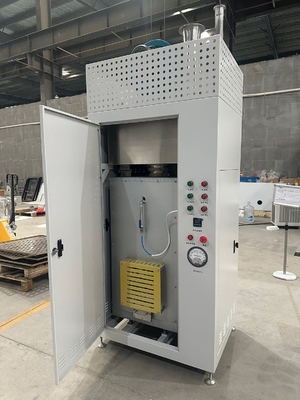

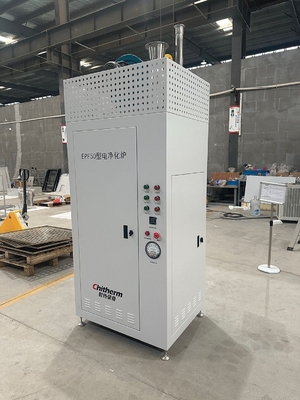

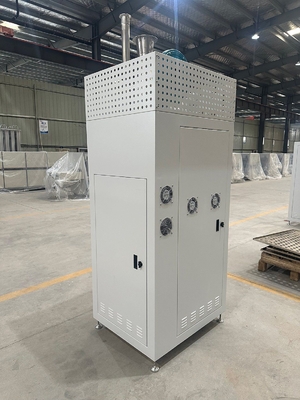

20nm3/H Processing Capability Exhaust Gas Cleaning Furnace Epf50-09 for Screw-free Melting Furnace

The waste gas treatment furnace uses electric heating to incinerate VOCs in the exhaust gas.

• Rated Temperature: 850ºC
• Combustion Method: Electric heating for combustion assistance
• Combustion Temperature: 750~850ºC
• Startup Power: 12kW
• Operating Power: 6kW (single unit, for reference only, actual value may vary)
• Reference Dimensions: 860mm × 1903mm × 700mm (Width × Height × Depth), excluding the fan
• Temperature Control: PID control method ensures stable combustion of the exhaust gas
• Pressure Sensor in Combustion Chamber: Reduces processing volume while ensuring degreasing, saving energy consumption

The system adopts a three-phase five-wire power supply method. It is required to ensure a three-phase voltage of 380V ± 5%, a power rating of 12KW, and provide a grounding terminal (≤10Ω). The operating environment for the electrical control cabinet should maintain a temperature between -20ºC and 40ºC, humidity <85%, and be free from harmful gases and electromagnetic interference.

This procedure applies to the treatment of sintering exhaust gases with a flow rate not exceeding 50 Nm³/h and an organic compound concentration of approximately 60 mg/m³. Prior to entering the electric purification furnace, the exhaust gas must not contain pollutants such as nitrogen oxides, sulfides, HCl, or other contaminants. This procedure covers the correct operation, maintenance, and troubleshooting methods for the electric purification furnace.
