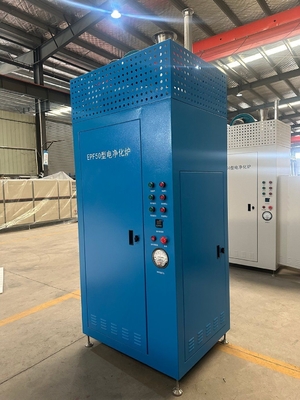

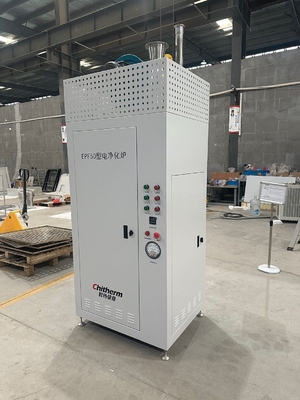

Melting Waste Gas Incinerator Purification Electric Heater Furnace 750C-850C

Electric Waste Gas Purification Furnace 750-850 ordm C Melting Furnace for Applications

Typical Applications
The waste gas treatment furnace uses electric heating to incinerate VOCs in the exhaust gas.

Parameters and Features:
1.Rated Temperature: 850ºC;
2.Combustion Method: Electric heating for combustion assistance;
3.Combustion Temperature: 750~850ºC;
4.Startup Power: 12kW;
5.Operating Power: 6kW (single unit, for reference only, actual value may vary);
6.Reference Dimensions: 860mm × 1903mm × 700mm (Width × Height × Depth), excluding the fan; specific dimensions subject to the final product.

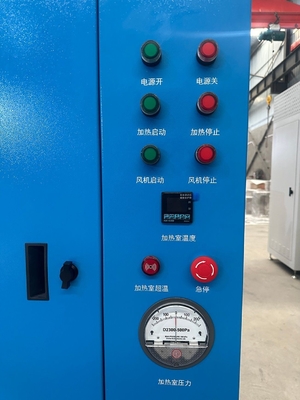

7.Temperature Control: PID control method ensures stable combustion of the exhaust gas;
8.Pressure Sensor in Combustion Chamber: Reduces processing volume while ensuring degreasing, saving energy consumption.
9.Thermocouple:K





Operating Environment and Requirements

1. This system is designed for treating sintering exhaust gases. The electric purification furnace can only begin sintering operations after the system has started and reached the preset temperature.
2. Ensure that the compressed air supply is stable and free from oil contamination.
3. The system adopts a three-phase five-wire power supply method. It is required to maintain a three-phase voltage of 380V ± 5% and provide a grounding terminal (≤10Ω). The operating environment for the electrical control cabinet should maintain a temperature between -20ºC and 40ºC, humidity <85%, and be free from harmful gases and electromagnetic interference.
4. Before the first system startup, check that all valves and pressure gauges are in the appropriate open or closed positions.
5. Verify that the power supply meets the required specifications.
