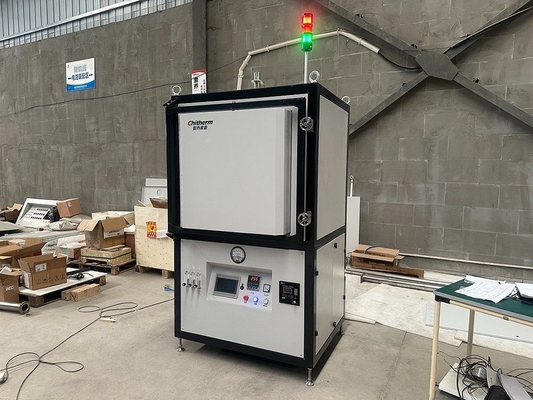

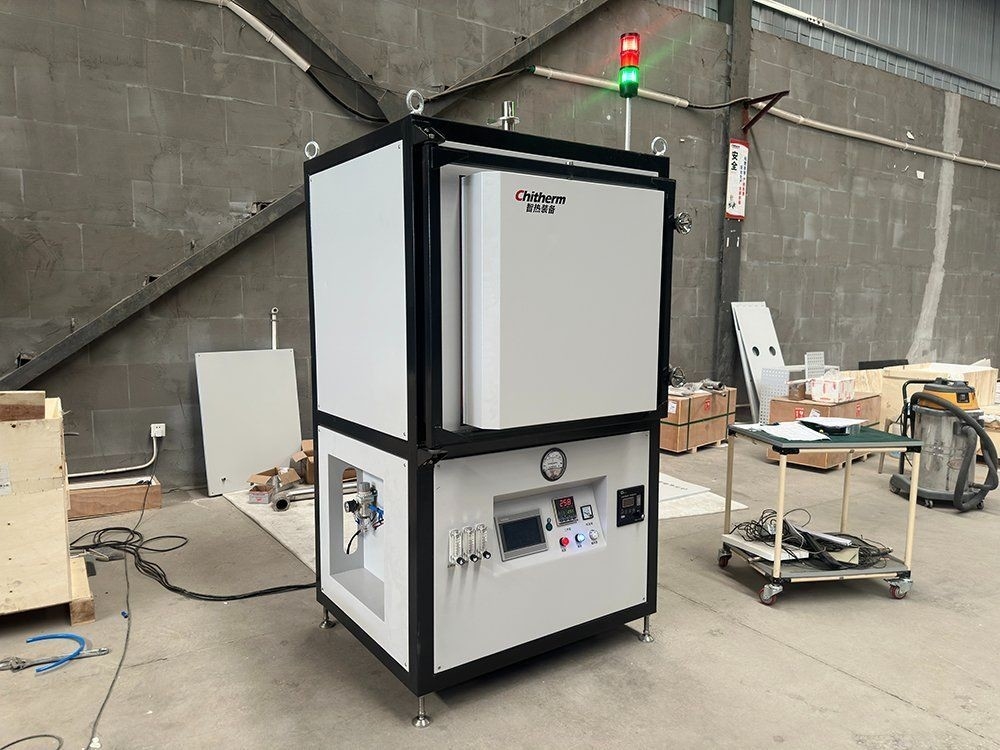

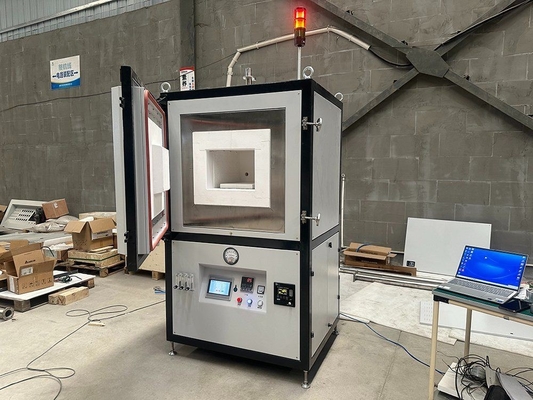

Medium Temperature Chamber Atmosphere Box Furnace Inert Gas Heat Treat Oven 12kW

Large Image : Medium Temperature Chamber Atmosphere Box Furnace Inert Gas Heat Treat Oven 12kW

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	MBF22 - 10N

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

Medium Temperature Chamber Atmosphere Box Furnace Inert Gas Heat Treat Oven 12kW

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Drying	Fuel:	Electric
Atmosphere:	Nitrogen	Effective Chamber Dimensions:	330* 200* 330mm(WHD)
Rated Temperature:	850°c	Maximum Temperature:	1000°c
Transport Package:	Wooden Packaging	Specification:	130019001160mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Customization:	Available	Certification:	ISO
Place Style:	Vertical
Highlight:	Chamber Atmosphere Box Furnace , inert gas Atmosphere Box Furnace , 12kW inert gas heat treat oven

Effective Chamber Dimensions 330* 200* 330mm W*H*D Chitherm Mbf22 10n Medium Temperature Atmosphere Chamber Furnace

1. Equipment Name and Model:
MBF22 - 10N Medium - temperature Atmosphere Chamber Furnace

2. Technical Indicators and Basic Configuration
2.1 Rated Temperature: 850°C;
2.2 Maximum Temperature: 1000°C;
2.3 Effective Size: 330mm × 200mm × 330mm (W × H × D);
2.4 Saggar Specification: 330mm × 100mm × 330mm (W × H × D);

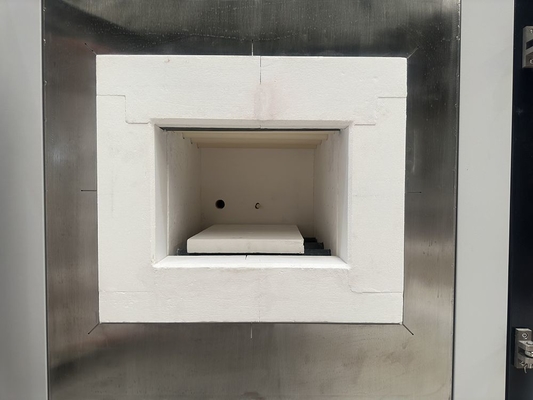

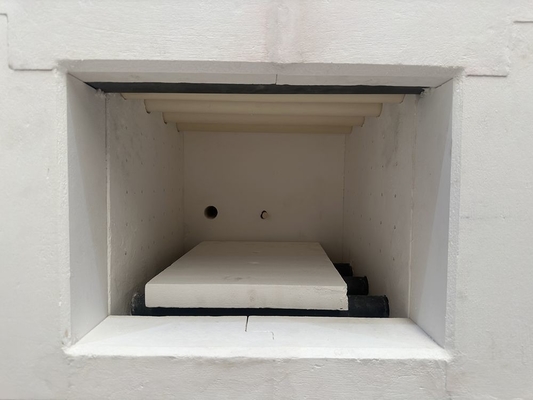

2.5 Loading Method: SiC roller rods support the saggars, which are placed in double - layer and double - column longitudinally;
2.6 Heating Element: Silicon carbide rods are inserted into ceramic tubes;
2.7 Thermocouple Type: N Graduation;
2.8 Number of Temperature Control Points: 1 point;

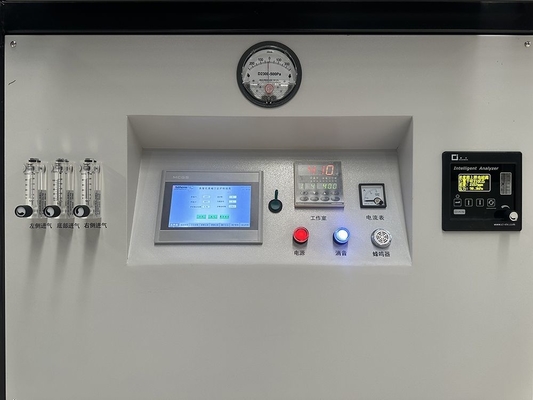

2.9 Temperature Control Method: Imported temperature controller with a temperature control accuracy of ±1°C and PID parameter self - tuning function;
2.10 Furnace Temperature Uniformity: ±3°C (tested in an empty furnace with saggars at a constant temperature of 850°C, with a temperature - measuring ring placed at the center of each saggar);
2.11 Sintering Atmosphere: Nitrogen;
2.12 Oxygen Content: Better than 20ppm + the oxygen content of the gas source;
2.13 Oxygen Detection: A micro - oxygen analyzer is configured to monitor the oxygen content in the furnace in real - time;
2.14 Pressure Detection: A differential pressure gauge displays the pressure inside the furnace in real - time;
2.15 Exhaust Method: An exhaust chimney is designed at the top of the furnace, and the exhaust volume can be manually adjusted;
2.16 Program Steps: 4 × 16 steps;
2.17 Maximum Heating Power: 12kW;
2.18 Heating Rate: ≤5°C/min;
2.19 Temperature Rise on the Furnace Body Surface: ≤40°C;
2.20 Alarm and Protection: Interlock between heating and furnace door opening/closing actions, sound and light alarms for over - temperature, thermocouple breakage, and low pressure;
2.21 Reference Dimensions of the Appearance: 1300mm × 1900mm × 1160mm (W × H × D, excluding the chimney). The specific dimensions are subject to the actual product.
3. General Technical Description

Figure 1 Schematic Diagram of the Equipment Structure

Table 1 Delivery List

Name	Main Content	Quantity
Basic Composition	Main Furnace Unit		1 set
	Inspection Certificate of Conformity	Certificates of Conformity for Each Main Outsourced Component	1 set
	Technical Documents	Instruction Manual, Random Technical Documents of Each Main Outsourced Part, etc.	1 set
Key Components	Silicon Carbide Rods Inserted in Ceramic Tubes		1 set
	Touch Screen		1 unit
	Temperature Controller	Brands Similar to Japan's Shima Denki, Azbil, etc.	1 unit
	Oxygen Analyzer		1 unit
Spare Parts	Silicon Carbide Rods		2 pieces
