-Made Industrial Furnaces Hwf160-10nh Vacuum Furnace for Ceramic Sintering Muffle Furnace 165019502000mm WHD

Large Image : -Made Industrial Furnaces Hwf160-10nh Vacuum Furnace for Ceramic Sintering Muffle Furnace 1650*1950*2000mm W*H*D

Product Details:

Contact Now

-Made Industrial Furnaces Hwf160-10nh Vacuum Furnace for Ceramic Sintering Muffle Furnace 165019502000mm WHD

Description

Model NO.:	HWF160-10NH	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Sintering
Fuel:	Electric	Atmosphere:	Vacuum/Nitrogen/Hydrogen
Effective Chamber Dimensions:	500500650mm(WHD)	Thermcouple:	K
Max Temp:	1100ºC	Transport Package:	Wooden Packaging
Specification:	165019502000mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Package Size:	166.00cm * 196.00cm * 201.00cm
Package Gross Weight:	1550.000kg	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Shipping Cost:	Contact The Supplier About Freight And Estimated Delivery Time.	:	Support Payments In USD
Secure Payments:	Every Payment You Make On Made-in-China.com Is Protected By The Platform.	Refund Policy:	Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.

Industrial Furnaces HWF160-10NH Vacuum Furnace for Ceramic Sintering Muffle Furnace 1650*1950*2000mm W*H*D

Product Overview

High-performance electric vacuum furnace designed for ceramic sintering and various industrial thermal processes. Features precise temperature control, multiple atmosphere options, and robust construction for reliable operation.

Key Specifications

Model Number

HWF160-10NH

Maximum Temperature

1100°C

Effective Chamber Size

500×500×650mm (W×H×D)

Atmosphere Options

Vacuum/Nitrogen/Hydrogen

Thermocouple Type

Power Requirement

55kVA, 3-phase

Certification

ISO

Customization

Available

Applications

This furnace is designed for soldering processes of metal parts and HTCC packages, with additional capabilities for:

Decarburization
Annealing
Quenching
Scorching
Hardening
Thermal decomposition

Technical Specifications

Parameter	Value
Rated Temperature	900ºC
Temperature Uniformity	±5ºC
Muffle Material	SUS 310S
Heating Method	Resistance wire pre-built heating plate
Cooling Method	Air cooling with blower
Temperature Control	3 Points (Azbil, CHINO or equivalent)
Max Heating Power	40kW
Max Vacuum Value	≤10Pa
Weight	1500kg

Delivery Contents

Item	Description	Quantity
Basic Components	Furnace	1 SET
Technical Documents	Instructions, technical documents	1 SET
Key Components	Heating Element, Vacuum System	1 SET
Control System	Touch Screen, PLC (SIEMENS or equivalent)	1 SET
Spare Parts	SSR, Sealing ring	1 PC each

Facility Requirements

Environment: 0-40ºC, ≤80%RH, no corrosive gas
N2: 99.999% purity, 0.2-0.4MPa working pressure
H2: 0.2-0.4MPa working pressure
Compressed Air: Dry, clean, oil-free, 0.4-0.8MPa
Water: Clean, non-corrosive, 0.1-0.3MPa
Installation Space: ≥7.5m² area
Power: 55kVA, 3-phase 5-wire, 220/380V, 50Hz

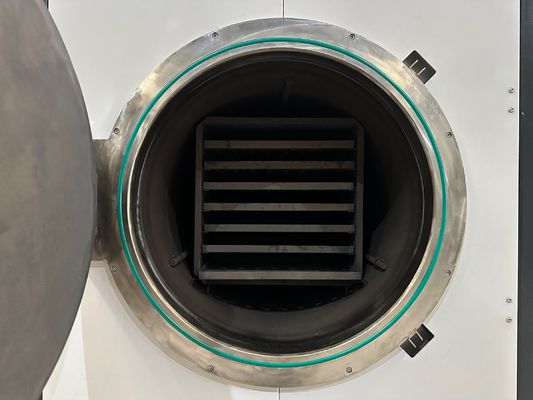

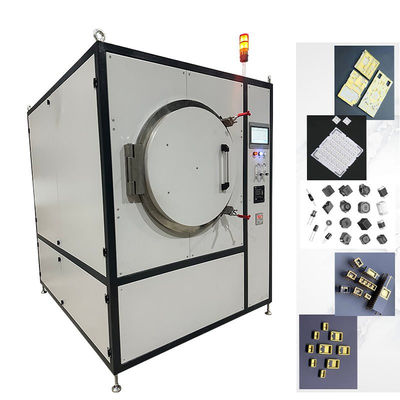

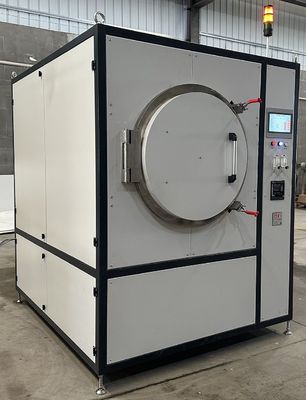

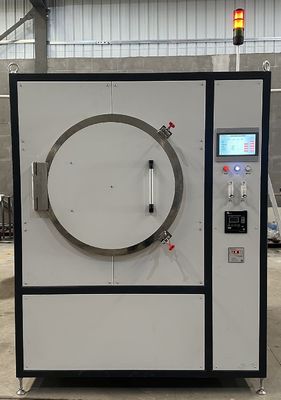

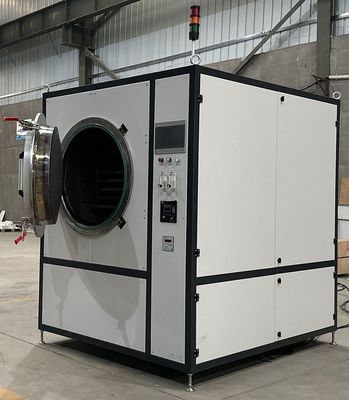

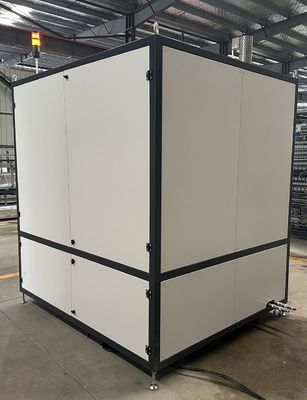

Product Images

Manufacturer Information

Hefei Chitherm Equipment Co., Ltd. specializes in the research, development, and manufacturing of high-quality industrial furnaces for various applications including advanced ceramics, electronic components, powder metallurgy, and new energy sectors.

Frequently Asked Questions

What products does Chitherm offer?

We provide bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, and various specialized industrial furnaces for thermal processing applications.

What pre-sales services does Chitherm provide?

We offer comprehensive consultation services and highly customizable solutions to meet specific customer requirements.

What are Chitherm's core strengths?

As a high-tech enterprise, we combine R&D, manufacturing, and sales with patented technologies to deliver superior furnace solutions.
