s HWF160-10NH Vacuum Furnace The Perfect Solution for Industrial Furnace Needs 165019502000mm WHD Customization

Large Image : s HWF160-10NH Vacuum Furnace The Perfect Solution for Industrial Furnace Needs 1650*1950*2000mm W*H*D Customization

Product Details:

Contact Now

s HWF160-10NH Vacuum Furnace The Perfect Solution for Industrial Furnace Needs 165019502000mm WHD Customization

Description

Model NO.:	HWF160-10NH	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Sintering
Fuel:	Electric	Atmosphere:	Vacuum/Nitrogen/Hydrogen
Effective Chamber Dimensions:	500500650mm(WHD)	Thermcouple:	K
Max Temp:	1100ºC	Transport Package:	Wooden Packaging
Specification:	165019502000mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Package Size:	166.00cm * 196.00cm * 201.00cm
Package Gross Weight:	1550.000kg	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Shipping Cost:	Contact The Supplier About Freight And Estimated Delivery Time.	:	Support Payments In USD
Secure Payments:	Every Payment You Make On Made-in-China.com Is Protected By The Platform.	Refund Policy:	Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.

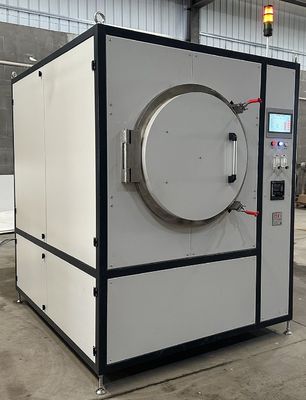

HWF160-10NH Vacuum Furnace - Industrial Furnace Solution

Product Overview

The HWF160-10NH Vacuum Furnace is a high-performance industrial furnace designed for precision thermal processes. With dimensions of 1650×1950×2000mm (W×H×D) and customizable options, it provides an optimal solution for various industrial applications.

Key Specifications

Attribute	Value
Model NO.	HWF160-10NH
Type	Electric Holding Furnace
Max Temperature	1100°C
Effective Chamber Dimensions	500×500×650mm (W×H×D)
Atmosphere	Vacuum/Nitrogen/Hydrogen
Certification	ISO
Customization	Available

Technical Specifications

Rated Temperature: 900ºC
Max Temperature: 1100ºC
Muffle Material: SUS 310S
Heating Method: Resistance wire pre-built heating plate
Temperature Control Stability: ±1ºC
Temperature Uniformity: ±5ºC
Max Vacuum Value: ≤10Pa
Alarm System: Audible and visual alarms for safety
Weight: 1500kg
External Dimensions: 1650×1950×2000mm (W×H×D)

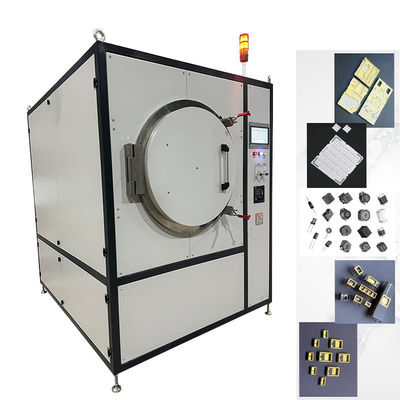

Applications

This vacuum furnace is designed for multiple industrial processes including:

Soldering of metal parts and HTCC packages
Decarburization, annealing, and quenching
Hardening and thermal decomposition
Ceramic sintering processes

Delivery Contents

Item	Note	Quantity
Basic Components	Furnace	1 SET
Technical Documents	Instructions, technical documents	1 SET
Key Components	Heating Element, Vacuum System	1 SET
Temperature Controller	Azbil, CHINO or equivalent	1 SET
PLC	SIEMENS or equivalent	1 SET
Spare Parts	SSR, Sealing ring	1 PC each

Facility Requirements

Environmental Conditions: 0~40ºC, humidity ≤80%RH
N2 Conditions: 99.999% purity, 0.2-0.4MPa pressure
H2 Conditions: 0.2-0.4MPa pressure
Power Requirements: >55kVA, 3-phase 5-line
Installation Area: >7.5m² with 3000×2500×3000mm space

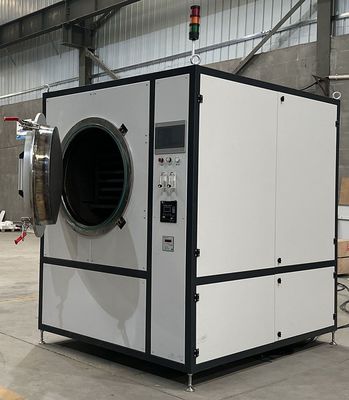

Product Images

Certifications & Packaging

Frequently Asked Questions

What products does Chitherm offer?

We provide high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, and various other industrial furnace solutions.

What pre-sales services does Chitherm provide?

We offer consultation services and highly customizable solutions to meet specific industrial requirements.

What are Chitherm's core strengths?

As a high-tech enterprise, we possess patented technologies and core resources to deliver superior furnace solutions.
