Hardening -Made Industrial Muffle Furnace Hwf160-10nh Vacuum Furnace -Made 165019502000mm WHD Support payments in USD

Large Image : Hardening -Made Industrial Muffle Furnace Hwf160-10nh Vacuum Furnace -Made 1650*1950*2000mm W*H*D Support payments in USD

Product Details:

Contact Now

Hardening -Made Industrial Muffle Furnace Hwf160-10nh Vacuum Furnace -Made 165019502000mm WHD Support payments in USD

Description

Model NO.:	HWF160-10NH	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Sintering
Fuel:	Electric	Atmosphere:	Vacuum/Nitrogen/Hydrogen
Effective Chamber Dimensions:	500500650mm(WHD)	Thermcouple:	K
Max Temp:	1100ºC	Transport Package:	Wooden Packaging
Specification:	165019502000mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Package Size:	166.00cm * 196.00cm * 201.00cm
Package Gross Weight:	1550.000kg	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Shipping Cost:	Contact The Supplier About Freight And Estimated Delivery Time.	:	Support Payments In USD
Secure Payments:	Every Payment You Make On Made-in-China.com Is Protected By The Platform.	Refund Policy:	Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.

Hardening Industrial Muffle Furnace HWF160-10NH Vacuum Furnace

Product Overview

This industrial-grade electric muffle furnace is designed for high-temperature processes including soldering, decarburization, annealing, quenching, and hardening. With vacuum/nitrogen/hydrogen atmosphere capabilities and precise temperature control, it's ideal for ceramic sintering and metal treatment applications.

Key Specifications

Model Number

HWF160-10NH

Maximum Temperature

1100°C

Effective Chamber Size

500×500×650mm (W×H×D)

Atmosphere

Vacuum/Nitrogen/Hydrogen

Heating Power

40kW

Temperature Uniformity

±5°C

Dimensions

1650×1950×2000mm (W×H×D)

Weight

1500kg

Technical Features

Muffle material: High-quality SUS 310S stainless steel
Precision temperature control with ±1°C stability
20-step programmable temperature profiles
Comprehensive alarm system for safety monitoring
Air cooling system with blower
Maximum vacuum level ≤10Pa
Three-point temperature control system
Resistance wire pre-built heating plate

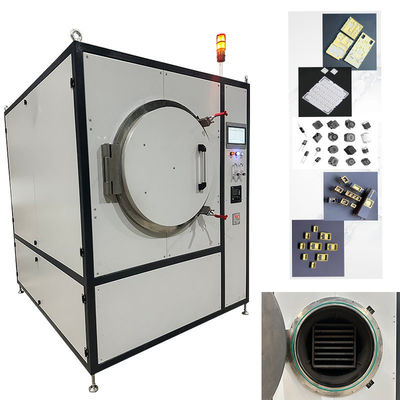

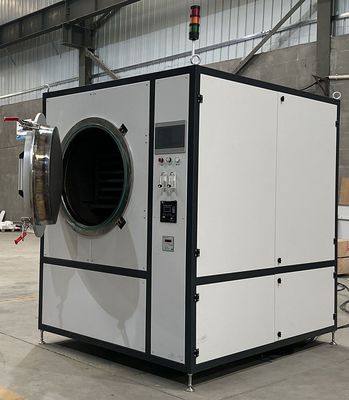

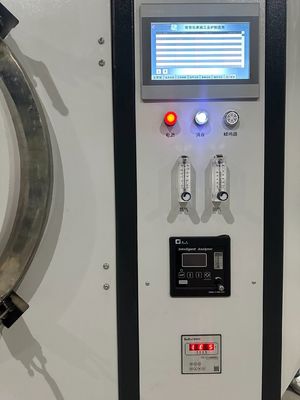

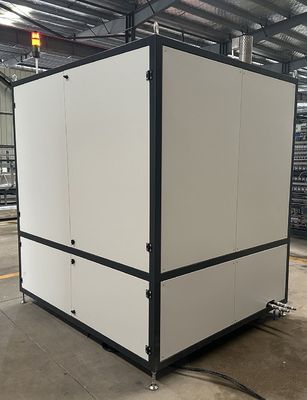

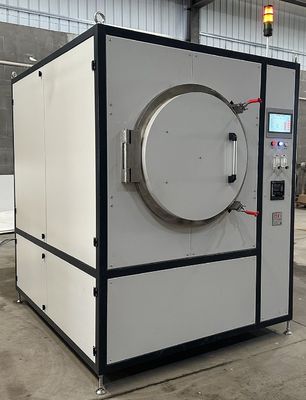

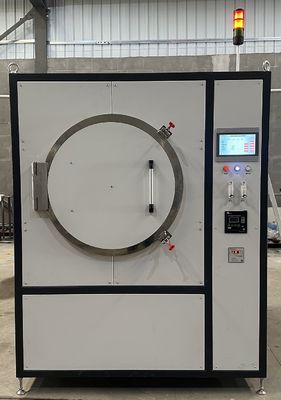

Product Images

Standard Delivery Contents

Item	Description	Quantity
Basic Components	Furnace Unit	1 SET
Technical Documents	Instructions and technical specifications	1 SET
Key Components	Resistance wire heating plate	1 SET
Vacuum System	Complete vacuum setup	1 SET
Temperature Controller	Azbil, CHINO or equivalent	1 SET
PLC System	SIEMENS or equivalent	1 SET

Facility Requirements

Environmental conditions: 0-40°C, humidity ≤80%RH
Power: 3-phase 220/380V, 50Hz, capacity >55kVA
Nitrogen supply: 99.999% purity, 0.2-0.4MPa pressure
Hydrogen supply: 0.2-0.4MPa pressure
Compressed air: Dry, clean, oil-free at 0.4-0.8MPa
Water supply: Clean, non-corrosive at 0.1-0.3MPa
Installation area: Minimum 7.5m² floor space

Certifications & Packaging

Payment & Shipping

Payment Options: USD payments accepted with secure transaction protection

Shipping: Contact supplier for freight costs and delivery estimates

Refund Policy: Full protection for orders that don't ship, arrive missing, or have product issues

Manufacturer Information

Hefei Chitherm Equipment Co., Ltd. specializes in advanced industrial furnace solutions for ceramics, electronics, powder metallurgy, and new energy applications. Our product range includes vacuum furnaces, tube furnaces, bell furnaces, and specialized thermal processing equipment.

Frequently Asked Questions

What products does Chitherm offer?

We provide high-quality industrial furnaces including bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, and specialized kilns for various thermal processing applications.

What pre-sales services are available?

Our team offers comprehensive consultation services to help select the optimal furnace configuration and provides customized solutions to meet specific process requirements.

What are Chitherm's core strengths?

As a high-tech enterprise with patented technologies, we combine R&D expertise with manufacturing excellence to deliver superior thermal processing solutions with reliable performance.
