Electric Furnace Chitherm Vacuum Furnace 1100°C HWF160-10NH
Product Specifications
| Attribute | Value |
| Model NO. | HWF160-10NH |
| Range of Applications | Industrial |
| Type | Electric Holding Furnace |
| Usage | Ceramic Sintering |
| Fuel | Electric |
| Atmosphere | Vacuum/Nitrogen/Hydrogen |
| Effective Chamber Dimensions | 500*500*650mm(W*H*D) |
| Thermcouple | K |
| Max Temp | 1100°C |
| Transport Package | Wooden Packaging |
| Specification | 1650*1950*2000mm(W*H*D) |
| Trademark | Chitherm |
| Origin | China |
| HS Code | 8514101000 |
| Supply Ability | 50 Sets/Year |
| Package Size | 166.00cm * 196.00cm * 201.00cm |
| Package Gross Weight | 1550.000kg |
| Customization | Available |
| Certification | ISO |
| Place Style | Vertical |
Product Description
Applications
This furnace is designed for soldering processes of metal parts and HTCC packaging, with additional capabilities for decarburization, annealing, quenching, scorching, hardening, and thermal decomposition processes.
Technical Specifications
- Rated Temperature: 900ºC
- Maximum Temperature: 1100ºC
- Atmosphere: N2, H2 with humidification
- Oxygen Content: Measured by O2 content analyzer

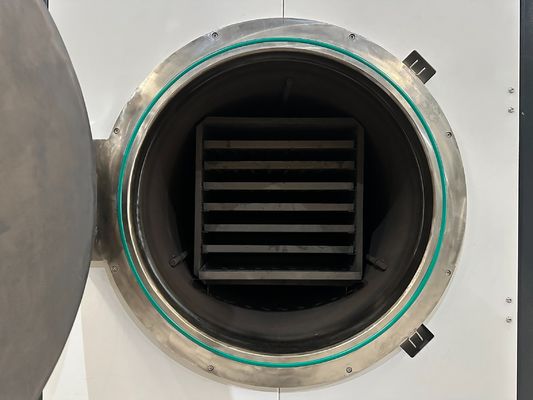

- Muffle Material: SUS 310S
- Muffle Dimensions: φ750mm×900mm(d×D)
- Effective Chamber Dimensions: 500×500×650mm(W×H×D)
- Loading Method: Manual through horizontal guideway shelves
- Heating Method: Resistance wire pre-built heating plate
- Cooling Method: Air cooling with blower
- Temperature Control Stability: ±1ºC (controller with P.I.D function)
- Profile Steps: Default 20 steps
- Temperature Uniformity: ±5ºC
- Thermcouple: Type K
- Temperature Control: 3 Points
- Temperature Measurement: 1 Point
- Maximum Heating Power: 40kW
- Typical Insulation Power: ≤25kW
- Heating Speed: ≤5ºC/min
- Furnace Surface Temperature: ≤40ºC
- Maximum Vacuum Value: ≤10Pa
- Exhaust System: 1 exhaust port on top with H2 igniter
- Alarm System: Audible and visual alarms for over temperature, thermocouple failure, low air/water pressure, and substandard vacuum levels
- Weight: 1500kg
- Appearance Color: Light Grey
- External Dimensions: 1650mm×1950mm×2000mm (W×H×D)
Delivery List
| Item | Note | Qty. |
| Basic Components | Furnace | 1 SET |
| Inspection Certificate | Certificate of major outsourced components | 1 SET |
| Technical Documents | Instructions, technical documents of major outsourced parts | 1 SET |
| Key Components | Heating Element (Resistance wire pre-built heating plate) | 1 SET |
| Vacuum System | | 1 SET |

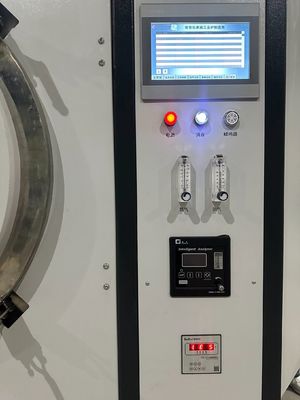

| Touch Screen | | 1 SET |
| Temperature Controller | Azbil, CHINO or equivalent brand | 1 SET |
| Thermocouple | Type N | 3 PCs |
| PLC | SIEMENS or equivalent brand | 1 SET |
| Spare Parts | SSR | 1 PC |
| Spare Parts | Sealing ring | 1 PC |
Facility Requirements
- Environmental Conditions: Temperature 0~40ºC, humidity ≤80%RH, no corrosive gas, no strong airflow disturbance
- N2 Conditions: 99.999% purity, working pressure: 0.2-0.4MPa, Max gas consumption 2-6 m³/h
- H2 Conditions: Working pressure: 0.2-0.4MPa, Max gas consumption 1-3m³/h
- Compressed Air Condition: Dry, clean, oil-free, working pressure: 0.4-0.8MPa
- Water Conditions: Clean, no corrosive water, working pressure 0.1-0.3MPa, 3-9L/min
- Ventilation System: Non-contact access to user pumping system, pumping capacity >15m³/h
- Ground Requirements: Horizontal, no obvious vibration, load-bearing >500 kg/m²
- Power Condition: Capacity >55kVA, 3-phases 5-lines, voltage 220/380V, frequency 50Hz
- Installation Site: 3000mm×2500mm×3000mm(D×W×H), installation area >7.5m²

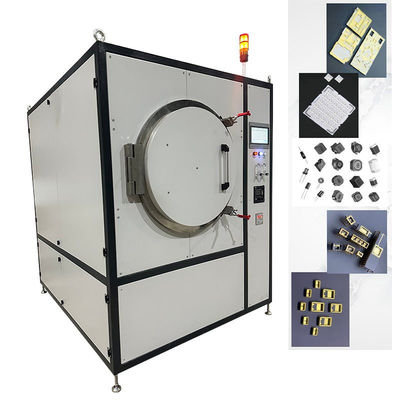

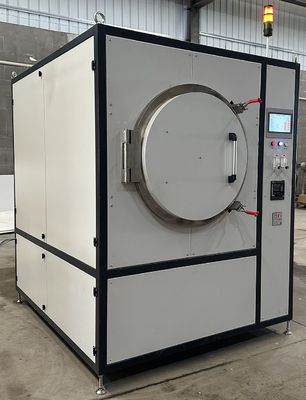

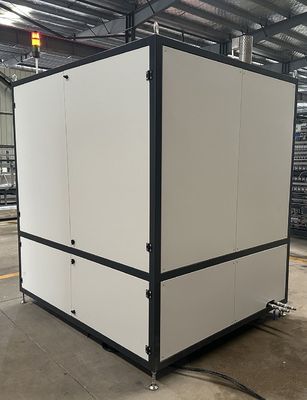

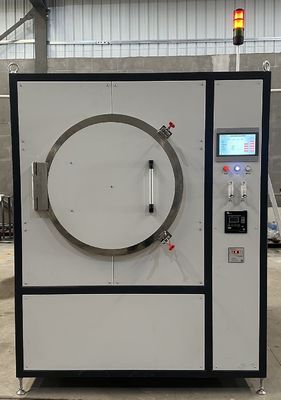

Product Images
