Atmosphere Box Furnace for Degassing Sintering and Curing Processes of Electronic Components and Ceramics

Description

MBF64-11 Medium-Temperature Box Furnace for Degassing, Sintering and Curing Processes

Product Overview

The MBF64-11 medium-temperature box furnace utilizes silicon carbide rods inserted in ceramic tubes as heating elements, offering excellent resistance to acid and alkali corrosion. The vertical arrangement of heating elements ensures uniform temperature distribution throughout the furnace chamber, making it ideal for various laboratory processes.

Primary Applications

Degassing, sintering, and curing processes for LTCC materials
Processing of glass and electronic components
Firing of electronic ceramics and similar products

Technical Specifications

Parameter	Specification
Rated Temperature	1000°C
Maximum Temperature	1100°C
Effective Dimensions (W×H×D)	400×400×400 mm
Heating Element	FEC ceramic fiber heating plate
Temperature Uniformity	±3°C within effective area
Heating Layout	Top, bottom, left, and right sides
Temperature Control Points	3
Alarm Protection	Sound and light alarms for over-temperature and broken sensor
Surface Temperature Rise	≤35°C
Maximum Heating Power	≤24kW
Power Requirements	Three-phase, 220/380VAC, 50Hz, >32kVA

Standard Delivery Contents

Item	Description	Quantity
Basic Compositions	Furnace	1 PC
Certificates	Furnace and major components inspection certificates	1 Set
Technical Documents	Furnace specifications and component documentation	1 Set
Key Parts	FEC Heater	1 Set
Temperature Control	Azbil control module	1 PC
Spares	SSR	1 PC

Facility Requirements

Indoor installation required (0℃ to 40℃ ambient temperature, ≤80% RH humidity)
Environment must be free of flammable gases, corrosive gases, and steam
Non-contact exhaust system connection with capacity >10m³/h
Three-phase five-wire AC power: 380±10% V, 50±2% Hz (dedicated line)
Reliable equipment grounding required
Gas source working pressure: 0.2 to 0.4 MPa

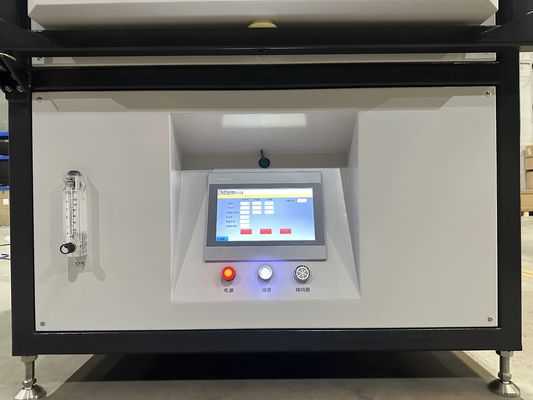

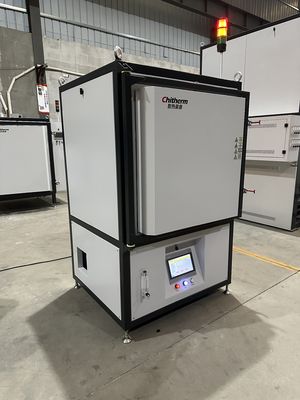

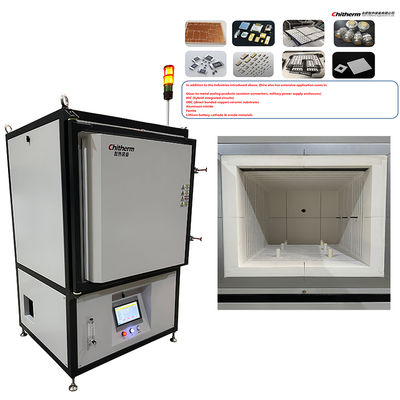

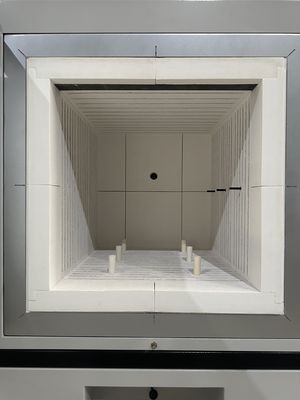

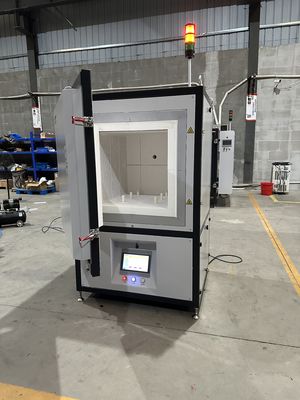

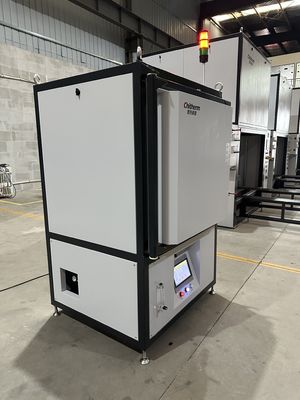

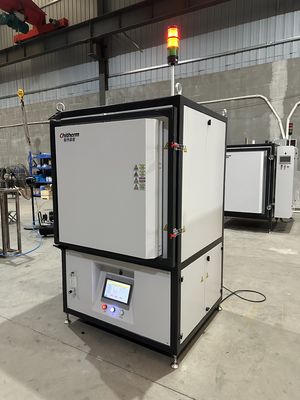

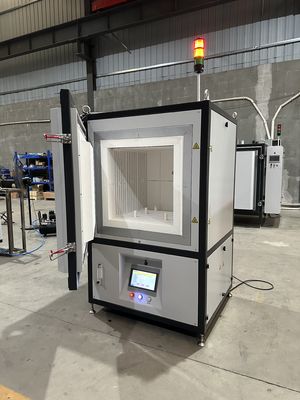

Product Images

Manufacturer Information

Hefei Chitherm Equipment Co., Ltd. specializes in the R&D, manufacturing, and sales of high-, medium-, and low-temperature industrial and laboratory furnaces. Our product range includes:

Bell furnaces, box furnaces, and hot air furnaces
Vacuum furnaces, tube furnaces, and mesh belt furnaces
Bogie hearth furnaces, rotary furnaces, and pusher furnaces

Our solutions serve advanced ceramics, electronic components, powder metallurgy, new energy, photovoltaics, and various material processing applications.

Frequently Asked Questions

What products does Chitherm offer?

We provide high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.

What pre-sales services does Chitherm provide?

We offer comprehensive consultation services to help select suitable products and provide highly customizable solutions to meet specific requirements.

What are Chitherm's core strengths?

As a high-tech enterprise with patented technologies, we integrate R&D, manufacturing, and sales to deliver superior thermal processing solutions.
