Mbf64-11 Type Medium-Temperature Box Furnace For Processes Of Degassing Sintering Curing Of Glass And Electronic Components.

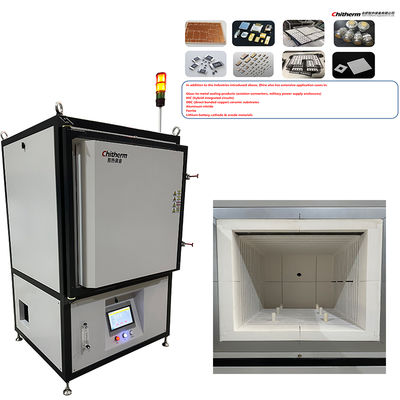

Large Image : Mbf64-11 Type Medium-Temperature Box Furnace For Processes Of Degassing Sintering Curing Of Glass And Electronic Components.

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	MBF64-11

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	13917
Packaging Details:	Wooden Packaging
Delivery Time:	60 work days
Payment Terms:	L/C,T/T
Supply Ability:	50 pcs

Contact Now Chat Now

Mbf64-11 Type Medium-Temperature Box Furnace For Processes Of Degassing Sintering Curing Of Glass And Electronic Components.

Description

Highlight:

Mbf64-11 Box Furnace

Sintering Box Furnace

Degassing Box Furnace

MBF64-11 Medium-Temperature Box Furnace

The MBF64-11 Type Medium-Temperature Box Furnace is designed for degassing, sintering, and curing processes of glass and electronic components, offering reliable performance for laboratory and industrial applications.

Key Features

Corrosion-resistant heating elements for extended durability
Uniform temperature field for consistent results

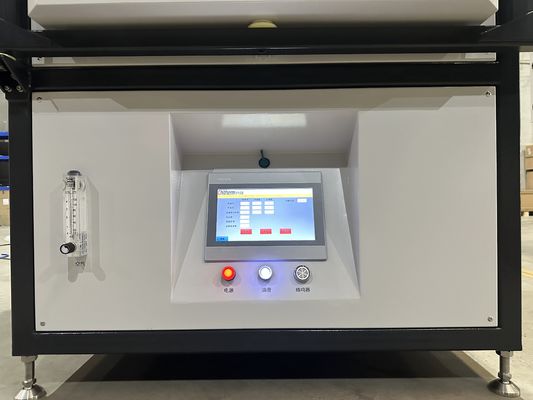

Intelligent control system with PID self-tuning
Ideal for ceramic sintering, metal heat treatment, and powder metallurgy
Optimized for precision materials like electronic ceramics and LTCC

Technical Specifications

Parameter	Value
Rated Temperature	1000°C
Maximum Temperature	1100°C

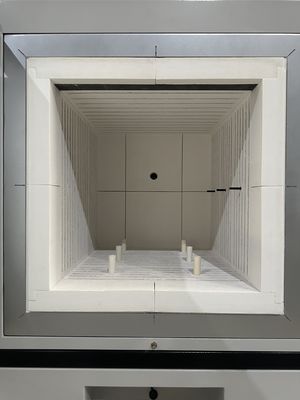

Furnace Chamber Dimensions	600×600×600mm (W×H×D)
Effective Dimensions	400×400×400mm (W×H×D)
Heating Elements	FEC ceramic fiber heating plates
Maximum Heating Power	24kW
Temperature Control Stability	±1°C
Temperature Uniformity	±3°C within effective area

Delivery List

Item	Note	QTY
Furnace	Basic Composition	1 PC
Certificates of Inspection	Furnace and major components	1 Set
FEC Heater	Key Part	1 Set
Temperature control module	Azbil	1 PC
SSR	Spare	1 PC

Facility Requirements

Indoor installation with temperature range of 0°C to 40°C and humidity ≤80% RH
Non-contact exhaust system with capacity >10 m³/h
Three-phase five-wire AC power: 380±10% V, 50±2% Hz
Dedicated power line without high-power conversion equipment
Reliable grounding required

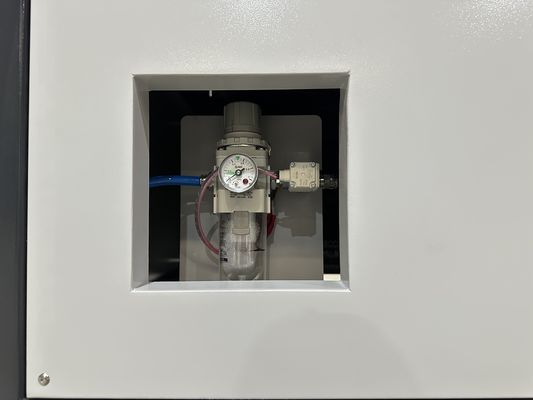

Gas source working pressure: 0.2 to 0.4 MPa

About Hefei Chitherm Equipment Co., Ltd.

Specializing in research, development, and manufacturing of industrial and laboratory furnaces, our product range includes bell furnaces, box furnaces, vacuum furnaces, and more. Our solutions serve advanced ceramics, electronic components, powder metallurgy, new energy, and photovoltaics industries, supporting various thermal treatment processes.
