Temperature Control Stability: ± 1 º C, Hrf216-05n Type Box Furnace, Furnace Atmosphere: Nitrogen

Large Image : Temperature Control Stability: ± 1 º C, Hrf216-05n Type Box Furnace, Furnace Atmosphere: Nitrogen

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HRF216-05N

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	41124.2
Packaging Details:	Wooden Packaging
Delivery Time:	60-90 work days
Payment Terms:	L/C,T/T
Supply Ability:	50 Sets/Year

Contact Now Chat Now

Temperature Control Stability: ± 1 º C, Hrf216-05n Type Box Furnace, Furnace Atmosphere: Nitrogen

Description

Model NO.:	HRF216-05N	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Drying
Fuel:	Electric	Atmosphere:	Nitrogen
Effective Chamber Dimensions:	600600600mm(WHD)	Thermocouple:	Type K
Max Temp:	500ºC	Effective Dimensions:	600600600
Transport Package:	Wooden Packaging	Specification:	135017501950mm(WHD)
Production Capacity:	50 Sets/Year
Highlight:	high temperature box furnace with nitrogen atmosphere , box furnace temperature control stability , Hrf216-05n type box furnace

1. Applications:

Mainly used for binder burning out(BBO) process of electronic components, ceramic substrates.

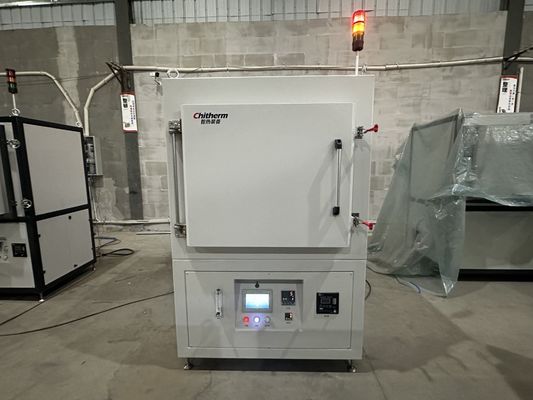

Temperature Control Stability: ± 1 º C, Hrf216-05n Type Box Furnace, Furnace Atmosphere: Nitrogen 0

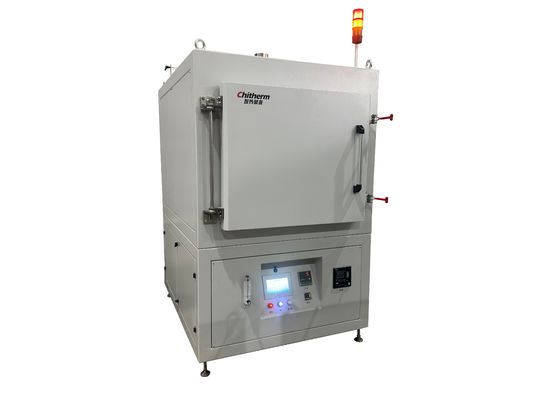

Temperature Control Stability: ± 1 º C, Hrf216-05n Type Box Furnace, Furnace Atmosphere: Nitrogen 1

2. Mainly Specifics:

Rated Temp.	350ºC
Max Temp.	500ºC
Effective Dimensions	600 × 600 × 600mm(W×H×D)
Heating Method	Stainless Steel Heater
Process Atmosphere	Nitrogen
Temperature Control Stability	±1ºC, with PID parameter self-tuning function
Temperature Uniformity	better than ±5ºC (insulation 1 hour at 400ºC test)
Thermocouple	Type K
Temperature measurement points	1 point
Process Steps	4 × 10 steps
Exhaust	One exhaust port on top
Max Heating Power	18kW
Insulation Power	≤ 12kW
Surface Temperature Rise	≤ 35ºC

3. Delivery List
	Item	Note	QTY
Basic Compositions	Dryer		1 PC
	Certificates of Inspection	Dryer and major purchased components	1 Set
	Technical Documents	Manual instructions, technical documents of major purchased components, etc	1 Set
Key Parts	Heating Elements	Stainless Steel Heater	1 Set
	Thermocouple	WATLOW/THERMOWAY, Type K	1 PC
	Temperature Controller		1 Set
	Monitor	Touch screen	1 Set
Spares	SSR		1 PC

4. Facility Requirements
4.1 Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
4.2 Process air conditions: 99.999% purity nitrogen, pressure 0.2 - 0.4Mpa, gas consumption 10m³ /h.
4.3 Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 15m³ /h;
4.4 Ground requirements: level, no obvious vibration, bearing capacity >300Kg/m².
4.5 Power conditions: capacity greater than 24kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
4.6 Installation site: 2000mm×3000mm×3000mm (W×H×D), installation area greater than 6m².

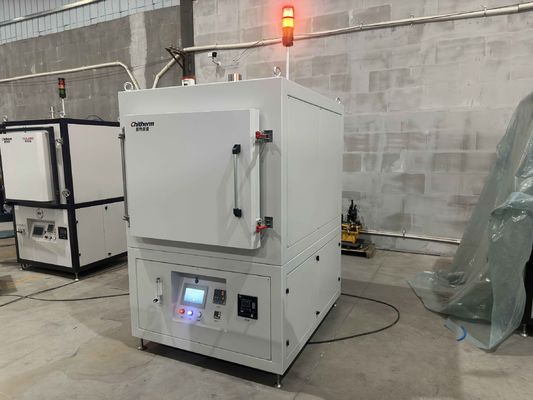

Temperature Control Stability: ± 1 º C, Hrf216-05n Type Box Furnace, Furnace Atmosphere: Nitrogen 2

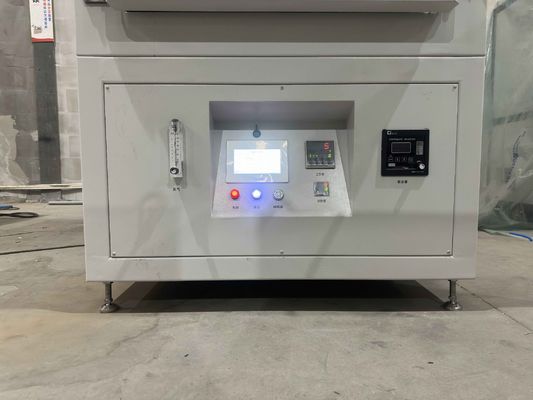

Temperature Control Stability: ± 1 º C, Hrf216-05n Type Box Furnace, Furnace Atmosphere: Nitrogen 3

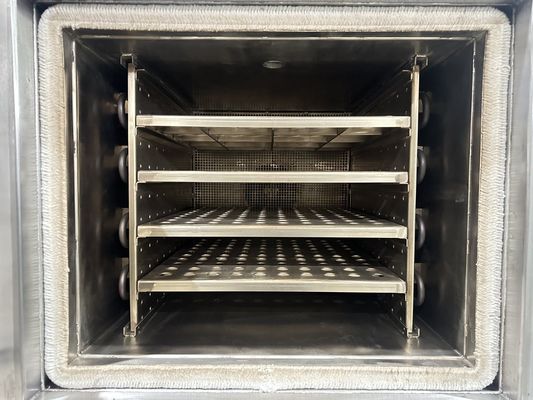

Temperature Control Stability: ± 1 º C, Hrf216-05n Type Box Furnace, Furnace Atmosphere: Nitrogen 4

Temperature Control Stability: ± 1 º C, Hrf216-05n Type Box Furnace, Furnace Atmosphere: Nitrogen 5
