Industrial Electric Furnace, Furnace Temperature Control Stability: ± 1 º C, Hrf216-05n Type Box Furnace

Large Image : Industrial Electric Furnace, Furnace Temperature Control Stability: ± 1 º C, Hrf216-05n Type Box Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HRF216-05N

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	41124.2
Packaging Details:	Wooden Packaging
Delivery Time:	60-90 work days
Payment Terms:	L/C,T/T
Supply Ability:	50 Sets/Year

Contact Now Chat Now

Industrial Electric Furnace, Furnace Temperature Control Stability: ± 1 º C, Hrf216-05n Type Box Furnace

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Drying	Atmosphere:	Nitrogen
Effective Chamber Dimensions:	600600600mm(WHD)	Thermocouple:	Type K
Max Temp:	500ºC	Effective Dimensions:	600600600
Transport Package:	Wooden Packaging	Specification:	135017501950mm(WHD)
Trademark:	Chitherm	Origin:	China
Highlight:	Industrial electric box furnace , High temperature box furnace with warranty , Precision furnace temperature control ±1ºC

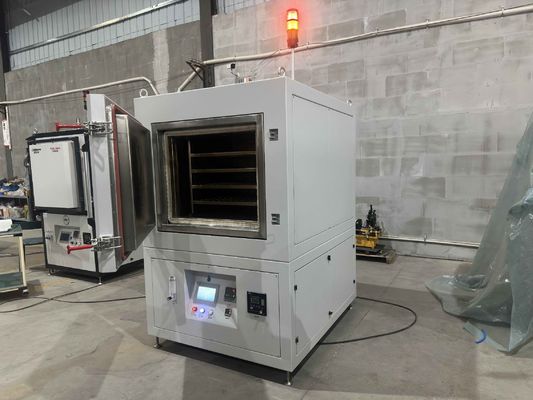

Industrial Electric Furnace, Furnace Temperature Control Stability: ± 1 º C, Hrf216-05n Type Box Furnace 0

Industrial Electric Furnace, Furnace Temperature Control Stability: ± 1 º C, Hrf216-05n Type Box Furnace 1

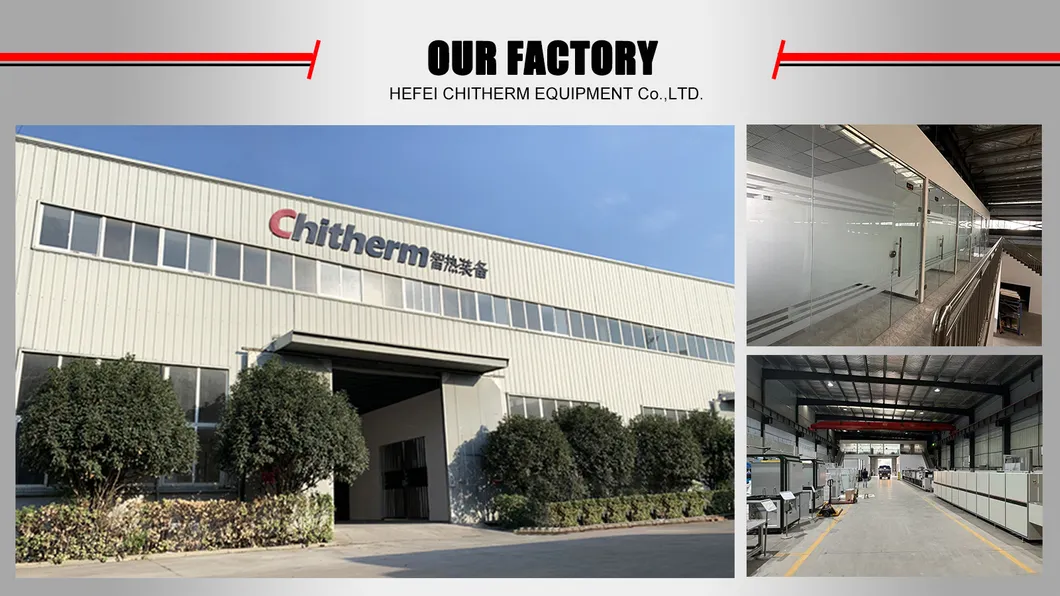

Hefei Chitherm Equipment Co., Ltd. is an advanced equipment supplier specializing in the research and development, design, manufacturing, sales, maintenance, and service of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces. Its product range encompasses bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, bogie hearth furnaces, rotary furnaces, roller hearth furnaces, and pusher furnaces, which are extensively applied in fields such as advanced ceramics, electronic components, thick-film circuits, additive manufacturing, powder metallurgy, new energy, and photovoltaics. These furnaces are suitable for thermal treatment processes of materials including ITO targets, MLCC/HTCC/LTCC, ceramic filters, magnetic materials, CIM/MIM, and lithium battery cathodes and anodes, as well as various other new material processes such as pre-sintering, dewaxing, degreasing, sintering, drying, heat treatment, curing, and ceramization.

1. Applications:

Mainly used for binder burning out(BBO) process of electronic components, ceramic substrates.

Industrial Electric Furnace, Furnace Temperature Control Stability: ± 1 º C, Hrf216-05n Type Box Furnace 2

2. Mainly Specifics:

Rated Temp.: 350ºC
Max Temp.: 500ºC

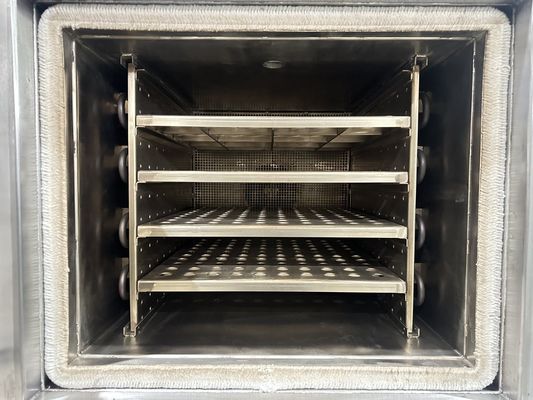

Effective Dimensions: 600 × 600 × 600mm(W×H×D)
Heating Method: Stainless Steel Heater
Process Atmosphere: Nitrogen
Temperature Control Stability: ±1ºC, with PID parameter self-tuning function
Temperature Uniformity: better than ±5ºC (insulation 1 hour at 400ºC test)
Thermocouple: Type K
Temperature control points: 1
Temperature measurement points: 1 point
Process Steps: 4 × 10 steps
Exhaust: One exhaust port on top
Alarm System: over temperature, thermocouple failure and other abnormal conditions will activate sound and light alarm protection

3. Delivery List
	Item	Note	QTY
Basic Compositions	Dryer		1 PC
	Certificates of Inspection	Dryer and major purchased components	1 Set
	Technical Documents	Manual instructions, technical documents of major purchased components, etc	1 Set
Key Parts	Heating Elements	Stainless Steel Heater	1 Set
	Thermocouple	WATLOW/THERMOWAY, Type K	1 PC

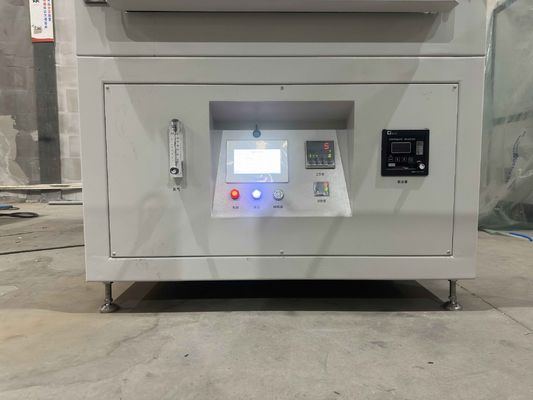

	Temperature Controller		1 Set
	Monitor	Touch screen	1 Set
Spares	SSR		1 PC

4. Facility Requirements
4.1 Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
4.2 Process air conditions: 99.999% purity nitrogen, pressure 0.2 - 0.4Mpa, gas consumption 10m³ /h.
4.3 Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 15m³ /h;
4.4 Ground requirements: level, no obvious vibration, bearing capacity >300Kg/m².
4.5 Power conditions: capacity greater than 24kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
4.6 Installation site: 2000mm×3000mm×3000mm (W×H×D), installation area greater than 6m².

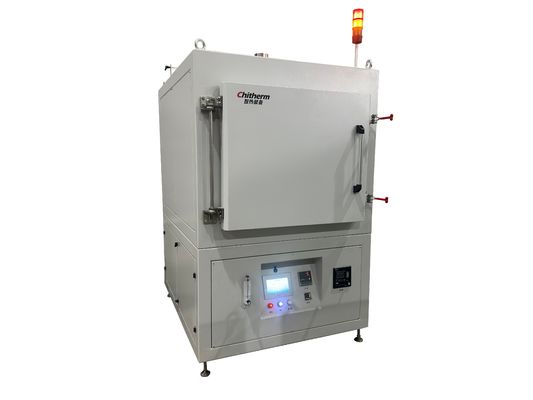

Industrial Electric Furnace, Furnace Temperature Control Stability: ± 1 º C, Hrf216-05n Type Box Furnace 4

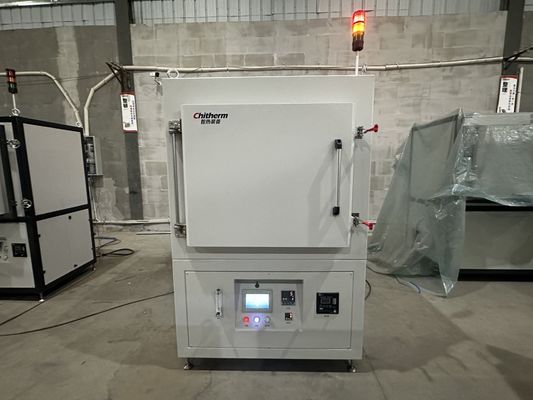

Industrial Electric Furnace, Furnace Temperature Control Stability: ± 1 º C, Hrf216-05n Type Box Furnace 5

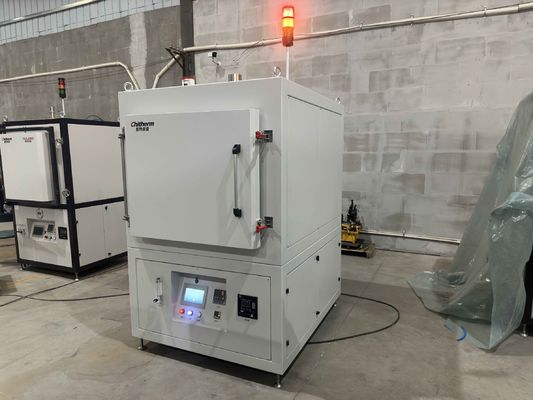

Industrial Electric Furnace, Furnace Temperature Control Stability: ± 1 º C, Hrf216-05n Type Box Furnace 6
