1100º C Mbf40-11n Type Intelligent Box-Type High-Temperature Furnace Sintering Furnace

Name: 1100º C Mbf40-11n Type Intelligent Box-Type High-Temperature Furnace Sintering Furnace
Brand: Hefei Chitherm Equipment Co., Ltd
SKU: MBF40-10N
Availability: InStock

All Products

High Temperature Box Furnace
(109)

Elevator Furnace
(72)

Hot Air Drying Oven
(56)

Atmosphere Box Furnace
(34)

Vacuum Muffle Furnace
(56)

Tube Furnace
(10)

Rotary Furnace
(4)

Waste Gas Incinerator
(4)

Continuous Annealing Furnace
(3)

Electric Muffle Furnace
(11)

Debinding Furnace
(1)

Conveyor Belt Furnace
(8)

Furnace Parts
(2)

Customer Reviews

Dear Valued Partner, Thank you for your support and trust over the past year. It is through your cooperation that we have been able to successfully achieve our goals. In the days to come, we look forward to continuing our close collaboration and creating even greater value together. — With best regards, [Chinese Academy of Sciences]

—— Chinese Academy of Sciences

I'm Online Chat Now

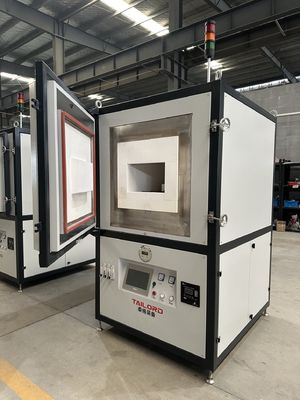

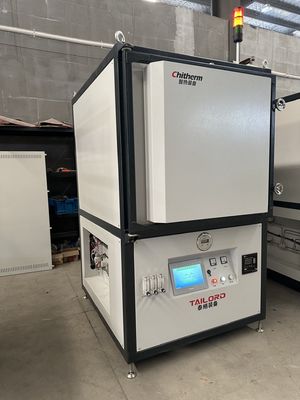

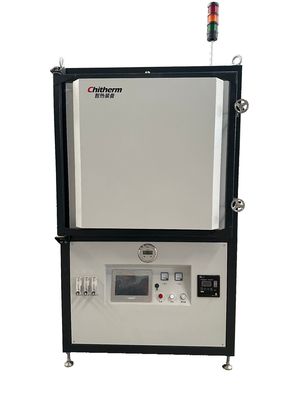

1100º C Mbf40-11n Type Intelligent Box-Type High-Temperature Furnace Sintering Furnace

Large Image : 1100º C Mbf40-11n Type Intelligent Box-Type High-Temperature Furnace Sintering Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	MBF40-10N

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now Chat Now

1100º C Mbf40-11n Type Intelligent Box-Type High-Temperature Furnace Sintering Furnace

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Sintering	Fuel:	Electric
Atmosphere:	Air	Effective Chamber Dimensions:	330200660mm(WHD)
Transport Package:	Wooden Packaging	Specification:	115019701460mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Customization:	Available	Certification:	ISO
Place Style:	Vertical
Highlight:	1100°C box-type high-temperature furnace , MBF40-11N sintering furnace , intelligent high-temperature box furnace

1100º C MBF40-11N Type Intelligent Box-Type High-Temperature Furnace Sintering Furnace

Product Specifications

Attribute	Value
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Sintering
Fuel	Electric
Atmosphere	Air
Effective Chamber Dimensions	330200660mm(WHD)
Transport Package	Wooden Packaging
Specification	115019701460mm(WHD)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Supply Ability	50 Sets/Year
Customization	Available
Certification	ISO
Place Style	Vertical

Product Overview

The MBF40-10N atmosphere box furnace is designed for industrial ceramic sintering applications with temperature performance up to 1000°C and advanced atmosphere control capabilities.

Key Features

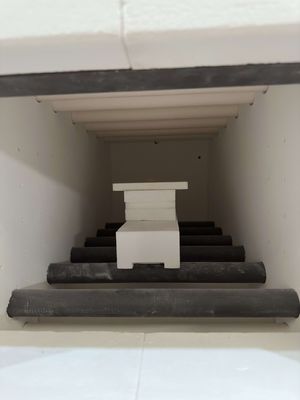

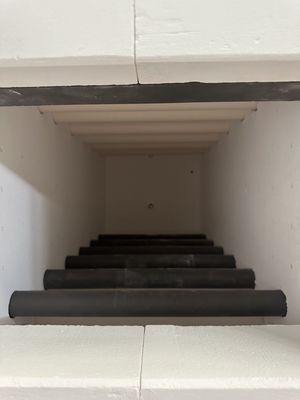

Silicon carbide heating elements resistant to acid/alkali corrosion
Dual heating element arrangement (top and bottom) for uniform temperature distribution
Alumina inner chamber with ceramic fiber outer insulation
Precision temperature control with ±5°C uniformity
Comprehensive safety alarms and protection systems
User-friendly operation suitable for laboratory processes

Technical Parameters

Model: MBF40-10N Atmosphere Box Furnace
Rated Temperature: 850-1000°C
Maximum Temperature: 1000°C
Effective Dimensions: 330×200×660mm (W×H×D)
Temperature Uniformity: ±5°C
Program Steps: 20 steps
Power Requirements: Three-phase, 220/380V, 50Hz, >35kVA
Surface Temperature Rise: ≤40°C
Maximum Heating Power: ≤25kW

Standard Delivery Contents

Item	Note	QTY
Basic Compositions	Furnace	1 PC
Certificates of Inspection	Furnace and major components	1 Set
Technical Documents	Specifications and component documents	1 Set
Key Parts	Ceramic tube-encased silicon carbide rod	1 Set
Temperature Controller	Azbil	1 Set
Touch Screen		1 Set
Spares	Silicon carbide rod	1 PC

Installation Requirements

Environment: 0-40ºC, ≤80% RH, no corrosive gas or strong airflow
Process Air: 99.999% nitrogen, 0.2-0.4Mpa, 4-12m³/h consumption
Ventilation: Non-contact access to user pumping system (>15m³/h capacity)
Power: >35kVA, 3-phase 5-wire, 220/380V, 50Hz
Space Requirements: 2500×2000×3000mm (W×H×D), >5m² area

Certifications

Frequently Asked Questions

What products does Chitherm offer?

We provide high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.

What pre-sales services does Chitherm provide?

We offer consultation services to help select suitable products and provide highly customizable solutions to meet specific requirements.

What are Chitherm's core strengths?

As a high-tech enterprise integrating R&D, manufacturing, and sales, Chitherm possesses patented technologies and core resources to deliver superior furnace solutions.
