China-Made Heat Treatment Furnace with a Rated Temperature of 850ºC, Muffle Furnace BF230-10, Bell-Shaped Furnace
The BF230-10 Bell Jar Furnace is an advanced high-temperature heat treatment equipment designed for exceptional performance. Its unique bell jar structure makes it particularly suitable for batch and continuous industrial production and laboratory research. It excels in processes such as magnetic materials processing, ceramic sintering, powder metallurgy, crystallization, and precision annealing, making it an ideal solution for enhancing product quality and production efficiency.
Product Attributes
| Attribute |
Value |
| Range of Applications |
Industrial |
| Type |
Electric Holding Furnace |
| Usage |
Steel Molding |
| Fuel |
Electric |
| Atmosphere |
Air |
| Effective Chamber Dimensions |
1520*1520*2250(mm) (W*H*D) |
| Rated Temperature |
850ºC |
| Maximum Temperature |
1000°C |
| Transport Package |
Wooden Packaging |
| Specification |
1520*1520*2250(mm) (W*H*D) |
| Trademark |
Chitherm |
| Origin |
China |
| HS Code |
8514101000 |
| Supply Ability |
50 Sets/Year |
| Customization |
Available |
| Certification |
ISO |
| Place Style |
Vertical |
Product Description

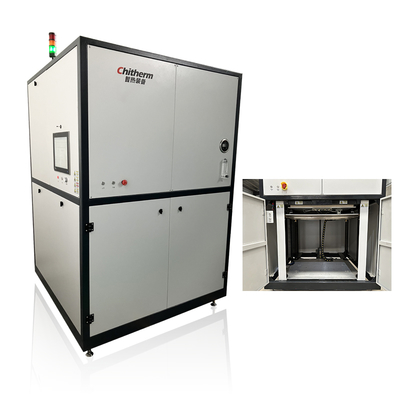

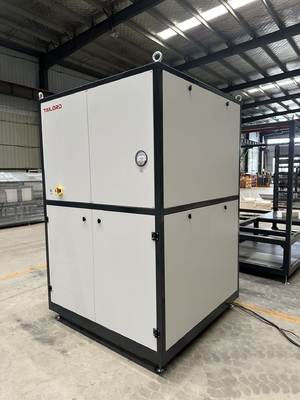

Model: BF230-10 Bell Furnace
Application
This equipment is mainly designed for LTCC sintering, it can also be used for binder burning out and sintering process of other relevant electrical products.
Technical Specification
| Rated Temperature |
850ºC |
| Max. Temperature |
1000ºC |
| Chamber Dimensions |
600mm×600mm×650mm(D×W×H) |
| Effective Dimensions |
500mm×500mm×500mm(D×W×H) |
| Chamber Insulation Material |
Aluminosilicate Ceramic Fiber |
| Inner Surface of Chamber |
Quartz Glass Cover |
| Heating Elements |
Coils in Ceramic Fiber Block |
| Thermcouple |
Type N |
| Temperature Control Point |
4 Points |
| Pre-Heating |
4 Inlets |
| 3 Stages Pre-Filtering of air |
1- dust, 2 - water drops, 3 - oil vapor |
| Temperature Control Mode |
Temperature controller imported from Japan |
| Heating-up Steps |
20 Steps |
| Temperature Record |
IPC makes a real-time sampling record of the chamber temperature and the gas heating temperature |
| Chamber Temperature Uniformity |
400mm×400mm×400mm (D×W×H) area is better than ±3ºC |
| Maximum Lifting Trip |
800mm |
| Total Power |
52kW (Max Heating Power:40kW, Max Gas Preheating Power:4×3kW) |
| Outline Dimensions |
1520×1520×2250mm(D×W×H) |
Composition of Furnace Structure
The equipment is mainly composed of outer frame, chamber, bottom support, lifting system and control system.
1. Chamber Design

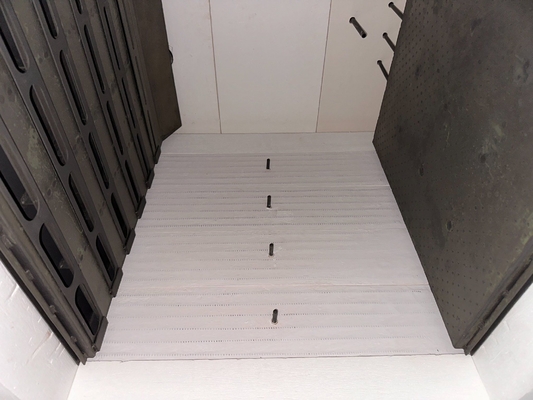

The chamber is made of ceramic fiberboard and fiber products, and the outermost layer is surrounded by calcium silicate board. The inner layer is surrounded by ceramic fiber heating plate, from top to bottom 4 groups of heating, independent temperature control. The booster air intake box is provided on the right side, and the exhaust gas collection and exhaust box are provided on the left side. The chimney outlet is installed with an auxiliary exhaust amplifier to ensure that the exhaust gas generated during the sintering process can be discharged in time.
2. Bottom Support Design

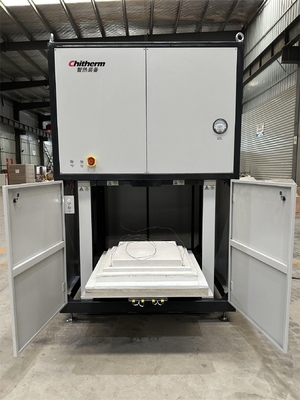

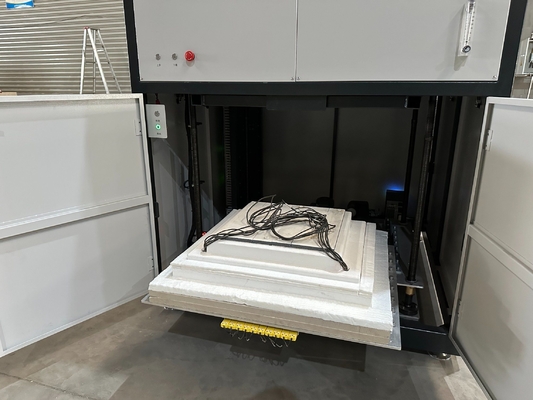

The equipment is equipped with lifting base support, which can be loaded after lowering. For safety reasons, the equipment heating and lifting control are interlocked. The bottom plate is mechanically locked in the working position during heating process. The heating process would not start until the bottom plate is locked. There is a sealing layer between the bottom plate and the chamber to prevent the heat loss from gap through the intersection at high temperature.
3. Lifting System

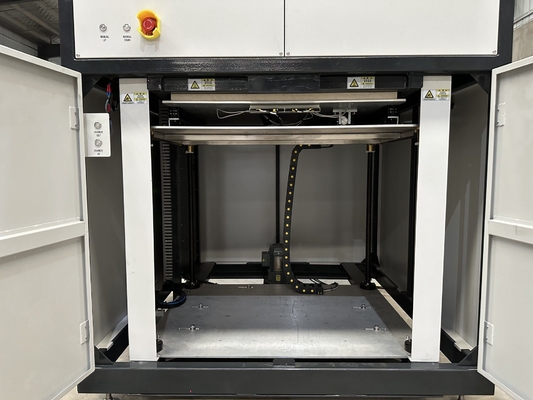

The lifting drive system is located at the bottom of the equipment. The lifting platform is lead screw driving. The whole moving process is that the deceleration motor drives the main wheel and the synchronous belt at the same time drives the four synchronous belt wheels connected to the bottom of the wire bar. The lifting system is stable and reliable. when the bottom plate falls down, open the two front doors, push the shift out button, the bottom plate would move out to load and unload. The lifting control with 3 ways, up, down and stop to make the bottom support start and stop at any height.
4. Control System
FEC(Fully Enclosed Coil) heating plates are at all 4 sides of chamber, the height direction of 4 groups of heating, 4 points of independent temperature control. The temperature control uses imported temperature control module for each temperature zone, and the data sampling enters the centralized management and control of the touch screen operating system. To adjust the temperature, the output ratio of each temperature zone is uniformly controlled by the touch screen monitor.
All 4 heating sections were independently controlled by the N-Type thermal couple, controlling the stability of ±1ºC. Thermal coupling detects the chamber temperature, then send the signal to the temperature control module to control the power module output, so as to obtain accurate temperature control effect.
All electrical strong panels connected to the furnace body are installed at the rear of the heating furnace body to provide the most reliable safety protection. In addition, the heating and lifting interlock, the heating function cannot be opened when the bottom plate is opened.
5. Atmosphere System
During the use of the equipment, dry, clean and oil-free compressed air can be inputted the furnace through the equipment pipeline system. The air flow is controlled by the glass rotor flowmeter with a single range of 24-240L/min. To avoid the disturbance of low temperature gas in the furnace, the gas is preheated by the heater before entering the furnace. The preheating temperature can be controlled by the temperature controller, and the max preheating temperature is 500ºC.
After preheating, the gas is discharged from the pressurized air intake box on the right side of the furnace, and is discharged through the left gas collection and exhaust box. To control the discharge speed of the exhaust gas in the furnace, the exhaust aid system is installed at the chimney outlet which controlled by a flowmeter range 24-240L/min.

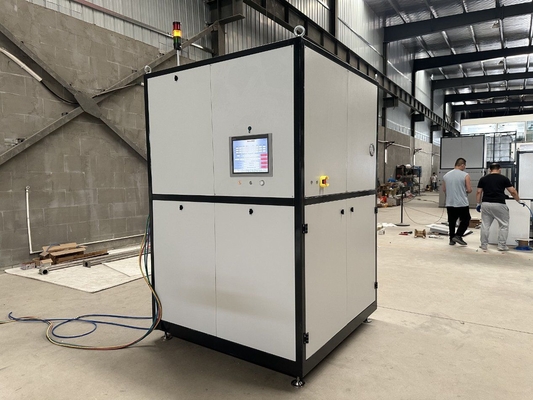

6. Real-time touch screen monitoring
- Temperature Control: 4 heating control from top to bottom in the furnace (which can be controlled in sections), preheating control for 4 groups of gas outside the furnace.
- Action Control: the rise, drop and stop of the bottom support.
- Alarm Signal: furnace over temperature, gas preheating over temperature, low air pressure, motor overload, override.
- Parameter Setting: process parameter setting, temperature recording.
Shipping List
| Item |
Description |
Qty |
| Basic Components |
Furnace |
1/SET |
| Inspection certificate |
Certificate of major outsourced components |
1/SET |
| Technical Documents |
Instructions, technical documents of the major outsourced parts, etc |
1/SET |
| Key Components |
Heating Elements |
1/SET |
| Flowmeter |
TOFCO/YINHUAN |
1/SET |
| Differential Pressure |
TOFCO/DUWEI |
1/SET |
| Thermocouple |
THERMOWAY |
1/SET |
| Lifting System |
Customized |
1/SET |
| Temp. Controller |
Azbil |
1/SET |
| PLC |
SIEMENS |
1/SET |
| Touch Screen |
MCGS (based on Linux) |
1/SET |
| Spare Parts |
Solid State Relay (XIMADEN) |
1/PC |
| Spare Parts |
Heating Elements |
1/PC |
