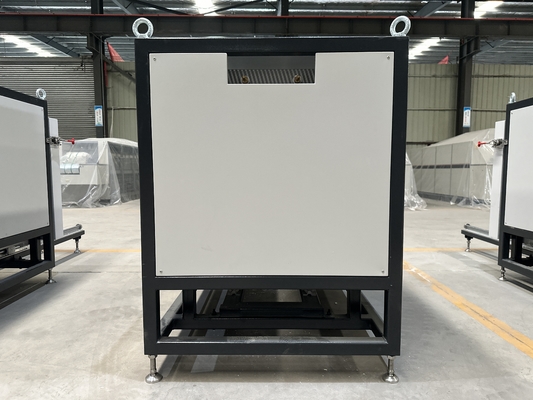

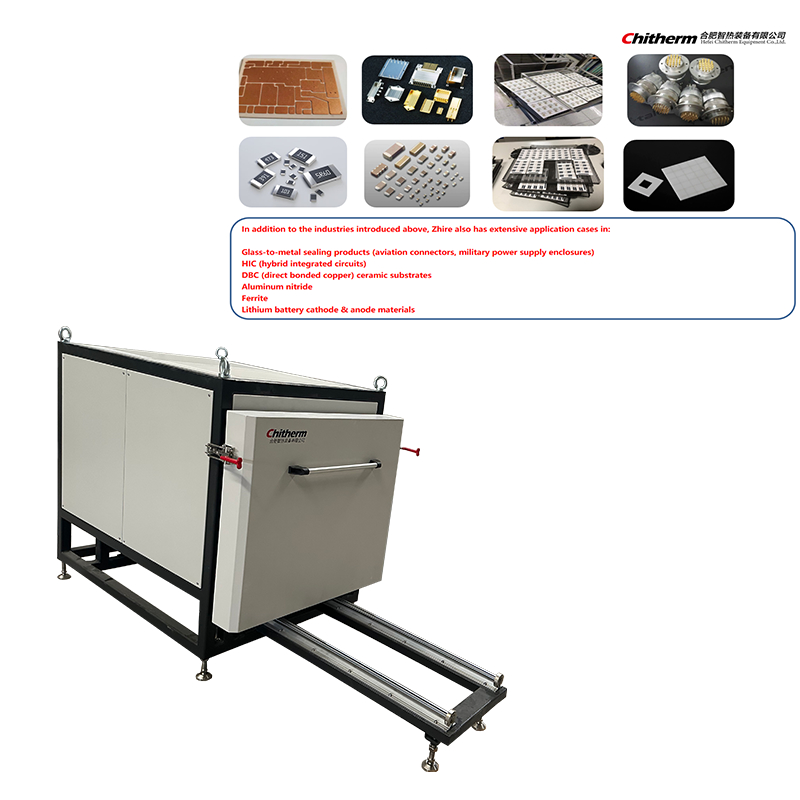

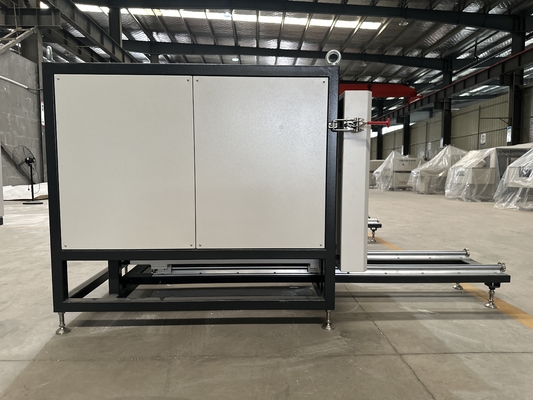

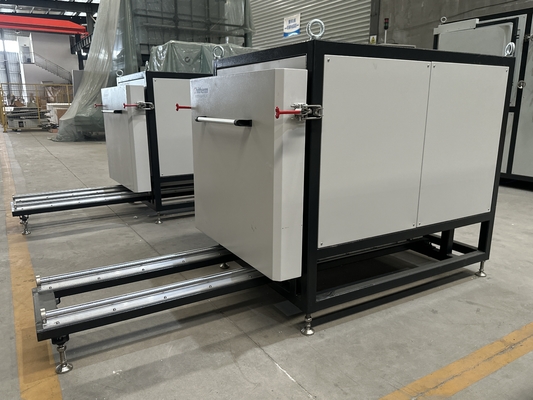

High Temperature Stability Atmosphere Box Furnace with ±1°C Temperature Control Model HBF105-14
Product Attributes
| Attribute |
Value |
| Range of Applications |
Industrial |
| Type |
Electric Holding Furnace |
| Usage |
Steel Molding |
| Fuel |
Electric |
| Effective Chamber Dimensions |
400*330*800mm(W*H*D) |
| Setter Plate |
Corundum-Mullite |
| Transport Package |
Wooden Package |
| Specification |
850*900*1200mm (W*H*D) |
| Trademark |
Chitherm |
| Origin |
China |
| HS Code |
8514101000 |
| Supply Ability |
50 Sets/Year |
| Customization |
Available |
| Certification |
ISO |
| Place Style |
Vertical |
Product Description
Overview
The HBF105-14 sintering furnace utilizes silicon molybdenum rods, offering resistance to acids and alkalis, excellent temperature uniformity, and simple operation. It is suitable for various laboratory and small-batch production processes.
Performance Parameters
Model: HBF105-14 Sintering Furnace
Operating Temperature: 1300°C
Maximum Test Temperature: 1500°C
Effective Chamber Dimensions: 400*330*800mm (W×H×D)
Loading Device: Corundum mullite sintering plate
Heating Element: Silicon molybdenum rod
Temperature Stability: ±1°C
Chamber Temperature Uniformity: ±5°C
Temperature Control Segments: 40 segments
Temperature Control Points: 1 point
Alarm Protection: Interlock between heating and door operation, over-temperature, thermocouple failure, and low-pressure audible/visual alarms
Surface Temperature Rise: <35°C
Maximum Heating Power: 23kW
Power Requirements: Three-phase, 380VAC, 50Hz, 30kVA
Equipment Weight: 500kg
Installation Dimensions: 800*900*1200mm (D×W×H)
Equipment Name

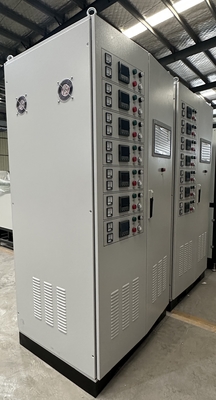

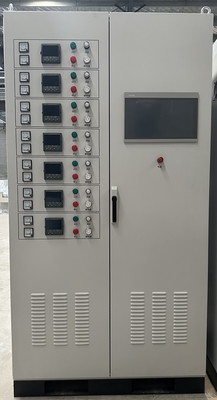

Heating/Cooling Control Cabinet
Basic Configuration
Temperature Control Channels: 5+2 (5 channels for sintering furnace control, 2 channels reserved)
Temperature Control Instrument: Eurotherm3504 or imported from Japan
Number of Instruments: 7 temperature controllers per control cabinet
Dimensions: 800×1850×500mm (W×H×D)
Exterior Color: Light gray
Control System
Control Instrument: Eurotherm3504 or imported Japanese intelligent regulator with PID auto-tuning, high-temperature upper limit alarm, thermocouple failure indication, and multiple alarm protection functions.
Control Method: Power and voltage regulation.
Over-Temperature Handling: Audible/visual alarm activation and immediate heating cutoff in case of over-temperature conditions.
Standard Configuration
| Item |
Specifications |
Quantity |
Notes |
| Kiln Main Unit |
Primary heating system |
1 set |
Core equipment for thermal process |
| Setter Plate |
Material: Corundum-Mullite |
1 set |
High-temperature resistant carrier |
Installation Requirements
Important Installation Notes:
- The equipment must be installed indoors, with an ambient temperature range of -10℃ to 45℃. The indoor environment must be free of flammable gases, corrosive gases, and vapors.
- The equipment requires a floor space of no less than 4 square meters, with a working area length of at least 2 meters, width of at least 2 meters, and height of no less than 3 meters. The foundation must be sturdy and level, and the furnace weighs approximately 400kg.
- The power supply for this furnace must be a three-phase five-wire AC power line, with a voltage of 380±10% V and a frequency of 50±2% Hz. This power line is dedicated, and high-power conversion equipment such as welding machines, electric furnaces, and metal-cutting machine tools should not be connected to this distribution.
- The equipment must be reliably grounded.
