Large Image :  Small-Batch Production Atmosphere Box Furnace Programmable Operation Atmosphere Box Furnace

Product Details:
Place of Origin: China
Brand Name: Chitherm
Model Number: HBF105-14
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Customized
Delivery Time: Customized
Payment Terms: Customized
Supply Ability: Customized
Contact Now

Small-Batch Production Atmosphere Box Furnace Programmable Operation Atmosphere Box Furnace

Description
Range Of Applications: Industrial Type: Electric Holding Furnace
Usage: Steel Molding Fuel: Electric
Effective Chamber Dimensions: 400*330*800mm(W*H*D) Setter Plate: Corundum-Mullite
Transport Package: Wooden Package Specification: 850*900*1200mm (W*H*D)
Trademark: Chitherm Origin: China
HS Code: 8514101000 Supply Ability: 50 Sets/Year
Customization: Available Certification: ISO
Place Style: Vertical
Highlight:

Small-Batch Production Atmosphere Box Furnace

,

Programmable Operation Atmosphere Box Furnace

Small-Batch Production Atmosphere Box Furnace Programmable Operation Atmosphere Box Furnace
Product Specifications
Attribute Value
Range of Applications Industrial
Type Electric Holding Furnace
Usage Steel Molding
Fuel Electric
Effective Chamber Dimensions 400*330*800mm (W*H*D)
Setter Plate Corundum-Mullite
Transport Package Wooden Package
Specification 850*900*1200mm (W*H*D)
Trademark Chitherm
Origin China
HS Code 8514101000
Supply Ability 50 Sets/Year
Customization Available
Certification ISO
Place Style Vertical
Equipment Overview
  • Model: HBF105-14 Sintering Furnace
  • Heating Element: Silicon molybdenum rods (acid/alkali-resistant, excellent uniformity)
  • Application: Laboratory and small-batch production processes
  • Operation Feature: Simple operation
Core Performance Parameters

Temperature Range

  • Operating Temperature: 1300°C
  • Maximum Test Temperature: 1500°C
  • Chamber Dimensions: 400×330×800mm (W×H×D)
  • Loading Device: Corundum-mullite sintering plate

Temperature Control Performance

  • Temperature Stability: ±1°C
  • Chamber Temperature Uniformity: ±5°C
  • Programmable Segments: 40 segments
  • Control Points: 1 point

Safety Protection

  • Heating and Door Interlock
  • Over-temperature, Thermocouple Break, Low-Pressure Audio-Visual Alarms

Other Parameters

  • Surface Temperature Rise: <35°C
  • Maximum Heating Power: 23kW
  • Power Requirement: 3-phase 380VAC, 50Hz, 30kVA
  • Weight: 500kg
  • Installation Dimensions: 800×900×1200mm (D×W×H)
Heating/Cooling Control Cabinet Configuration
  • Control Channels: 5+2 (5 for furnace, 2 reserved)
  • Control Instrument: Eurotherm 3504 or Japanese imported brand
  • Instrument Quantity: 7 controllers per cabinet
  • Dimensions: 800×1850×500mm (W×H×D)
  • Color: Light gray
Control System Features
  • Control Method: Power/voltage regulation
  • Core Instrument: Eurotherm 3504 or Japanese imported smart regulator
  • Functions Include:
    • PID auto-tuning
    • High-temperature limit alarm
    • Thermocouple failure indication
  • Over-temperature Protection: Audio-visual alarm + automatic heating cutoff
Key Advantages
  • High Uniformity: ±5°C chamber uniformity for precision sintering
  • Safety: Multi-alarm protection (over-temperature, thermocouple break, abnormal pressure) + interlock design
  • Flexibility: 40-segment programs + backup channels for complex processes
Standard Components
Item Specifications Quantity Notes
Kiln Main Unit Primary heating system 1 set Core equipment for thermal process
Setter Plate Material: Corundum-Mullite 1 set High-temperature resistant carrier
Installation Requirements
  1. The equipment must be installed indoors, with an ambient temperature range of -10℃ to 45℃. The indoor environment must be free of flammable gases, corrosive gases, and vapors.
  2. The equipment requires a floor space of no less than 4 square meters, with a working area length of at least 2 meters, width of at least 2 meters, and height of no less than 3 meters. The foundation must be sturdy and level, and the furnace weighs approximately 400kg.
  3. The power supply for this furnace must be a three-phase five-wire AC power line, with a voltage of 380±10% V and a frequency of 50±2% Hz. This power line is dedicated, and high-power conversion equipment such as welding machines, electric furnaces, and metal-cutting machine tools should not be connected to this distribution.
  4. The equipment must be reliably grounded.
Product Images

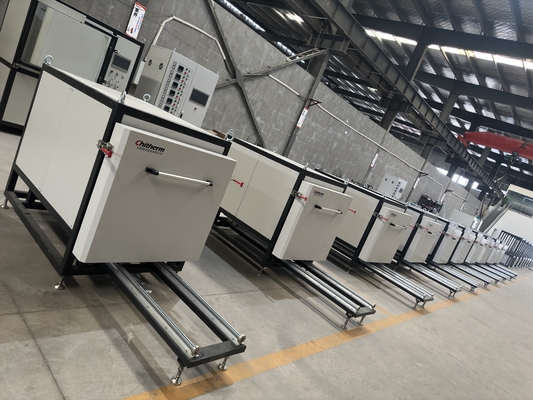

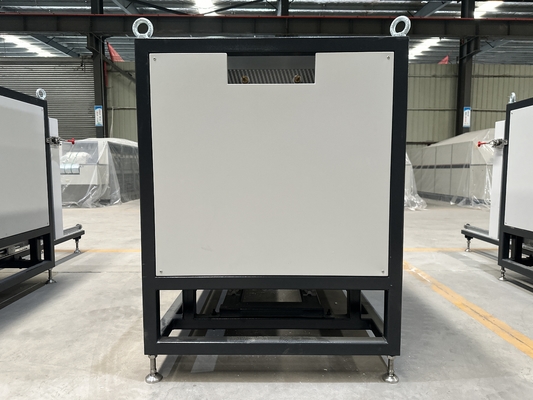

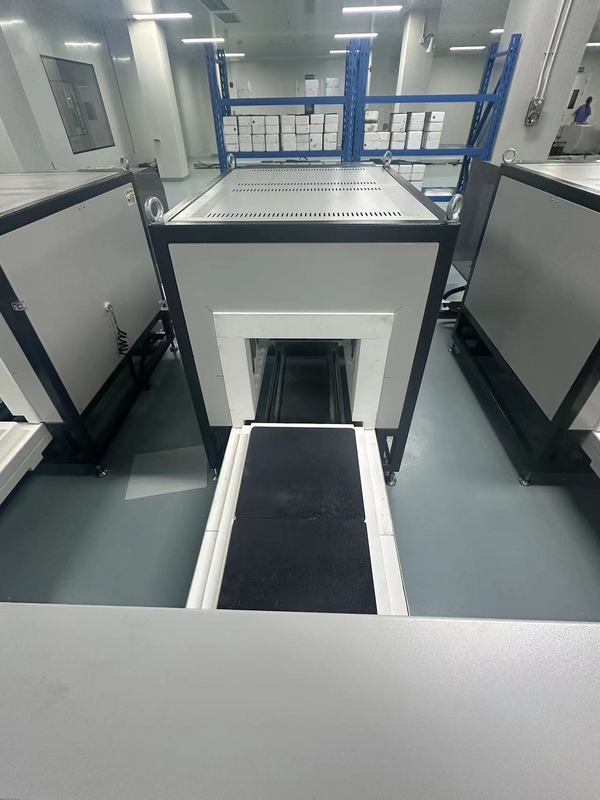

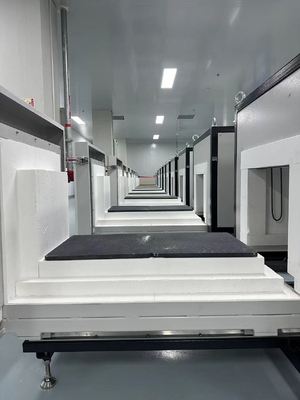

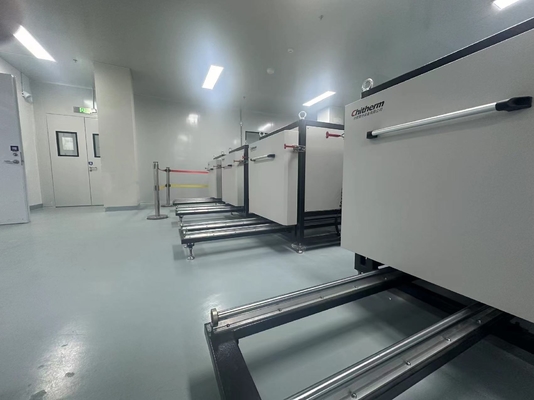

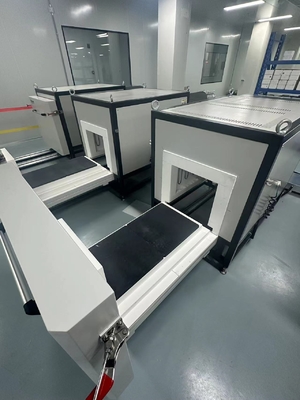

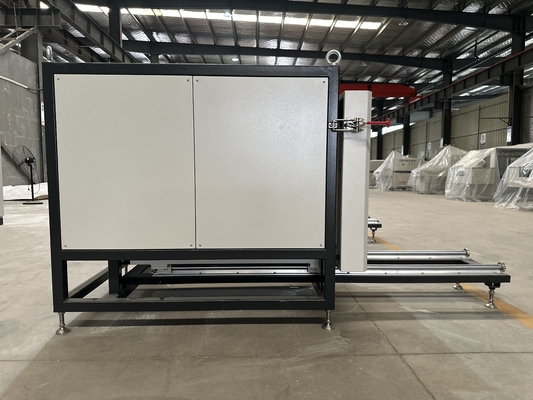

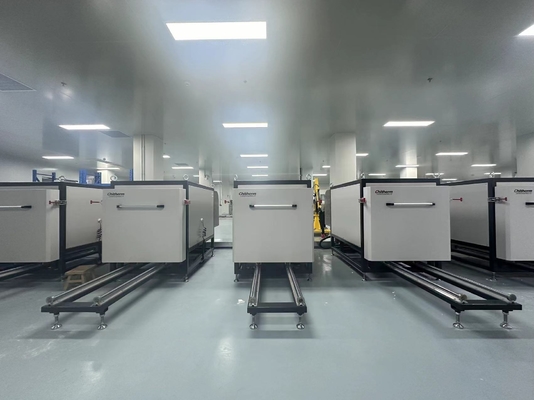

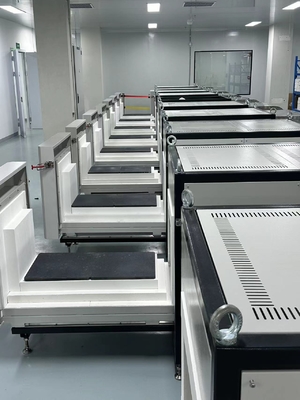

Small-Batch Production Atmosphere Box Furnace Programmable Operation Atmosphere Box Furnace 0
Small-Batch Production Atmosphere Box Furnace Programmable Operation Atmosphere Box Furnace 1
Small-Batch Production Atmosphere Box Furnace Programmable Operation Atmosphere Box Furnace 2
Small-Batch Production Atmosphere Box Furnace Programmable Operation Atmosphere Box Furnace 3
Small-Batch Production Atmosphere Box Furnace Programmable Operation Atmosphere Box Furnace 4
Small-Batch Production Atmosphere Box Furnace Programmable Operation Atmosphere Box Furnace 5
