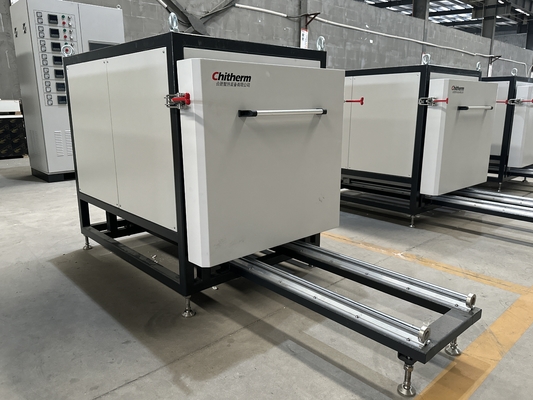

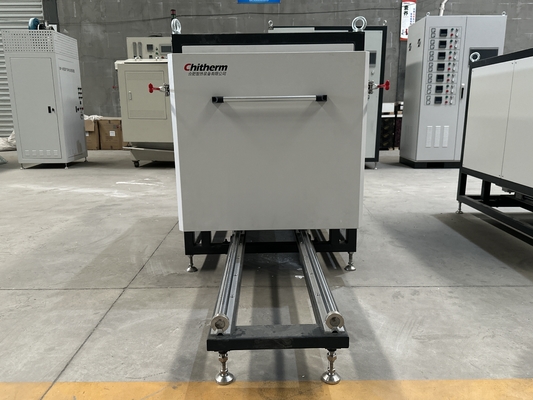

Customizable Precise Temperature Control Atmosphere Box Furnace In Laboratory

Large Image : Customizable Precise Temperature Control Atmosphere Box Furnace In Laboratory

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF105-14

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

Customizable Precise Temperature Control Atmosphere Box Furnace In Laboratory

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Steel Molding	Fuel:	Electric
Effective Chamber Dimensions:	400330800mm(WHD)	Setter Plate:	Corundum-Mullite
Transport Package:	Wooden Package	Specification:	8509001200mm (WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Customization:	Available	Certification:	ISO
Place Style:	Vertical
Highlight:	Precise Temperature Control Atmosphere Box Furnace , Customizable Atmosphere Box Furnace , Laboratory Atmosphere Box Furnace

HBF105-14 The Top-Notch Atmosphere Box Furnace for Precise Temperature Control in Laboratory and Production

Product Specifications

Attribute	Value
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Steel Molding
Fuel	Electric
Effective Chamber Dimensions	400330800mm (WHD)
Setter Plate	Corundum-Mullite
Transport Package	Wooden Package
Specification	8509001200mm (WHD)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Supply Ability	50 Sets/Year
Customization	Available
Certification	ISO
Place Style	Vertical

Product Description

Main Parameters of Sintering Furnace

Basic Information

Model: HBF105-14
Application: Laboratory and small-scale production
Refractory Properties: Acid and alkali resistant, excellent temperature uniformity in the furnace chamber

Temperature Performance

Operating Temperature: 1300°C (standard)
Maximum Test Temperature: 1500°C (limit)
Temperature Stability: ±1°C
Furnace Chamber Temperature Uniformity: ±5°C

Furnace Chamber & Heating System

Effective Dimensions: 400×330×800mm (W×H×D)
Burning Plate Material: Corundum mullite
Heating Element: Silicon molybdenum rods (high-temperature resistant, oxidation-proof)

Safety & Protection

Alarm Functions: Over-temperature, thermocouple break, low-pressure audible and visual alarms
Interlock Design: Heating and furnace door switch linkage (anti-misoperation)
Surface Temperature Rise: <35°C (safety protection)

Electrical & Mechanical Parameters

Power: Maximum heating power 23kW
Power Supply: Three-phase 380VAC, 50Hz, 30kVA
Weight: 500kg
Installation Dimensions: 800×900×1200mm (D×W×H)

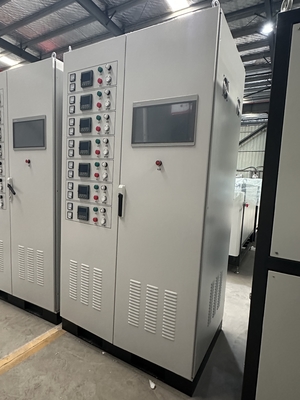

Temperature Control Cabinet Configuration

Control Channels

Total Channels: 5+2 (5 channels for sintering furnace, 2 spare channels)

Instrumentation & Control

Temperature Control Instrument: Eurotherm 3504 or imported from Japan (high-precision intelligent regulation)
Number of Instruments: 7 per cabinet (corresponding to 5+2 channels)
Control Method: Power and voltage regulation (precise temperature control)

Safety Features

Alarm Protection: PID auto-tuning, high-temperature upper limit alarm, thermocouple failure indication
Over-temperature Response: Audible and visual alarm + immediate heating cutoff

Physical Parameters

Dimensions: 800×1850×500mm (W×H×D)
Color: Light gray

Core Advantages

High Uniformity: ±5°C temperature field uniformity suitable for precision sintering processes
Multiple Protections: Interlock design + triple alarms (over-temperature, thermocouple break, pressure) ensure safety
Flexible Expansion: Spare control channels support future upgrades

Item	Specifications	Quantity	Notes
Kiln Main Unit	Primary heating system	1 set	Core equipment for thermal process
Setter Plate	Material: Corundum-Mullite	1 set	High-temperature resistant carrier

Installation Requirements

The equipment must be installed indoors, with an ambient temperature range of -10℃ to 45℃. The indoor environment must be free of flammable gases, corrosive gases, and vapors.
The equipment requires a floor space of no less than 4 square meters, with a working area length of at least 2 meters, width of at least 2 meters, and height of no less than 3 meters. The foundation must be sturdy and level, and the furnace weighs approximately 400kg.
The power supply for this furnace must be a three-phase five-wire AC power line, with a voltage of 380±10% V and a frequency of 50±2% Hz. This power line is dedicated, and high-power conversion equipment such as welding machines, electric furnaces, and metal-cutting machine tools should not be connected to this distribution.
The equipment must be reliably grounded.
