HBF105-14 Simple Operation Atmosphere Box Furnace High Uniformity Atmosphere Box Furnace

HBF105-14 Simple Operation Atmosphere Box Furnace High Uniformity Atmosphere Box Furnace
HBF105-14 Simple Operation Atmosphere Box Furnace High Uniformity Atmosphere Box Furnace
HBF105-14 Simple Operation Atmosphere Box Furnace High Uniformity Atmosphere Box Furnace HBF105-14 Simple Operation Atmosphere Box Furnace High Uniformity Atmosphere Box Furnace HBF105-14 Simple Operation Atmosphere Box Furnace High Uniformity Atmosphere Box Furnace HBF105-14 Simple Operation Atmosphere Box Furnace High Uniformity Atmosphere Box Furnace HBF105-14 Simple Operation Atmosphere Box Furnace High Uniformity Atmosphere Box Furnace HBF105-14 Simple Operation Atmosphere Box Furnace High Uniformity Atmosphere Box Furnace HBF105-14 Simple Operation Atmosphere Box Furnace High Uniformity Atmosphere Box Furnace HBF105-14 Simple Operation Atmosphere Box Furnace High Uniformity Atmosphere Box Furnace HBF105-14 Simple Operation Atmosphere Box Furnace High Uniformity Atmosphere Box Furnace

Large Image :  HBF105-14 Simple Operation Atmosphere Box Furnace High Uniformity Atmosphere Box Furnace

Product Details:
Place of Origin: China
Brand Name: Chitherm
Model Number: HBF105-14
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Customized
Delivery Time: Customized
Payment Terms: Customized
Supply Ability: Customized
Contact Now

HBF105-14 Simple Operation Atmosphere Box Furnace High Uniformity Atmosphere Box Furnace

Description
Range Of Applications: Industrial Type: Electric Holding Furnace
Usage: Steel Molding Fuel: Electric
Effective Chamber Dimensions: 400*330*800mm(W*H*D) Setter Plate: Corundum-Mullite
Transport Package: Wooden Package Specification: 850*900*1200mm (W*H*D)
Trademark: Chitherm Origin: China
HS Code: 8514101000 Supply Ability: 50 Sets/Year
Customization: Available Certification: ISO
Place Style: Vertical
Highlight:

HBF105-14 Atmosphere Box Furnace

,

High Uniformity Atmosphere Box Furnace

,

Simple Operation Atmosphere Box Furnace

HBF105-14 Simple Operation Atmosphere Box Furnace High Uniformity Atmosphere Box Furnace
Product Attributes
Attribute Value
Range of Applications Industrial
Type Electric Holding Furnace
Usage Steel Molding
Fuel Electric
Effective Chamber Dimensions 400*330*800mm(W*H*D)
Setter Plate Corundum-Mullite
Transport Package Wooden Package
Specification 850*900*1200mm (W*H*D)
Trademark Chitherm
Origin China
HS Code 8514101000
Supply Ability 50 Sets/Year
Customization Available
Certification ISO
Place Style Vertical
Product Description
HBF105-14 Simple Operation Atmosphere Box Furnace High Uniformity Atmosphere Box Furnace 0
I. Equipment Overview

Model: HBF105-14 Sintering Furnace

Key Features:

  • Silicon molybdenum heating elements (acid/alkali-resistant, excellent uniformity)
  • Simple operation, suitable for labs and small-batch production
  • Integrated intelligent control with heating/cooling control cabinet
II. Technical Specifications
Item Parameter
Operating Temperature 1300°C (Max tested: 1500°C)
Chamber Dimensions (W×H×D) 400×330×800mm
Boat Material Corundum mullite
Temperature Stability ±1°C
Temperature Uniformity ±5°C
Programmable Segments 40 segments
Safety Alarms Overheat/thermocouple failure/low pressure audio-visual alarms; heating-door interlock
Surface Temperature Rise ＜35°C
Maximum Power 23kW
Power Supply 3-phase 380VAC, 50Hz, 30kVA
Weight 500kg
Installation Dimensions (D×W×H) 800×900×1200mm

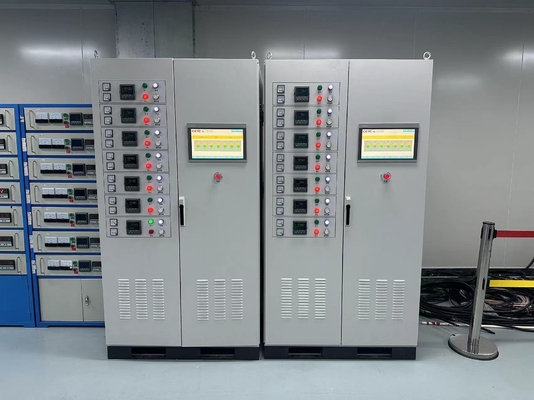

III. Heating/Cooling Control Cabinet
  • Control Channels: 5+2 (5 for furnace, 2 spare)
  • Controllers: Eurotherm 3504 or Japanese import (7 per cabinet)
  • Dimensions: 800×1850×500mm (W×H×D)
  • Color: Light gray
IV. Control System

Core Functions:

  • Smart Regulators: Eurotherm 3504/Japanese import with PID auto-tuning, overheat alerts, thermocouple failure indication
  • Control Mode: Power/voltage regulation
  • Overheat Protection: Audio-visual alarm + instant power cutoff
V. Key Advantages
  • High Uniformity: ±5°C for precision sintering processes
  • Safety Design: Multi-level alarms (overheat/thermocouple failure) & interlock protection
  • Scalability: Spare control channels for future upgrades
Item Specifications Quantity Notes
Kiln Main Unit Primary heating system 1 set Core equipment for thermal process
Setter Plate Material: Corundum-Mullite 1 set High-temperature resistant carrier
Installation Requirements
  1. The equipment must be installed indoors, with an ambient temperature range of -10℃ to 45℃. The indoor environment must be free of flammable gases, corrosive gases, and vapors.
  2. The equipment requires a floor space of no less than 4 square meters, with a working area length of at least 2 meters, width of at least 2 meters, and height of no less than 3 meters. The foundation must be sturdy and level, and the furnace weighs approximately 400kg.
  3. The power supply for this furnace must be a three-phase five-wire AC power line, with a voltage of 380±10% V and a frequency of 50±2% Hz. This power line is dedicated, and high-power conversion equipment such as welding machines, electric furnaces, and metal-cutting machine tools should not be connected to this distribution.
  4. The equipment must be reliably grounded.
Product Images

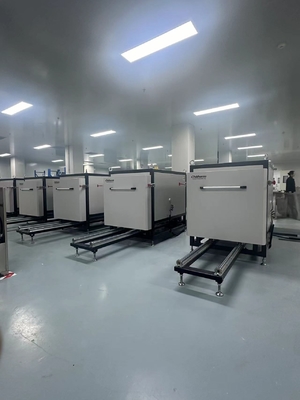

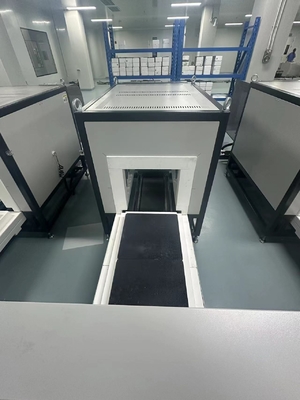

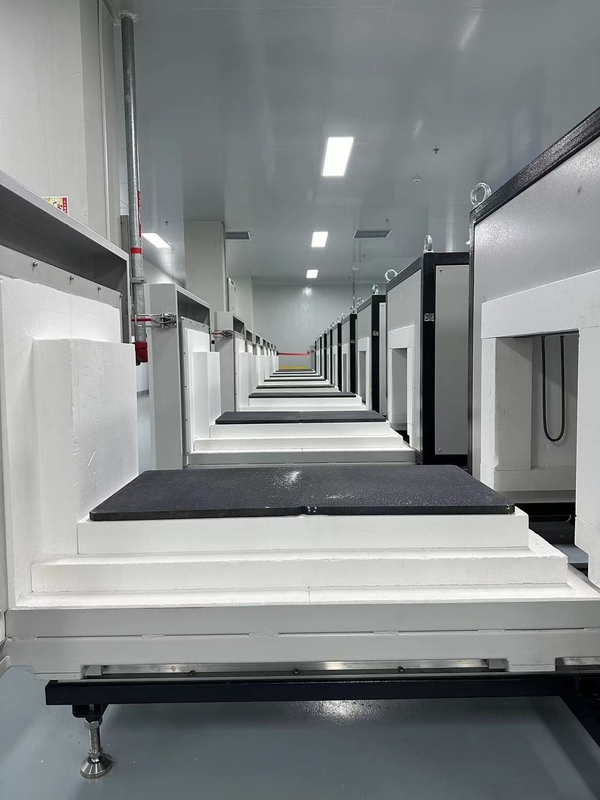

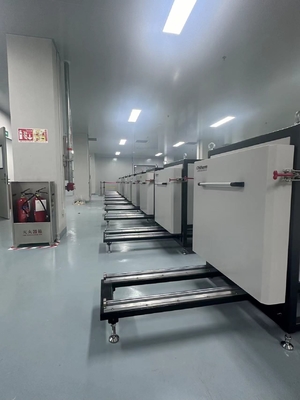

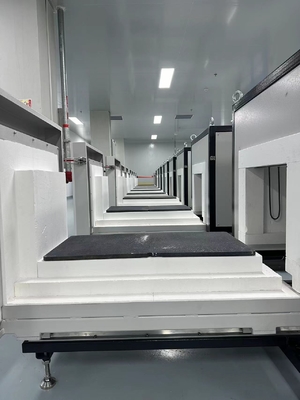

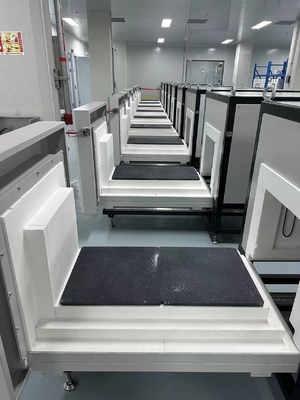

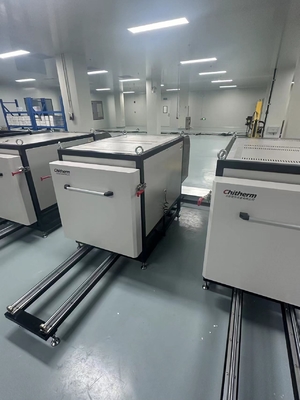

HBF105-14 Simple Operation Atmosphere Box Furnace High Uniformity Atmosphere Box Furnace 1 HBF105-14 Simple Operation Atmosphere Box Furnace High Uniformity Atmosphere Box Furnace 2 HBF105-14 Simple Operation Atmosphere Box Furnace High Uniformity Atmosphere Box Furnace 3 HBF105-14 Simple Operation Atmosphere Box Furnace High Uniformity Atmosphere Box Furnace 4 HBF105-14 Simple Operation Atmosphere Box Furnace High Uniformity Atmosphere Box Furnace 5
