5+2 Design Voltage Modulation Atmosphere Box Furnace Energy-Efficient Atmosphere Box Furnace

Large Image : 5+2 Design Voltage Modulation Atmosphere Box Furnace Energy-Efficient Atmosphere Box Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF105-14

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now Chat Now

5+2 Design Voltage Modulation Atmosphere Box Furnace Energy-Efficient Atmosphere Box Furnace

Description

Type:	Electric Holding Furnace	Usage:	Steel Molding
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Certification:	ISO	Place Style:	Vertical
Highlight:	5+2 design atmosphere box furnace , voltage modulation box furnace , energy-efficient atmosphere box furnace

5+2 Design Voltage Modulation Atmosphere Box Furnace Energy-Efficient Atmosphere Box Furnace

Product Specifications

Attribute	Value
Type	Electric Holding Furnace
Usage	Steel Molding
HS Code	8514101000
Supply Ability	50 Sets/Year
Certification	ISO
Place Style	Vertical

Technical Specifications

Sintering Furnace Parameters

Equipment Name/Model: HBF105-14 Sintering Furnace

Dimensions: 850mm (W) × 900mm (H) × 1200mm (D), light gray exterior

Temperature Performance

Rated Operating Temperature: 1300°C (recommended range for standard processes)
Maximum Limit Temperature: 1500°C (short-term achievable with consideration for material tolerance and lifespan impact)

Furnace Structure & Materials

Effective Loading Space: 400mm (W) × 330mm (H) × 800mm (D), suitable for small to medium-sized workpiece sintering
Loading Platform: Corundum-mullite sintering plate (high-temperature resistant with excellent thermal shock resistance and chemical stability)
Refractory Materials:
- Inner Layer: Polycrystalline mullite (high thermal insulation, superior thermal shock resistance)
- Outer Layer: Ceramic fiberboard for auxiliary insulation (lightweight with significant energy-saving effect)

Monitoring & Expansion

Pre-installed thermocouple ports and temperature monitoring holes, supporting multi-point temperature measurement or future functional upgrades.

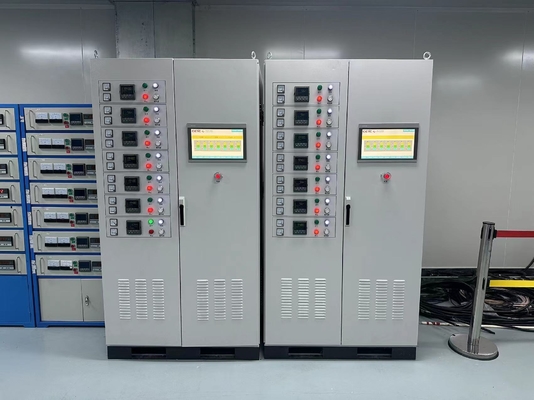

Heating/Cooling Control Cabinet

Equipment Name: Heating/Cooling Control Cabinet

Dimensions: 800mm (W) × 1850mm (H) × 500mm (D), light gray exterior

Core Control Unit

Temperature Control Channels: 5+2 design (5 channels directly connected to the furnace, 2 channels reserved for flexibility in process upgrades)
Number of Controllers: 7 temperature controllers per cabinet (independent control per channel for precision and stability)
Controller Models: Eurotherm 3504 (internationally renowned brand) or Japanese-made intelligent regulators
Control Method: Power/voltage modulation (precise heating power adjustment, minimizing temperature fluctuations)

Safety Protection Features

Intelligent Alarms & Protection:
- PID auto-tuning (optimizes heating curves for efficiency)
- High-temperature limit alarm (instant alert for exceeding set temperatures)
- Thermocouple failure indicator (prevents control anomalies due to sensor faults)
Over-Temperature Handling: Audible/visual alarm + immediate power cutoff (dual protection for equipment and workpiece safety)
