Customization Industrial Hot Air Drying Oven Nitrogen Hot Air Debinding Furnace

Customization Industrial Hot Air Drying Oven Nitrogen Hot Air Debinding Furnace
Customization Industrial Hot Air Drying Oven Nitrogen Hot Air Debinding Furnace
Customization Industrial Hot Air Drying Oven Nitrogen Hot Air Debinding Furnace Customization Industrial Hot Air Drying Oven Nitrogen Hot Air Debinding Furnace

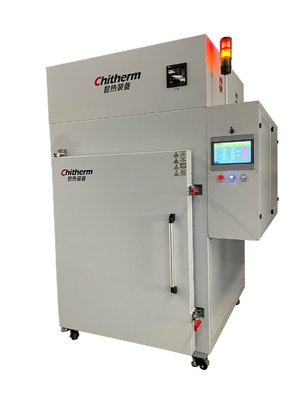

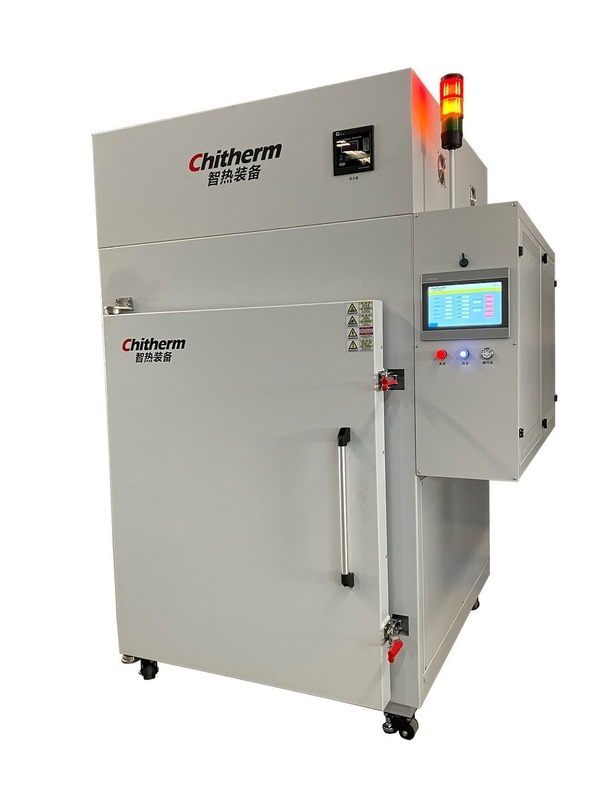

Large Image :  Customization Industrial Hot Air Drying Oven Nitrogen Hot Air Debinding Furnace

Product Details:
Place of Origin: China
Brand Name: Chitherm
Model Number: Hrf800-06NO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Customized
Delivery Time: Customized
Payment Terms: Customized
Supply Ability: Customized
Contact Now Chat Now

Customization Industrial Hot Air Drying Oven Nitrogen Hot Air Debinding Furnace

Description
Atmosphere: Nitrogen Effective Chamber Dimensions: 800*1000*1000mm(W*H*D)
Transport Package: Wooden Packaging Specification: 1500*1630*1350mm(W*H*D)
Trademark: Chitherm Origin: China
Highlight:

industrial hot air drying oven

,

nitrogen debinding furnace

,

customizable hot air oven

Customization Industrial Hot Air Drying Oven Nitrogen Hot Air Debinding Furnace
Product Specifications
Attribute Value
Atmosphere Nitrogen
Effective Chamber Dimensions 800*1000*1000mm(W*H*D)
Transport Package Wooden Packaging
Specification 1500*1630*1350mm(W*H*D)
Trademark Chitherm
Origin China
HRF800-06NO Nitrogen Atmosphere Drying Furnace
Technical Specifications
1. Performance Parameters
Customization Industrial Hot Air Drying Oven Nitrogen Hot Air Debinding Furnace 0
  • Temperature Range: 550°C (rated) / 600°C (max)
  • Chamber Dimensions: 800×1000×1000mm (W×H×D)
  • Load Capacity: 300kg
  • Temperature Control: ±1°C stability / ±3°C uniformity
  • Heating System: Custom squirrel-cage heaters
  • Atmosphere Options: Air/Nitrogen (99.999% purity)
  • Control System: 40 programmable steps with 5 monitoring points
2. Key Features
  • Precision Control: Japanese-sourced temperature module
  • Safety Protection: Over-temperature and thermocouple failure alarms
  • Energy Efficient: ≤12kW heat preservation power
  • Durable Construction: SUS316L chamber material
  • Compact Design: 1500×1630×1350mm footprint (excluding accessories)
3. Standard Configuration
Main Components
  • Furnace main unit (1 set)
  • Electric purification furnace (50m³ capacity)
  • Siemens PLC control system
  • 10-inch touch screen interface
  • Oxygen analyzer (CI-PC96)
Heating System
  • Custom squirrel-cage heaters (1 set + spare)
  • Type K thermocouples (7 pcs total)
  • Solid state relay (1 pc + spare)
Accessories
  • Circulation fan (5000m³/h)
  • Chiller unit (0.5m³/h)
  • 1kVA UPS backup
4. Operating Requirements
  • Power Supply: >40kVA, 3-phase 380V
  • Gas Supply: 0.2-0.4MPa clean air/N₂ (10-30m³/h)
  • Installation Space: >6m² area, 3000mm height
  • Environmental Conditions: 0-40°C, ≤80% RH
Company Profile

Hefei Chitherm Equipment specializes in thermal processing solutions for:

  • Advanced ceramics and electronic materials
  • Powder metallurgy and additive manufacturing
  • New energy applications (battery materials)
  • Various heat treatment processes
Service Advantages
  • Customized furnace solutions
  • Comprehensive technical support
  • Global project experience
  • ISO-certified manufacturing
