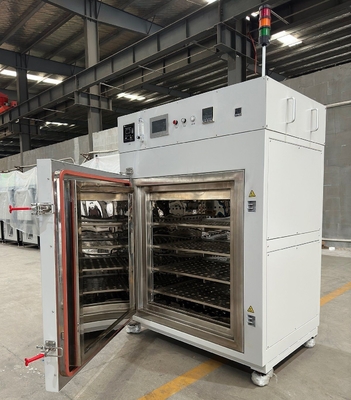

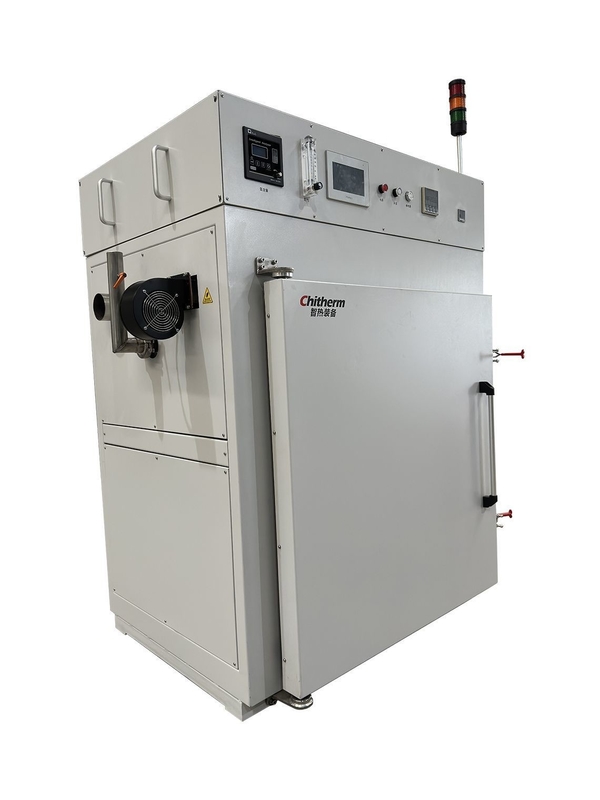

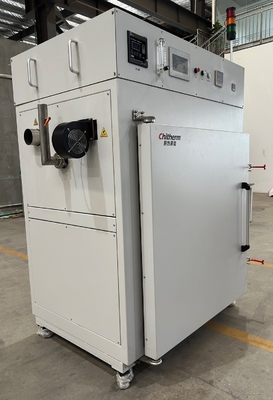

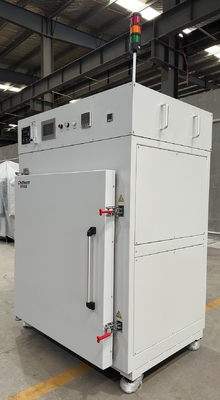

Electric Industrial Vacuum Drying Oven Muffle Furnace With Nitrogen Gas

Large Image : Electric Industrial Vacuum Drying Oven Muffle Furnace With Nitrogen Gas

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	Hrf535-02n

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

Electric Industrial Vacuum Drying Oven Muffle Furnace With Nitrogen Gas

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Drying	Fuel:	Electric
Atmosphere:	Nitrogen	Effective Chamber Dimensions:	850700900mm(WHD)
Transport Package:	Wooden Packaging	Specification:	144019301080mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Customization:	Available	Certification:	ISO
Place Style:	Vertical
Highlight:	Muffle industrial vacuum drying oven , Nitrogen Gas industrial vacuum drying oven , Electric muffle furnace with nitrogen gas

Electric Holding Furnace Hrf535-02n Nitrogen Dryer 850*700*900mm W*D*H Drying Oven Hot Air for Industrial

1. Applications:

Application fields: Widely used for drying, curing, and other processes of electronic products and similar items under constant temperature and oxygen-free environments.

2. Mainly Specifics:

Rated Temp.: RT+10 ~200ºC

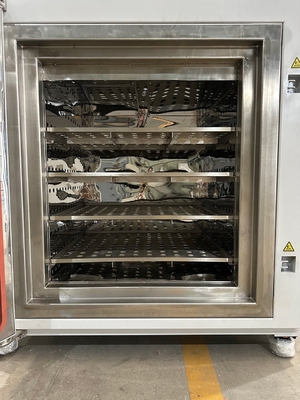

Effective Dimensions: 850×700×900mm(W×D×H)
Heating Method: Custom-designed squirrel cage heater with built-in imported heating wire.

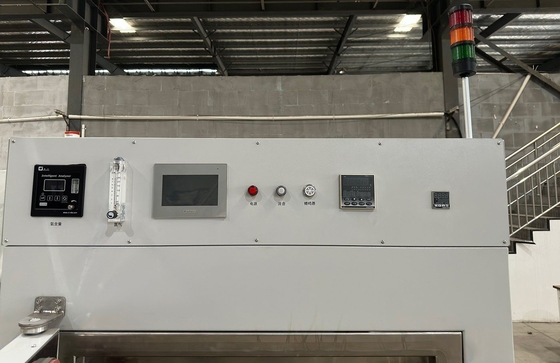

Process Atmosphere: High-purity nitrogen gas can be introduced into the furnace chamber, with the inlet flow rate controlled by a glass rotameter (range: 24-240 LPM).
Temperature Control Stability: ±1ºC
Temperature Uniformity: better than ±3ºC (insulation 1 hour at 200ºC test)
Thermocouple: Type K
Temperature control points: 1
Temperature monitoring points: 1 point
Process Steps: 20 steps
Exhaust: One exhaust port on top
Alarm System: Audible and visual alarm protection against overtemperature, thermocouple break, motor overload, and other faults.
Max Heating Power: 10kW
Insulation Power: ≤ 5kW
Surface Temperature Rise: <35ºC
Furnace Dimensions: about 1550mm×1630mm×1050mm(W×H×D);
Appearance Color: light gray

3. Delivery List
	Item	Note	QTY
Basic Compositions	Dryer		1 PC
	Certificates of Inspection	Dryer and major purchased components	1 Set
	Technical Documents	Manual instructions, technical documents of major purchased components, etc	1 Set
Key Parts	Heating Elements	heating wire.	1 Set
	Circulating fan	4300m³/h	1 PC
	Temperature Controller		1 Set
	Blower	5.5m³/min	1 Set
	Monitor	Touch screen	1 Set
Spares	SSR		1 PC

4. Facility Requirements
4.1 Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
4.2 Process air conditions: 99.999% purity nitrogen, pressure 0.2 - 0.4Mpa, gas consumption 5-15m³ /h.
4.3 Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 15m³ /h.
4.4 Ground requirements: level, no obvious vibration, bearing capacity >500Kg/m².
4.5 Power conditions: capacity greater than14kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
4.6 Installation site: 2500mm×2100mm×3000mm (W×H×D), installation area greater than 5m².
