Nitrogen Atmosphere Industrial Hot Air Electric Drying Oven Decarburisation Furnace

Large Image : Nitrogen Atmosphere Industrial Hot Air Electric Drying Oven Decarburisation Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	Hrf512-07

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

Nitrogen Atmosphere Industrial Hot Air Electric Drying Oven Decarburisation Furnace

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Drying	Fuel:	Electric
Atmosphere:	Nitrogen	Effective Chamber Dimensions:	800800800mm(WHD)
Thermocouple Type:	K Type	Transport Package:	Wooden Packaging
Specification:	150019302000mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Highlight:	Nitrogen Atmosphere electric drying oven , Decarburisation electric drying oven , Decarburisation industrial drying oven

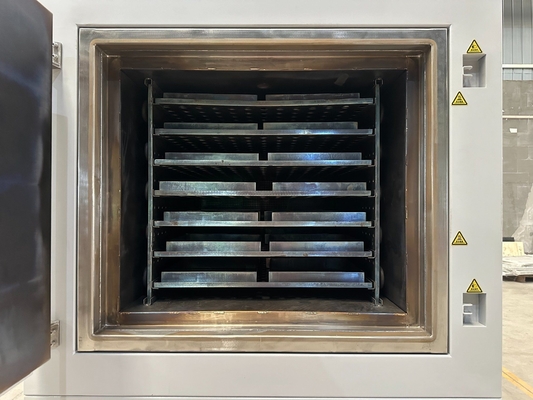

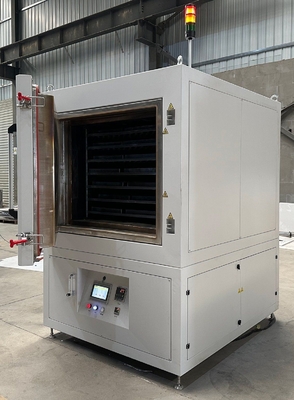

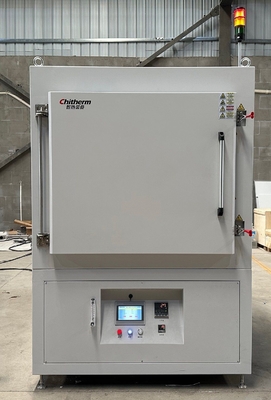

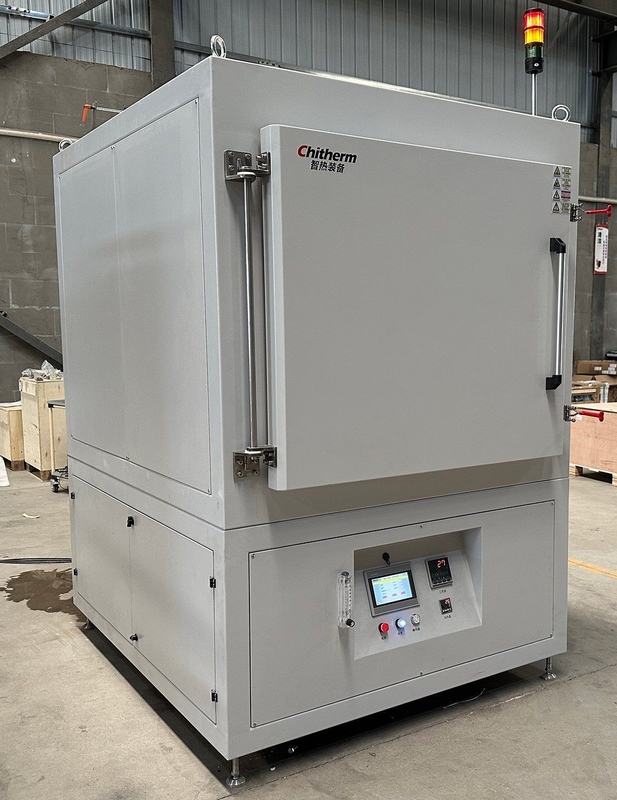

Hrf512-07 800 times 800 times 800mm w*h*d Nitrogen Atmosphere Hot Air Decarburisation Furnace with Stainless Steel Heater

1. Applications:

Powder materials, magnetic materials, ceramics, glass, metals, plastics, and post-3D printing drying, curing, debinding, tempering, annealing, aging, preheating, and age hardening.

Hrf512-07 Hot Air Decarburisation Furnace, 800× 800× 800mm (w*h*d) , Stainless Steel Heater

2. Mainly Specifics:

Rated Temp.: 650ºC
Max Temp.: 700ºC
Effective Dimensions: 800 × 800 × 800mm(W×H×D)
Heating Method: Stainless Steel Heater.
Process Atmosphere: Air.
Temperature Control Stability: ±1ºC.
Temperature Uniformity: better than ±5ºC (insulation 1 hour at 650ºC test).
Thermocouple: Type K.
Temperature control points: 1
Temperature measurement points: 1 point.
Process Steps: 4 × 16 steps.
Exhaust: One exhaust port on top,DN50,The exhaust vent size can be manually adjusted.
Alarm System: over temperature, thermocouple failure and other abnormal conditions will activate sound and light alarm protection
Max Heating Power: 36kW.
Heating rate: ≤5°C/min (operable at 1°C/min).
Insulation Power: ≤ 18kW.
Surface Temperature Rise: ≤ 35ºC.
Weight: about 1200kg.
Furnace Dimensions: about 1500×1930×2000mm (W×H×D,No chimney included).
Appearance Color: light gray.

3. Delivery List
	Item	Note	QTY
Basic Compositions	Dryer		1 PC
	Certificates of Inspection	Dryer and major purchased components	1 Set
	Technical Documents	Manual instructions, technical documents of major purchased components, etc	1 Set
Key Parts	Stainless Steel Heater		1 Set
	Temperature Controller		2 Set
	Touch Screen		1 Set
	circulating fan
Spares	SSR		1 PC
	Stainless Steel Heater		1 Set
	Seal gasket		2 Set

4. Facility Requirements
4.1 Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
4.2 Inlet water conditions: Clean and non-corrosive, water temperature ≤ 23 °C, inlet pressure 0.2-0.4 MPa, flow rate approximately 2-6 L/min.
4.3 Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 15m³ /h;
4.4 Ground requirements: level, no obvious vibration, bearing capacity >300Kg/m².
4.5 Power conditions: capacity greater than 50kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
4.6 Installation site: 2000mm×3000mm×3000mm (W×H×D), installation area greater than 6m².
