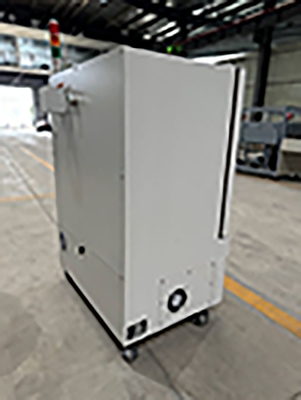

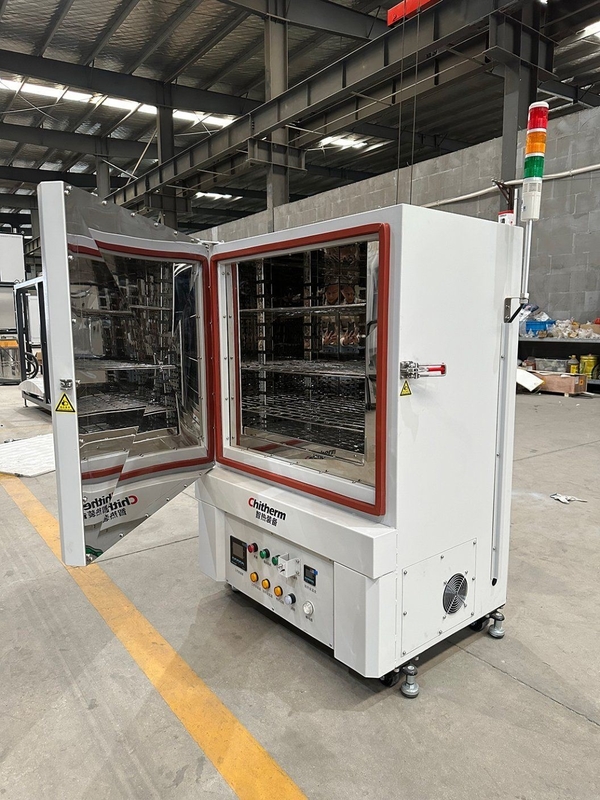

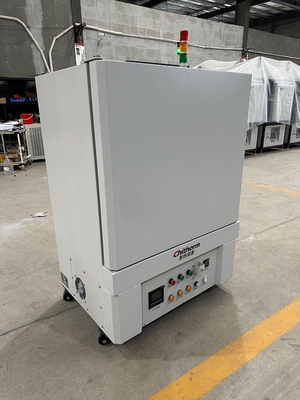

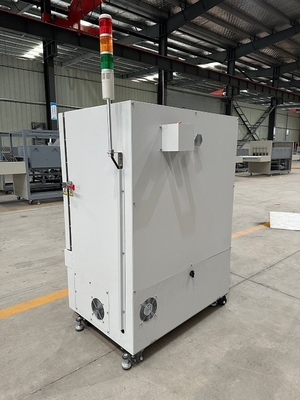

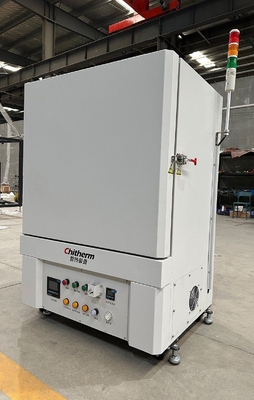

4kW Industrial Vacuum Hot Air Drying Oven Customized for Decarburisation

Large Image : 4kW Industrial Vacuum Hot Air Drying Oven Customized for Decarburisation

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	SZC-180

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

4kW Industrial Vacuum Hot Air Drying Oven Customized for Decarburisation

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Drying	Fuel:	Electric
Atmosphere:	Air	Effective Chamber Dimensions:	600500600mm(WHD)
Transport Package:	Wooden Packaging	Specification:	144019301080mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Customization:	Available	Certification:	ISO
Place Style:	Vertical
Highlight:	4kW Hot Air Drying Oven , Decarburisation Hot Air Drying Oven , 4kW industrial vacuum oven

SZC-180 Hot Air Drying Oven Maximum Temperature 200 deg C Customizable for Customer Requirements

Technical Specifications:

Equipment Model: SZC-180 Type Clean Drying Oven
Maximum Temperature: 150°C, Operating Temperature: 85 - 150°C
Oven Dimensions: 900mm × 650mm × 1150 mm (L × W × H)
Chamber Dimensions: 600mm × 500mm × 600mm (L × W × H)
Design Power: 4 kW
Electrical Supply: 220V, 50Hz
Construction Material: Mirror Stainless Steel
Heating Element: High-quality heating wire, lightweight fiber material with low thermal capacity, excellent insulation properties, fast heating, energy-saving, time-saving, and easy environmental temperature control.
Insulation Material: Aluminum Silicate Fiber Blanket

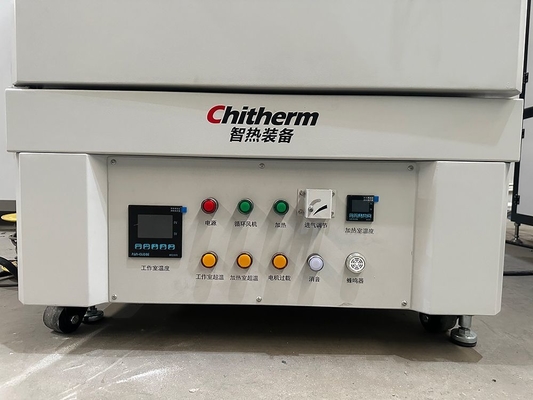

Control Method: Imported single-loop intelligent temperature controller with PID control, auto-tuning of parameters.
Number of Temperature Control Zones: 1
Alarm Protection: Over-temperature, circulating fan failure, etc., with audio-visual alarm protection and automatic power cutoff. After a high-temperature alarm cuts off the power, the heating power can only be manually restored when the temperature drops to the normal operating range before restarting.
Temperature Uniformity: ≤±2.

Facility Requirements

1 .Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
2.Ventilation system: Non-contact connection to the user's exhaust system, with an exhaust capacity greater than 20 m³/h.
3 .Floor: Level, without significant vibration, load-bearing capacity > 500 Kg
4 .Power conditions: Capacity greater than 6 KVA, three-phase five-wire, voltage 220/380V, frequency 50Hz. Live wire: yellow, green, red; neutral wire: blue; earth wire: yellow-green. This power line is a dedicated line, please distribute power separately. Power sources for precision instruments and large power conversion equipment such as welding machines, electric furnaces, metal cutting machine tools, etc., should not be connected to this distribution system.
5. Installation site: 1800×1200mm×1500mm (L×W×H), installation area greater than 2 m²
Hot Air Drying Oven with a Maximum Temperature of 200° C
