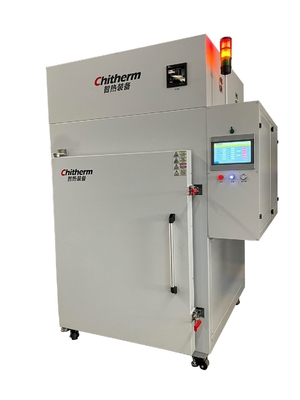

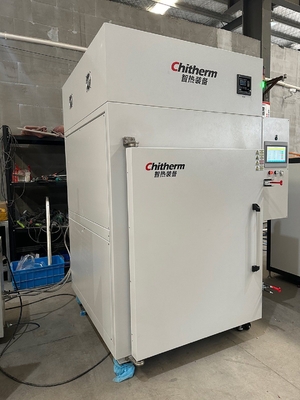

HRF800-06NO Hot Air Debinding Furnace for Ceramic Substrates
Product Specifications
| Attribute | Value |
| Range of Applications | Industrial |
| Type | Electric Holding Furnace |
| Fuel | Electric |
| Atmosphere | Nitrogen |
| Effective Chamber Dimensions | 800*1000*1000mm(W*H*D) |
| Transport Package | Wooden Packaging |
| Specification | 1500*1630*1350mm(W*H*D) |
| Trademark | Chitherm |
| Origin | China |
| HS Code | 8514101000 |
| Supply Ability | 50 Sets/Year |
| Customization | Available |
| Certification | ISO |
| Place Style | Vertical |
Product Overview
The HRF800-06NO Hot Air Debinding Furnace is a high-efficiency binder removal system specifically designed for ceramic substrates, electronic components, and advanced ceramic materials. Utilizing high-temperature hot air circulation technology, it enables precise temperature and atmosphere control to ensure complete decomposition and volatilization of organic binders while preventing substrate deformation or contamination.
Application Field
Widely used for debinding processes of ceramic substrates and related materials.
Technical Specifications
- Rated Temperature: 550ºC
- Maximum Temperature: 600ºC

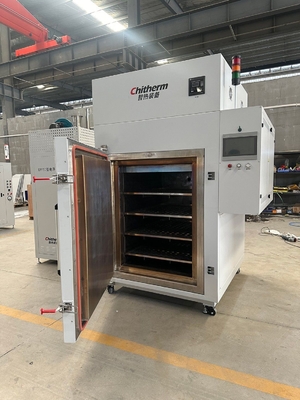

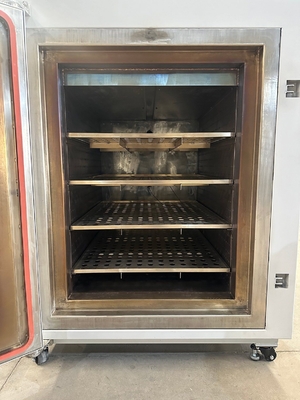

- Chamber Dimensions: 800*1000*1000mm (W*H*D)
- Chamber Load Capacity: 300kg
- Chamber Material: SUS316L
- Heating Elements: Customized Squirrel-Cage Heaters
- Temperature Stability: ±1ºC
- Temperature Uniformity: ±3ºC (Tested at 550ºC plateau, 1h stabilization under no-load conditions)
- Thermocouple Type: Type K
- Working Atmosphere: Air/Nitrogen
- Program Steps: 40
- Temperature Control Points: 1
- Monitoring Points: 1
- Real-Time Monitoring Points: 5 (for actual chamber temperature tracking)
- Alarm Protections: Audible/visual alarms for over-temperature and thermocouple failure
- Surface Temperature Rise: <35ºC
- Maximum Heating Power: 24kW
- Heat Preservation Power: ≤12kW

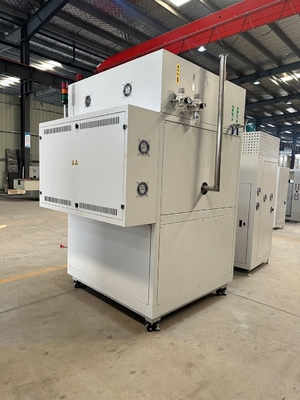

- Overall Dimensions (Reference): 1500mm*1630mm*1350mm (W*H*D), excluding fan and chimney
- Equipment Weight: Approx. 1200kg
- Equipment Color: Light Gray
Delivery Checklist
| Name | Key Contents | Qty |
| Basic Components | |
| Furnace Main Unit | | 1 set |
| Electric Purification Furnace | Max. capacity 50m³ | 1 set |
| Inspection Certificate | Certificates of major purchased components | 1 set |
| Technical Documentation | Manuals, technical files for purchased parts | 1 set |
| Critical Components | |
| Heater | Squirrel-Cage Type | 1 set |
| Control Thermocouple | Type K | 1 pc |
| Measurement Thermocouple | Type K | 1 pc |
| Monitoring Thermocouples | Type K | 5 pcs |
| Temperature Control Module | Japan-sourced | 1 set |
| PLC | Siemens | 1 set |
| UPS | 1kVA | 1 set |

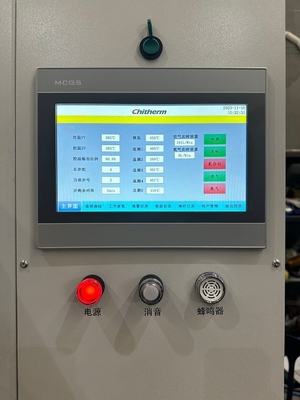

| Touch Screen | 10-inch | 1 set |
| Oxygen Analyzer | CI-PC96 | 1 set |
| Circulation Fan | Max. airflow 5000m³/h | 1 set |
| Chiller Unit | 0.5m³/h | 1 set |
| Spare Parts | |
| Solid State Relay | | 1 pc |
| Heater | | 1 pc |
Operating Conditions
- Environmental Conditions: Temperature 0-40ºC, Humidity ≤80% RH, non-corrosive gases, no strong airflow disturbance
- Gas Source Requirements: Clean, dry, oil-free compressed air or high-purity nitrogen gas (purity 99.999%), inlet pressure 0.2-0.4 MPa, gas consumption 10-30 m³/h
- Exhaust System: Non-contact interface with user exhaust system, exhaust capacity >30 m³/h
- Floor Requirements: Level, free from significant vibrations, load-bearing capacity >600 kg/m²
- Power Supply: Capacity >40 kVA, 3-phase 5-wire system (voltage 220/380V, frequency 50Hz)
- Installation Space: 2000mm*2600mm*3000mm (W*D*H), installation area exceeding 6 m²
Manufacturer Information
Hefei Chitherm Equipment Co., Ltd. is an advanced equipment supplier specializing in the research and development, design, manufacturing, sales, maintenance, and service of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces. Our product range encompasses bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, bogie hearth furnaces, rotary furnaces, roller hearth furnaces, and pusher furnaces, which are extensively applied in fields such as advanced ceramics, electronic components, thick-film circuits, additive manufacturing, powder metallurgy, new energy, and photovoltaics.
Frequently Asked Questions
What products does Chitherm offer?
We provide customers with high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.
What pre-sales services does Chitherm provide?
We offer timely consultation services to help customers select the most suitable products, along with highly customizable solutions to meet your specific requirements.
What are Chitherm's core strengths?
As a high-tech enterprise integrating R&D, manufacturing, and sales, Chitherm possesses patented technologies and core resources to deliver superior solutions.
