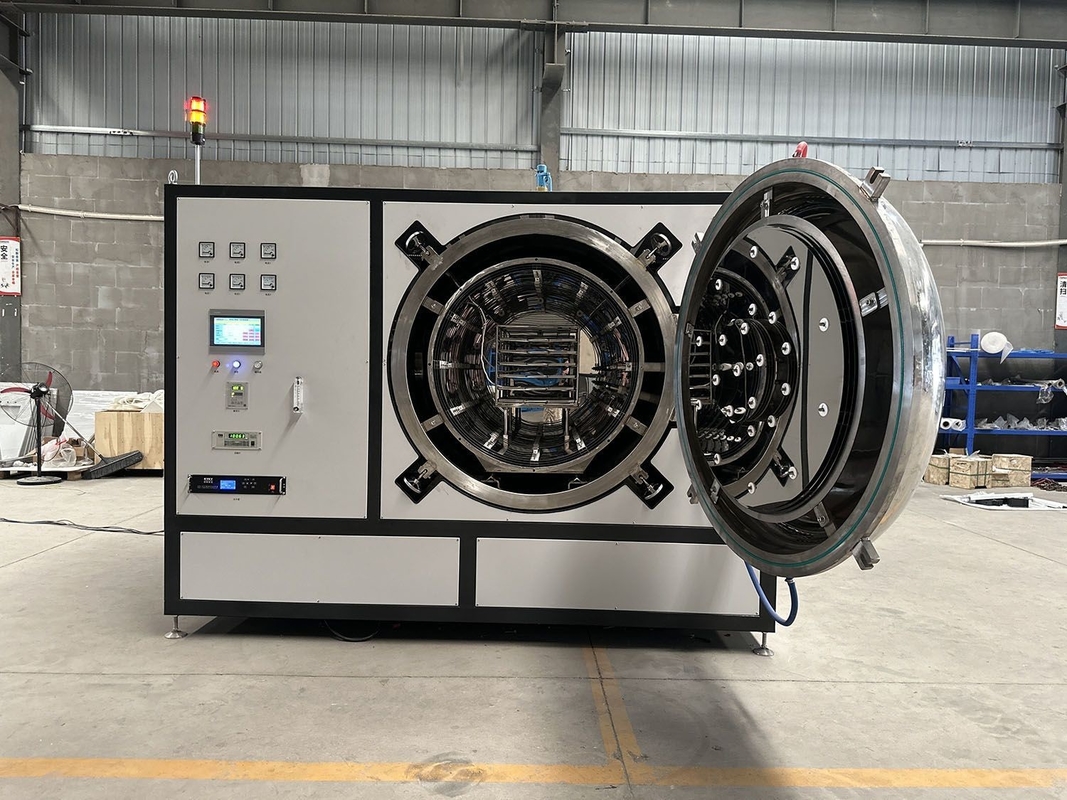

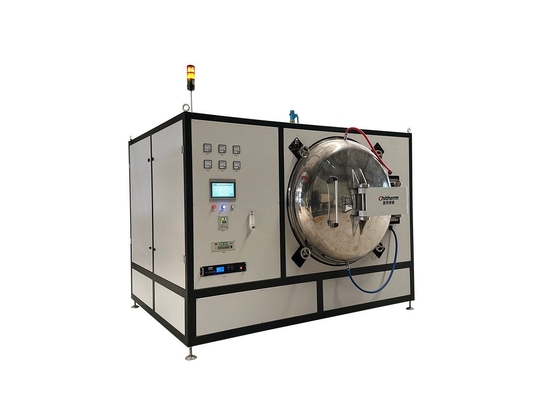

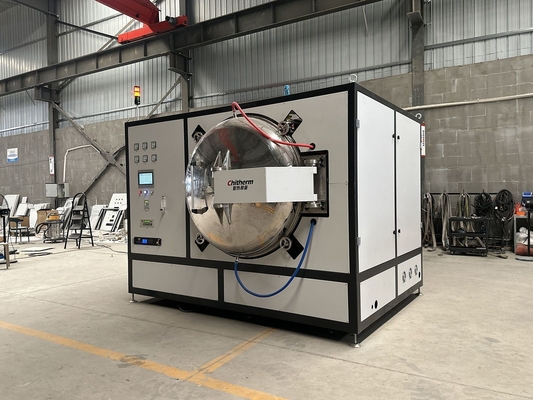

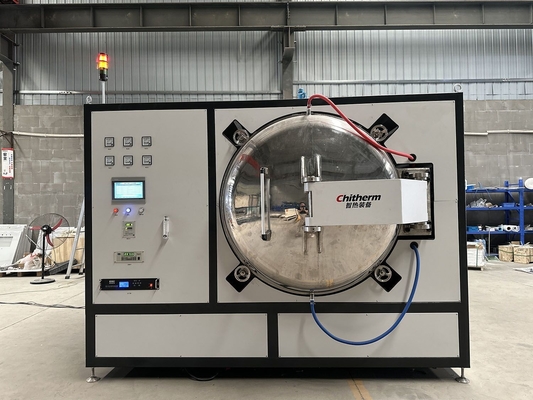

Custom Tank Vacuum Muffle Furnace Oven For Nitrogen Hydrogen Atmosphere

Large Image : Custom Tank Vacuum Muffle Furnace Oven For Nitrogen Hydrogen Atmosphere

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	CWF80-05

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

Custom Tank Vacuum Muffle Furnace Oven For Nitrogen Hydrogen Atmosphere

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Steel Molding	Fuel:	Electric
Atmosphere:	Vacuum/Nitrogen/Hydrogen	Effective Chamber Dimensions:	400400500mm(WHD)
Transport Package:	Wooden Packaging	Specification:	180020001800mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Production Capacity:	50 Sets/Year
Highlight:	custom Vacuum Muffle Furnace , Nitrogen Vacuum Muffle Furnace , Nitrogen vacuum atmosphere furnace

CWF80-05 Vacuum Tank Furnace for Vacuum/Nitrogen/Hydrogen Atmosphere in Precision Engineering Industry

1. Application:

This furnace is mainly designed for soldering process of metal parts and HTCC package, also can be used in other processes such as decarburization, annealing, quenching, scorching, hardening, thermal decomposition.

2. Technical Specification:

Rated Temp.: 400ºC
Max Temp.: 500ºC
Atmosphere: N₂, H₂, with humidification
Oxygen Content: Measured by O₂ content analyzer
Muffle Material: SUS 304S
Heating element: Ni-Cr Heating tape

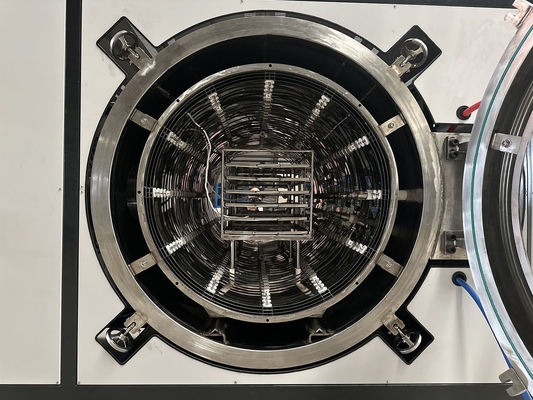

Effective Chamber Dimensions: 400×400×500mm(W×H×D)
Loading Method: Manual, through horizontal guideway shelves
Heating Method: Resistance wire pre-built heating plate
Cooling Method: Air cooling with blower
Temp. Control Stability: ± 1ºC(controller with P.I.D function)
Profile Steps: Default 20 steps
Temp. Uniformity: ± 5ºC
Thermcouple: Type K
Temperature control points: 3 Points
Number of temperature control sections: 9 Sections
Max. Heating Power: 50kW
Pressure rising rate: 0.67Pa/h
Heating Speed: ≤ 5ºC/min
Furnace Surface Temperature: ≤ 40ºC
Ultimate vacuum:5×10-4Pa
Exhaust System: 1 exhaust port on the top with H₂ igniter
Alarm System: audible and visual alarm in case of over temp, thermcouple broken, low air pressure, low water pressure, substandard vacuum level, etc
Weight: 900kg
Appearance Colour: Light Grey
External Dimensions: 1800mm×2000mm×1800mm (W×H×D)

3. Delivery List

Table 1 Delivery list
	Item	Note	Qty.
Basic Components	Furnace		1 SET
	inspection certificate	Certificate of major outsourced components	1 SET
	Technical Documents	Instructions, technical documents of the major outsourced parts, etc	1 SET
Key Components	Heating Element	Ni-Cr Heating tape	1 SET
	Vacuum System		1 SET

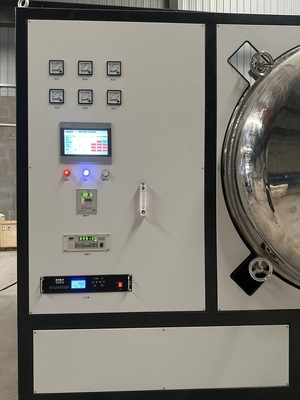

	Touch Screen	Proface	1 SET
	Temperature Controller	Azbil, CHINO or equivalent brand	1 SET
	Monoblock pump	Pumping speed 18L/s	1 Unit
	Turbo Molecular Pump	Pumping speed 1400L/s	1 Unit
	Composite vacuum gauge		1 Unit
	Pirani gauge		1 Unit
	Ionization gauge		1 Unit
	PLC	SIEMENS or equivalent brand	1 SET
Spare Parts	SSR		1 PCS

4. Facility Requirements

Environmental Conditions: temp.: 0~40ºC, humidity ≤ 80%RH, no corrosive gas, no strong airflow disturbance
N₂ Conditions: 99.999% purity, working pressure: 0.2-0.4MPa, Max gas consumption 2-6 m³/h
Water inflow conditions: 0.15~0.3Mpa,Clean, No Corrosion, Supply flow 2t/h
Compressed Air Condition: dry, clean, oil-free, working pressure: 0.4-0.8MPa
Water Conditions: clean, no corrosive water, working pressure 0.1-0.3MPa, 3-9L/min
Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 15m³/h
Ground Requirements: horizontal, no obvious vibration, load-bearing> 500 kg/m²;
Power Condition(TBD): capacity >70kVA, 3-phases 5-lines, voltage 220/380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
Installation Site: 2500mm×2500mm×3000mm(D×W×H), with an installation area greater than 7m².
