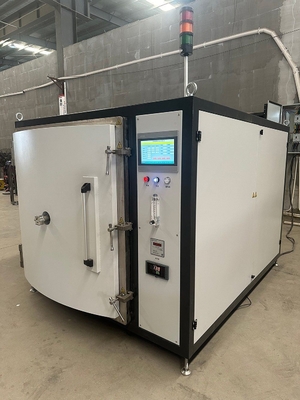

8PA Vacuum Heat Treatment Muffle Furnace for Industrial Laboratory

Large Image : 8PA Vacuum Heat Treatment Muffle Furnace for Industrial Laboratory

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	VBF1200-02

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

8PA Vacuum Heat Treatment Muffle Furnace for Industrial Laboratory

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Sintering	Fuel:	Electric
Atmosphere:	Vacuum	Effective Dimension:	8508501600mm(WHD)
Max Vacuum Level:	8PA	Transport Package:	Wooden Packaging
Specification:	850mm850mm1600mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Customization:	Available
Certification:	ISO	Place Style:	Horizontal
Highlight:	8PA Vacuum heat treatment muffle furnace , Industrial heat treatment muffle furnace , Muffle Industrial Laboratory furnace

Max Vacuum Level 8PA Industrial Laboratory Furnace Vbf1200-02 High Vacuum System Oven Furnace for Industrial Applications

Typical applications:
Primarily used for vacuum heating degassing of the coupler housing and suppression of air oxidation.

Parameter characteristics:
1. Product Model: Non-standard Customization
2 Operating Temperature: RT ~ 200°C
3. Maximum Temperature: 200°C

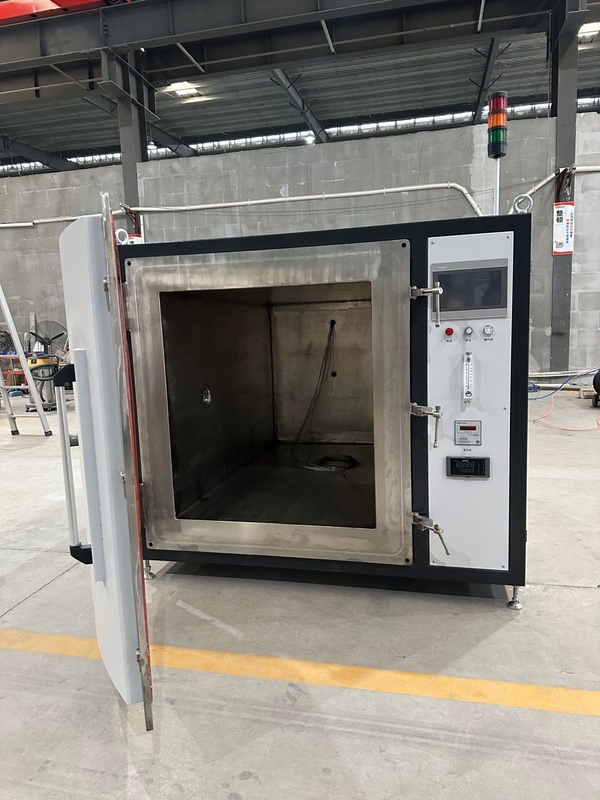

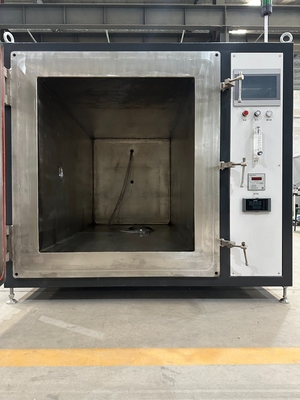

4. Furnace Cavity Dimensions: 900×1000×1600mm (W×H×D)
5. Heating Element: Ceramic Fiber Heating Plate
6. Controlled Atmosphere: 1 channel of nitrogen
7. Temperature Control Accuracy: ±1°C
8. Control Mode: Imported temperature controller with PID parameter auto-tuning
9. Number of Temperature Control Points: 3 points (front, middle, and rear)

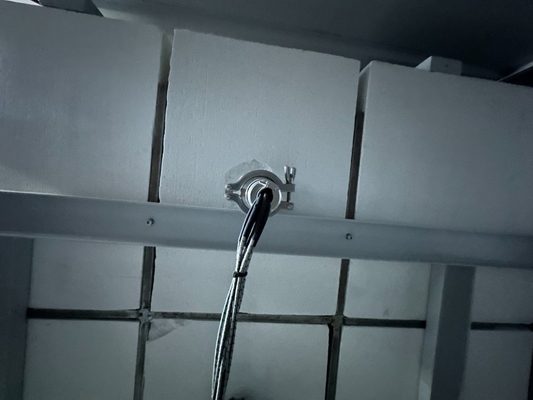

10. Number of Temperature Measurement Points: 8 SMD thermocouples

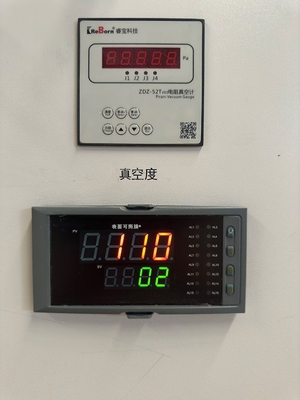

11.Vacuum Detection: Vacuum gauge tube and vacuum gauge for supporting detection
12. Alarm and Protection: Over-temperature, broken thermocouple, vacuum pump overload, low pressure, under-reverse phase, etc. audio-visual alarm protection
13. Design Power: ~12kW
14. Power Supply: Three-phase five-wire, 380/220VAC, 50Hz
15. Equipment Weight: ~1200Kg
16.Overall Dimensions: 1690mm×1550mm×2290mm (W×H×D).

Table One: Delivery Checklist

Name	Main Content	Quantity
Basic Components	Kiln main body		1 unit
	Inspection certificate	Certificate of conformity for each major purchased component	1 set
	Technical documents	Instruction manual, technical documents for each major purchased component, etc.	1 set
Key Components	Heating element	Ceramic fiber heating plate	1 set
	Touchscreen	10-inch touchscreen	1 unit
	Temperature controller	Yokogawa temperature controller	1 unit
	Screw pump	BaoSi GSD120 B screw pump	1 unit
	SMD thermocouples		8 sets
Spare Parts	SMD thermocouples		2 sets

Normal Operating Conditions of the Equipment

1 Environmental Conditions: Temperature 0 - 40°C, humidity ≤ 80% RH, no corrosive gases, and no strong air flow disturbances.

2 Floor Requirements: Level, without obvious vibration, with a bearing capacity > 500 Kg/m².

3 Power Conditions: Capacity greater than 24 kVA, three-phase five-wire system, voltage 220/380 V, frequency 50 Hz. Live wire: yellow, green, red; neutral wire: blue; earth wire: yellow-green.

4 Installation Site: 2500 mm × 3000 mm × 3000 mm (W × H × D), with an installation area greater than 8 m².
