Vertical Hwf80-04n Dehydrogenation Furnace for Modern Manufacturing Needs Package Size 1550.00cm * 1960.00cm * 1760.00cm

Large Image : Vertical Hwf80-04n Dehydrogenation Furnace for Modern Manufacturing Needs Package Size 1550.00cm * 1960.00cm * 1760.00cm

Product Details:

Contact Now Chat Now

Vertical Hwf80-04n Dehydrogenation Furnace for Modern Manufacturing Needs Package Size 1550.00cm * 1960.00cm * 1760.00cm

Description

Model NO.:	HWF80-04N	Type:	Electric Holding Furnace
Usage:	Ceramic Sintering	Fuel:	Electric
Atmosphere:	Vacuum/Nitrogen	Effective Chamber Dimensions:	400400500mm(WHD)
Maximum Temperature:	400°c	Maximum Heating Power:	15kw
Idle Furnace Insulation Power:	≤7.5kw	Temperature Control Accuracy:	±1°c
Thermocouple Type:	K-Type	Transport Package:	Wooden Packaging
Specification:	150019501750mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Package Size:	1550.00cm * 1960.00cm * 1760.00cm
Package Gross Weight:	1000.000kg	Customization:	Available
Place Style:	Vertical	Range Of Applications:	Industrial
Shipping Cost:	Contact The Supplier About Freight And Estimated Delivery Time.	:	Support Payments In USD
Secure Payments:	Every Payment You Make On Made-in-China.com Is Protected By The Platform.	Refund Policy:	Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.
Highlight:	Vertical dehydrogenation furnace for manufacturing , Vacuum muffle furnace with large package size , Hwf80-04n dehydrogenation furnace for industrial use

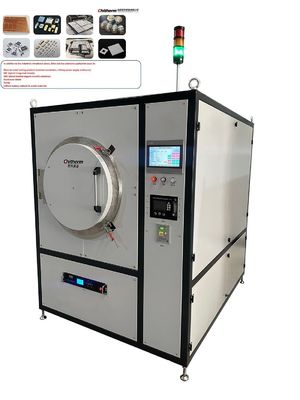

Vertical HWF80-04N Dehydrogenation Furnace for Modern Manufacturing Needs

Product Specifications

Attribute	Value
Model NO.	HWF80-04N
Type	Electric Holding Furnace
Usage	Ceramic Sintering
Fuel	Electric
Atmosphere	Vacuum/Nitrogen
Effective Chamber Dimensions	400400500mm (WHD)
Maximum Temperature	400°C
Maximum Heating Power	15kW
Idle Furnace Insulation Power	≤7.5kW
Temperature Control Accuracy	±1°C
Thermocouple Type	K-Type
Transport Package	Wooden Packaging
Specification	150019501750mm (WHD)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Supply Ability	50 Sets/Year
Package Size	1550.00cm * 1960.00cm * 1760.00cm
Package Gross Weight	1000.000kg
Customization	Available
Place Style	Vertical
Range of Applications	Industrial

Shipping Cost: Contact the supplier about freight and estimated delivery time.

Support payments in USD. Secure payments: Every payment you make is protected by the platform.

Refund policy: Claim a refund if your order doesn't ship, is missing, or arrives with product issues.

Product Description

I. Equipment Name and Model

HWF80-04N Type Dehydrogenation Furnace

II. Application Fields

Decarburization, dehydrogenation, annealing, tempering, degumming, and other heat treatment processes.

III. Technical Specifications and Basic Configuration

3.1 Rated Temperature: 350°C (unlimited platform time)
3.2 Maximum Temperature: 400°C
3.3 Tank Material: SUS316L
3.4 Effective Dimensions: 400×400×500mm (W×H×D)

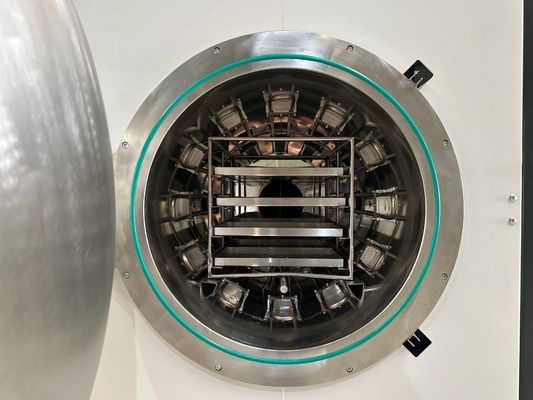

3.5 Loading Method: Manual loading, with horizontal guide rails and racks inside the tank body
3.6 Heating Element: Stainless steel heating tube for internal heating
3.7 Heating Method: Hot air circulation heating
3.8 Maximum Heating Power: 15kW
3.9 Idle Furnace Insulation Power: ≤7.5kW
3.10 Temperature Rise Rate: ≤5°C/min
3.11 Temperature Control Accuracy: ±1°C, with PID parameter self-tuning function
3.12 Temperature Uniformity: ±5°C (350°C constant temperature test for 1 hour in an empty furnace)
3.13 Thermocouple Type: K-type
3.14 Number of Temperature Control Points: 1 point

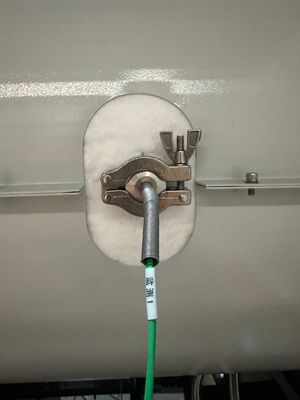

3.15 Temperature Measurement Method: Reserved inspection port, can install armored flexible thermocouples for real-time monitoring
3.16 Number of Program Steps: 20 steps
3.17 Sintering Atmosphere: Vacuum/Nitrogen

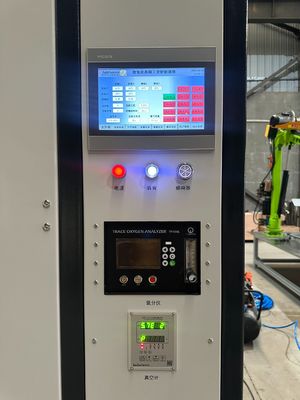

3.18 Oxygen Detection: Equipped with a micro-oxygen analyzer to detect the oxygen content inside the tank body (inert atmosphere state with positive pressure inside the tank)
3.19 Oxygen Content: Better than 50ppm
3.20 Ultimate Vacuum Degree: 10^-2 Pa (empty furnace, clean, room temperature, fully degassed)
3.21 Vacuum Pumping Time: From atmospheric pressure to 10^-2 Pa ≤60 minutes
3.22 Cooling Method: Furnace cooling, cooling from 350°C to room temperature in less than 12 hours
3.23 Exhaust Port: 1
3.24 Surface Temperature Rise: <35°C
3.25 Alarm Protection: Overtemperature, thermocouple breakage, low air pressure, low water pressure, motor under-voltage and other sound and light alarm protections, with overtemperature alarm cut-off heating protection function
3.26 Equipment Weight: About 1000kg
3.27 Equipment Color: Light gray
External Reference Dimensions: 1500×1950×1750mm (W×H×D), specific dimensions subject to actual product

IV. Delivery List

Item	Note	Qty.
Basic Components	Furnace	1 Unit
Inspection Certificate	Certificate of major outsourced components	1 Set
Technical Documents	Instructions, technical documents of the major outsourced parts, etc	1 Set
Key Components	Heating Element	Resistance wire pre-built heating plate
Mechanical Pump	Busch DRV60	1 Unit

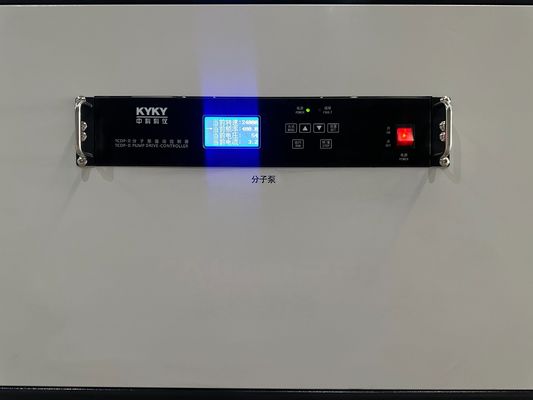

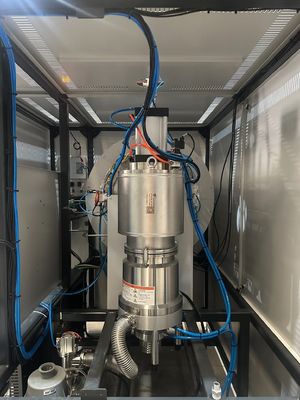

Molecular Pump	Zhongke Keyi FF-200	1 Unit
Vacuum Gauge + Regulator	Ruibao	1 Set
Oxygen Analyzer	Nanoaonai	1 Unit
Touch Screen		1 Unit
Mass Flow Meter	Precise Measurement	1 Unit
Temperature Controller	Azbil or equivalent brand	1 Set
Thermocouple	Type K	3 Pcs
PLC	SIEMENS or equivalent brand	1 Unit
Spare Parts	SSR	1 PC
Sealing ring	Fluororubber	1 Piece

V. Normal Operation Conditions of the Equipment

5.1 Environmental Conditions: Temperature 0~40°C, humidity ≤80%RH, no corrosive gases, no strong airflow disturbance
5.2 Nitrogen Conditions: Gas source pressure 0.2~0.4Mpa, purity 99.999%, gas consumption 2~6m3/h
5.3 Conducting Air Source Conditions: Clean, dry, oil-free compressed air, pressure 0.4~0.8Mpa
5.4 Water Supply Conditions: 0.1~0.3Mpa, clean, non-corrosive, supply flow rate 1~3L/min
5.5 Ventilation System: Non-contact connection to user's exhaust system, exhaust capacity greater than 10m3/h
5.6 Floor Requirements: Level, no significant vibration, load-bearing capacity >500kg/m2
5.7 Power Conditions: Capacity greater than 22kVA, 3-phase 5-wire, voltage 220/380V, frequency 50Hz. Live wires: Yellow, Green, Red; Neutral wire: Blue; Earth wire: Yellow-green
5.8 Installation Site: 3000mm×2500mm×3000mm (D×W×H), installation area greater than 8m2
