Vertical Industrial Electric Furnace HWF160-10NH Vacuum Furnace Manufactured in with 1550.000kg Gross Weight

Large Image : Vertical Industrial Electric Furnace HWF160-10NH Vacuum Furnace Manufactured in with 1550.000kg Gross Weight

Product Details:

Contact Now Chat Now

Vertical Industrial Electric Furnace HWF160-10NH Vacuum Furnace Manufactured in with 1550.000kg Gross Weight

Description

Model NO.:	HWF160-10NH	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Sintering
Fuel:	Electric	Atmosphere:	Vacuum/Nitrogen/Hydrogen
Effective Chamber Dimensions:	500500650mm(WHD)	Thermcouple:	K
Max Temp:	1100ºC	Transport Package:	Wooden Packaging
Specification:	165019502000mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Package Size:	166.00cm * 196.00cm * 201.00cm
Package Gross Weight:	1550.000kg	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Shipping Cost:	Contact The Supplier About Freight And Estimated Delivery Time.	:	Support Payments In USD
Secure Payments:	Every Payment You Make On Made-in-China.com Is Protected By The Platform.	Refund Policy:	Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.
Highlight:	vertical industrial electric furnace , vacuum muffle furnace with warranty , electric furnace 1550kg gross weight

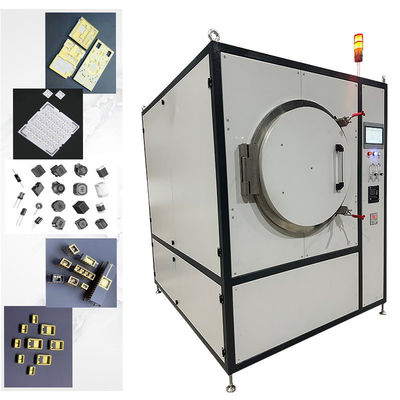

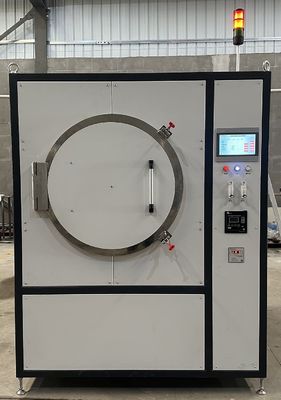

Vertical Industrial Electric Furnace HWF160-10NH Vacuum Furnace

Product Specifications

Model NO.	HWF160-10NH
Type	Electric Holding Furnace
Usage	Ceramic Sintering
Max Temp	1100ºC
Effective Chamber Dimensions	500×500×650mm (W×H×D)
Gross Weight	1550.000kg
Certification	ISO
Origin	China

Product Description

Applications

This vertical industrial furnace is designed for soldering processes of metal parts and HTCC packages, with additional capabilities for decarburization, annealing, quenching, scorching, hardening, and thermal decomposition processes.

Technical Specifications

Rated Temperature: 900ºC
Maximum Temperature: 1100ºC
Atmosphere Options: Vacuum, Nitrogen, Hydrogen

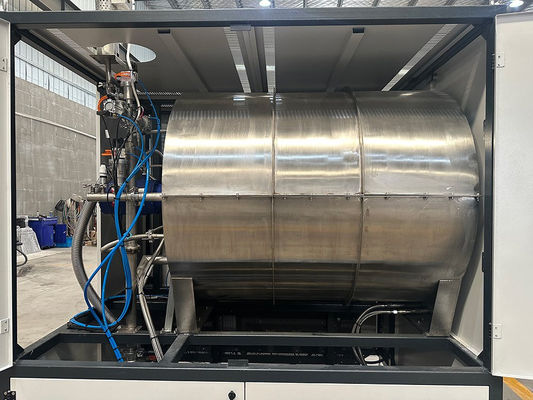

Muffle Material: SUS 310S
Temperature Control Stability: ±1ºC
Temperature Uniformity: ±5ºC
Max Heating Power: 40kW
Heating Speed: ≤5ºC/min
Max Vacuum Value: ≤10Pa

Delivery Contents

Item	Details	Quantity
Basic Components	Furnace	1 SET
Technical Documents	Instructions and technical specifications	1 SET
Temperature Controller	Azbil, CHINO or equivalent	1 SET
PLC	SIEMENS or equivalent	1 SET

Facility Requirements

Environmental Conditions: 0-40ºC, humidity ≤80%RH
N2 Purity: 99.999%, working pressure: 0.2-0.4MPa
Power Requirements: 55kVA, 3-phase 5-line, 220/380V
Installation Space: 3000×2500×3000mm (D×W×H)

Manufacturer Information

Hefei Chitherm Equipment Co., Ltd. specializes in the research, development, and manufacturing of high-quality industrial furnaces for applications in advanced ceramics, electronic components, powder metallurgy, and new energy sectors.

Frequently Asked Questions

What products does Chitherm offer?

We provide high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, and specialized industrial heating solutions.

What are Chitherm's core strengths?

As a high-tech enterprise, Chitherm possesses patented technologies and core resources to deliver superior furnace solutions with extensive customization options.
