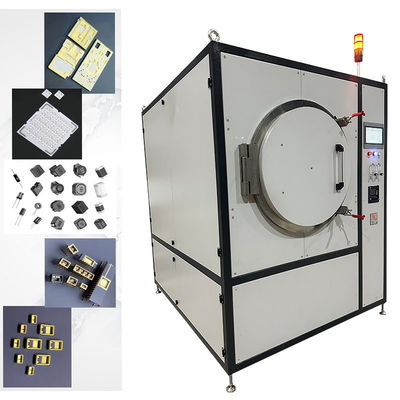

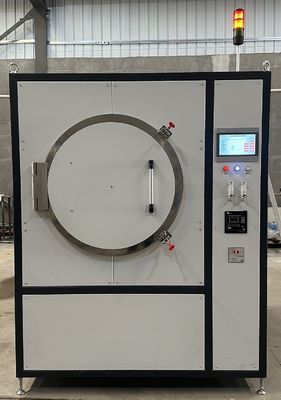

Industrial Electric Furnace Hwf160-10nh Vacuum Furnace Made in Designed for Industrial Applications

2. Technical Specification:

1. Rated Temp: 900ºC
2. Max Temp: 1100ºC
3. Atmosphere: N₂, H₂, with humidification
4. Oxygen Content: Measured by O₂ content analyzer

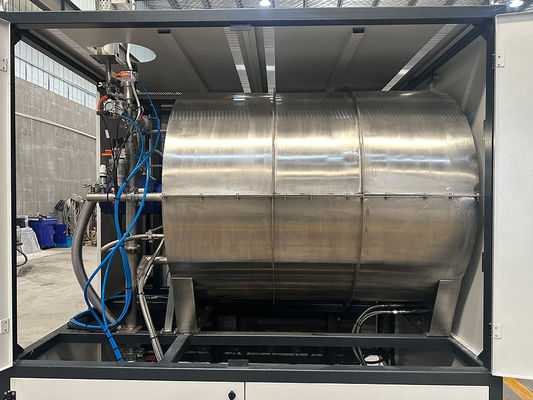

5. Muffle Material: SUS 310S
6. Muffle Dimensions: φ750mm×900mm(d×D)
7. Effective Chamber Dimensions: 500×500×650mm(W×H×D)
8. Loading Method: Manual, through horizontal guideway shelves
9. Heating Method: Resistance wire pre-built heating plate
10. Cooling Method: Air cooling with blower
11. Temp. Control Stability: ± 1ºC(controller with P.I.D function)
12. Profile Steps: Default 20 steps
13. Temp. Uniformity: ± 5ºC
14. Thermcouple: Type K
15. Temp Control: 3 Points
16. Temp. Measurement: 1 Point
17. Max. Heating Power: 40kW
18. Typical Insulation Power: ≤ 25kW
19. Heating Speed: ≤ 5ºC/min
20. Furnace Surface Temperature: ≤ 40ºC
21. Max Vacuum Value: ≤ 10Pa
22. Exhaust System: 1 exhaust port on the top with H₂ igniter
23. Alarm System: audible and visual alarm in case of over temp, thermcouple broken, low air pressure, low water pressure, substandard vacuum level, etc
24. Weight: 1500kg
25. Appearance Colour: Light Grey
26. External Dimensions: 1650mm×1950mm×2000mm (W×H×D)

1. Environmental Conditions: temp.: 0~40ºC, humidity ≤ 80%RH, no corrosive gas, no strong airflow disturbance
2. N₂ Conditions: 99.999% purity, working pressure: 0.2-0.4MPa, Max gas consumption 2-6 m³/h
3. H₂ Conditions: working pressure: 0.2-0.4MPa, Max gas consumption 1-3m³/h
4. Compressed Air Condition: dry, clean, oil-free, working pressure: 0.4-0.8MPa
5. Water Conditions: clean, no corrosive water, working pressure 0.1-0.3MPa, 3-9L/min
6. Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 15m³/h
7. Ground Requirements: horizontal, no obvious vibration, load-bearing> 500 kg/m²;
8. Power Condition(TBD): capacity > 55kVA, 3-phases 5-lines, voltage 220/380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
9. Installation Site: 3000mm×2500mm×3000mm(D×W×H), with an installation area greater than 7.5m².

Certifications

Packaging & Shipping

Company Profile

Hefei Chitherm Equipment Co., Ltd. is an advanced equipment supplier specializing in the research and development, design, manufacturing, sales, maintenance, and service of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces. Its product range encompasses bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, bogie hearth furnaces, rotary furnaces, roller hearth furnaces, and pusher furnaces, which are extensively applied in fields such as advanced ceramics, electronic components, thick-film circuits, additive manufacturing, powder metallurgy, new energy, and photovoltaics. These furnaces are suitable for thermal treatment processes of materials including ITO targets, MLCC/HTCC/LTCC, ceramic filters, magnetic materials, CIM/MIM, and lithium battery cathodes and anodes, as well as various other new material processes such as pre-sintering, dewaxing, degreasing, sintering, drying, heat treatment, curing, and ceramization.
