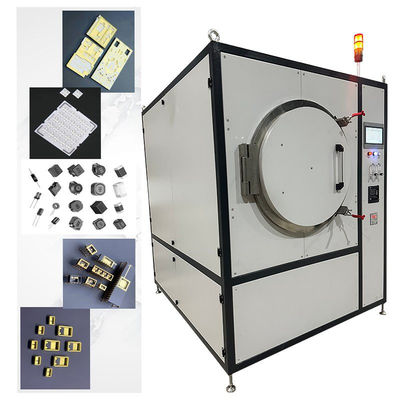

Industrial Furnace HWF160-10nh with Effective Chamber Dimensions 500*500*650mm Package Size 166.00cm * 196.00cm * 201.00cm

This furnace is designed for soldering processes of metal parts and HTCC packages, with additional applications including decarburization, annealing, quenching, scorching, hardening, and thermal decomposition.

• Rated Temperature: 900ºC
• Maximum Temperature: 1100ºC

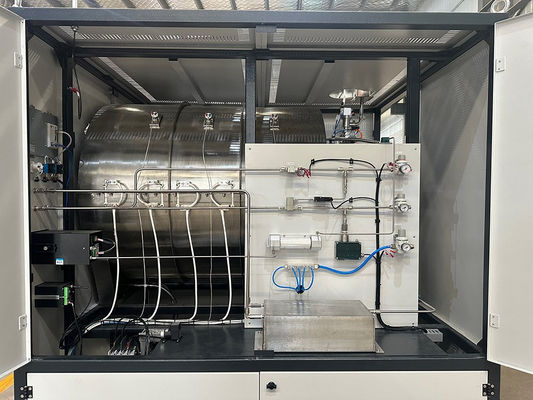

• Atmosphere: N2, H2 with humidification
• Oxygen Content: Measured by O2 content analyzer

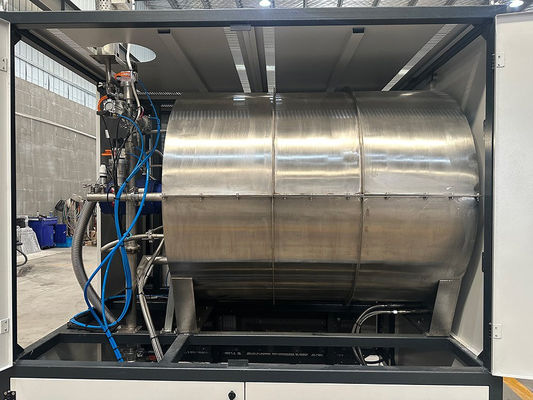

• Muffle Material: SUS 310S
• Muffle Dimensions: φ750mm×900mm(d×D)
• Effective Chamber Dimensions: 500×500×650mm(W×H×D)

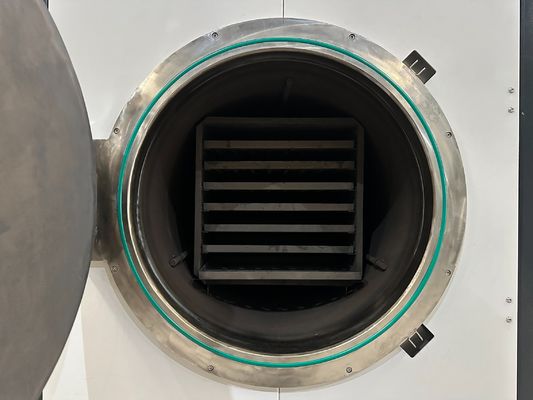

• Loading Method: Manual, through horizontal guideway shelves
• Heating Method: Resistance wire pre-built heating plate
• Cooling Method: Air cooling with blower

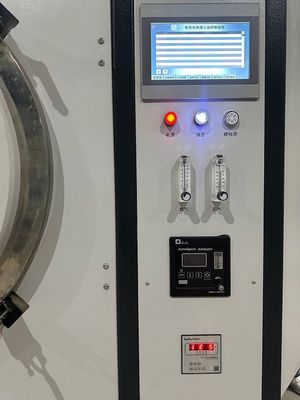

• Temperature Control Stability: ±1ºC (controller with P.I.D function)
• Profile Steps: Default 20 steps
• Temperature Uniformity: ±5ºC
• Thermcouple: Type K
• Temperature Control: 3 Points
• Temperature Measurement: 1 Point
• Maximum Heating Power: 40kW
• Typical Insulation Power: ≤25kW
• Heating Speed: ≤5ºC/min
• Furnace Surface Temperature: ≤40ºC
• Maximum Vacuum Value: ≤10Pa
• Exhaust System: 1 exhaust port on top with H2 igniter
• Alarm System: Audible and visual alarms for over temperature, thermocouple failure, low air/water pressure, substandard vacuum level
• Weight: 1500kg
• Appearance Color: Light Grey
• External Dimensions: 1650mm×1950mm×2000mm (W×H×D)

• Environmental Conditions: Temperature 0~40ºC, humidity ≤80%RH, no corrosive gas, no strong airflow disturbance
• N2 Conditions: 99.999% purity, working pressure: 0.2-0.4MPa, Max gas consumption 2-6 m³/h
• H2 Conditions: Working pressure: 0.2-0.4MPa, Max gas consumption 1-3m³/h
• Compressed Air Condition: Dry, clean, oil-free, working pressure: 0.4-0.8MPa
• Water Conditions: Clean, no corrosive water, working pressure 0.1-0.3MPa, 3-9L/min
• Ventilation System: Non-contact access to user pumping system, pumping capacity >15m³/h
• Ground Requirements: Horizontal, no obvious vibration, load-bearing >500 kg/m²
• Power Condition: Capacity >55kVA, 3-phases 5-lines, voltage 220/380V, frequency 50Hz
• Installation Site: 3000mm×2500mm×3000mm(D×W×H), installation area >7.5m²
