s Laboratory Furnace HWF160-10NH Vacuum Furnace with Fuel Electric and Effective Chamber Dimensions of 500500650mm

Large Image : s Laboratory Furnace HWF160-10NH Vacuum Furnace with Fuel Electric and Effective Chamber Dimensions of 500*500*650mm

Product Details:

Contact Now

s Laboratory Furnace HWF160-10NH Vacuum Furnace with Fuel Electric and Effective Chamber Dimensions of 500500650mm

Description

Model NO.:	HWF160-10NH	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Sintering
Fuel:	Electric	Atmosphere:	Vacuum/Nitrogen/Hydrogen
Effective Chamber Dimensions:	500500650mm(WHD)	Thermcouple:	K
Max Temp:	1100ºC	Transport Package:	Wooden Packaging
Specification:	165019502000mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Package Size:	166.00cm * 196.00cm * 201.00cm
Package Gross Weight:	1550.000kg	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Shipping Cost:	Contact The Supplier About Freight And Estimated Delivery Time.	:	Support Payments In USD
Secure Payments:	Every Payment You Make On Made-in-China.com Is Protected By The Platform.	Refund Policy:	Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.

Laboratory Furnace HWF160-10NH Vacuum Furnace with Fuel Electric and Effective Chamber Dimensions of 500*500*650mm

Product Specifications

Attribute	Value
Model NO.	HWF160-10NH
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Sintering
Fuel	Electric
Atmosphere	Vacuum/Nitrogen/Hydrogen
Effective Chamber Dimensions	500500650mm(WHD)
Thermcouple	K
Max Temp	1100°C
Transport Package	Wooden Packaging
Specification	165019502000mm(WHD)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Supply Ability	50 Sets/Year
Package Size	166.00cm * 196.00cm * 201.00cm
Package Gross Weight	1550.000kg
Customization	Available
Certification	ISO
Place Style	Vertical

Product Description

Applications

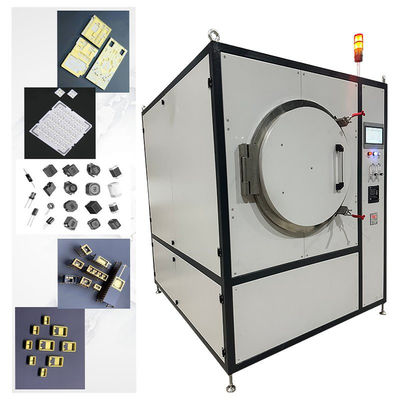

This furnace is primarily designed for soldering processes of metal parts and HTCC packages. It can also be used for various thermal processes including decarburization, annealing, quenching, scorching, hardening, and thermal decomposition.

Technical Specifications

Rated Temperature: 900°C
Maximum Temperature: 1100°C
Atmosphere: N2, H2, with humidification
Oxygen Content: Measured by O2 content analyzer

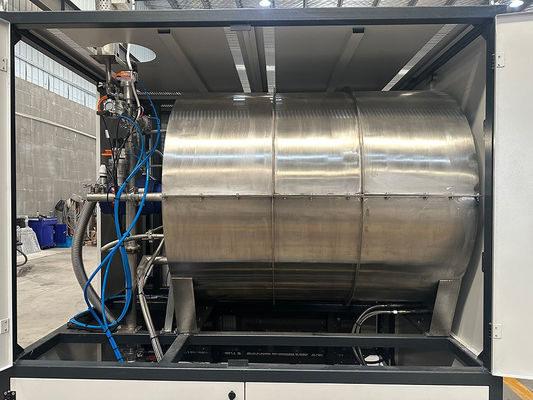

Muffle Material: SUS 310S
Muffle Dimensions: φ750mm×900mm(d×D)
Effective Chamber Dimensions: 500×500×650mm(W×H×D)
Loading Method: Manual, through horizontal guideway shelves
Heating Method: Resistance wire pre-built heating plate
Cooling Method: Air cooling with blower
Temperature Control Stability: ±1°C (controller with P.I.D function)
Profile Steps: Default 20 steps
Temperature Uniformity: ±5°C
Thermcouple: Type K
Temperature Control Points: 3 Points
Temperature Measurement: 1 Point
Maximum Heating Power: 40kW
Typical Insulation Power: ≤25kW
Heating Speed: ≤5°C/min
Furnace Surface Temperature: ≤40°C
Maximum Vacuum Value: ≤10Pa
Exhaust System: 1 exhaust port on the top with H2 igniter

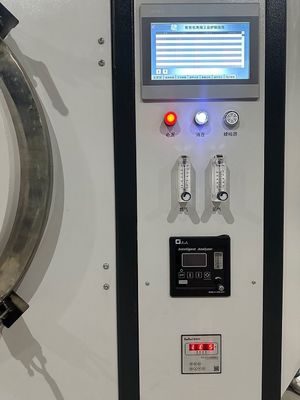

Alarm System: Audible and visual alarms for over temperature, thermocouple failure, low air pressure, low water pressure, substandard vacuum level, etc.
Weight: 1500kg
Appearance Color: Light Grey
External Dimensions: 1650mm×1950mm×2000mm (W×H×D)

Delivery List

Item	Note	Qty.
Basic Components	Furnace	1 SET
Inspection Certificate	Certificate of major outsourced components	1 SET
Technical Documents	Instructions, technical documents of the major outsourced parts, etc	1 SET
Key Components	Heating Element - Resistance wire pre-built heating plate	1 SET
Vacuum System		1 SET
Touch Screen		1 SET
Temperature Controller	Azbil, CHINO or equivalent brand	1 SET
Thermocouple	Type N	3 PCs
PLC	SIEMENS or equivalent brand	1 SET
Spare Parts	SSR	1 PC
Spare Parts	Sealing ring	1 PC

Facility Requirements

Environmental Conditions: Temperature: 0~40°C, humidity ≤80%RH, no corrosive gas, no strong airflow disturbance
N2 Conditions: 99.999% purity, working pressure: 0.2-0.4MPa, Max gas consumption 2-6 m³/h
H2 Conditions: Working pressure: 0.2-0.4MPa, Max gas consumption 1-3m³/h
Compressed Air Condition: Dry, clean, oil-free, working pressure: 0.4-0.8MPa
Water Conditions: Clean, no corrosive water, working pressure 0.1-0.3MPa, 3-9L/min
Ventilation System: Non-contact access to the user pumping system, pumping capacity >15m³/h
Ground Requirements: Horizontal, no obvious vibration, load-bearing >500 kg/m²
Power Condition: Capacity >55kVA, 3-phases 5-lines, voltage 220/380V, frequency 50Hz
Installation Site: 3000mm×2500mm×3000mm(D×W×H), with an installation area >7.5m²

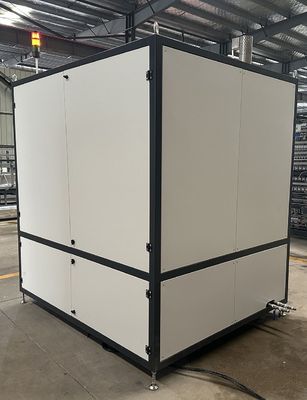

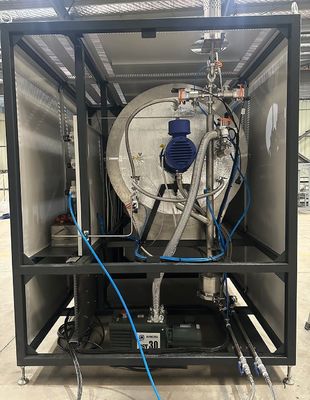

Product Images
