400400500mm WHD Effective Chamber Dimensions Industrial Dehydrogenation Furnace for Medium-Temperature Heat Treatment

Large Image : 400*400*500mm W*H*D Effective Chamber Dimensions Industrial Dehydrogenation Furnace for Medium-Temperature Heat Treatment

Product Details:

Contact Now

400400500mm WHD Effective Chamber Dimensions Industrial Dehydrogenation Furnace for Medium-Temperature Heat Treatment

Description

Model NO.:	HWF80-04N	Type:	Electric Holding Furnace
Usage:	Ceramic Sintering	Fuel:	Electric
Atmosphere:	Vacuum/Nitrogen	Effective Chamber Dimensions:	400400500mm(WHD)
Maximum Temperature:	400°c	Maximum Heating Power:	15kw
Idle Furnace Insulation Power:	≤7.5kw	Temperature Control Accuracy:	±1°c
Thermocouple Type:	K-Type	Transport Package:	Wooden Packaging
Specification:	150019501750mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Customization:	Available
Place Style:	Vertical	Range Of Applications:	Industrial

1.Overview

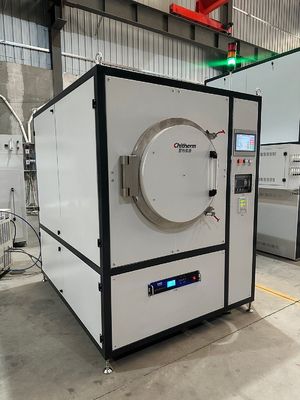

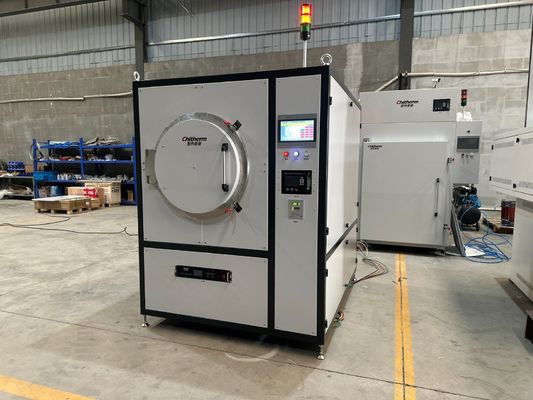

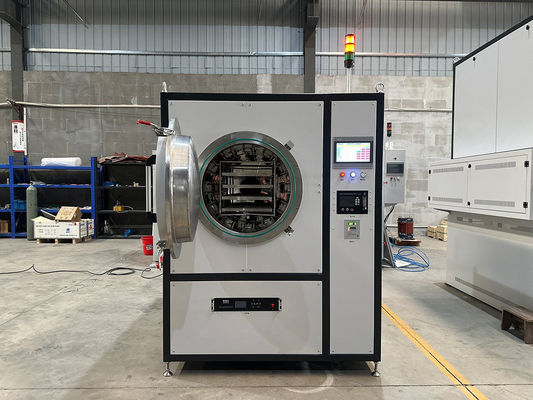

The HWF80-04N type dehydrogenation furnace is suitable for medium-temperature heat treatment of electronic products. It is primarily used for sintering processes of related materials under nitrogen or vacuum environments. The furnace is fully equipped with a real-time computer monitoring system, making it particularly suitable for material process testing requirements in research institutes.

2.Performance Parameters

Product Model: HWF80-04N
Operating Temperature: 350°C (for use in a vacuum environment; the temperature should not exceed 250°C in an ambient atmosphere)
Maximum Temperature: 400°C (for use in a vacuum environment; the temperature should not exceed 250°C in an ambient atmosphere)
Furnace Chamber Effective Dimensions: 400×400×500mm (W×H×D)
Heating Element: Internal heating with stainless steel heating tubes
Processing Atmosphere: Nitrogen, vacuum environment
Heating Method: Hot air circulation heating
Number of Temperature Control Points: 2
Temperature Stability: ±1°C, with PID parameter self-tuning function
Temperature Uniformity: ±5°C (tested with an empty furnace at 350°C for 1 hour), reserved inspection port
Control Method: Touch screen + PLC centralized control
Alarm Protection: Sound and light alarm protection for broken thermocouples, low water pressure, and non-compliant vacuum levels.
Heating Rate: ≤5°C/min
Heating Power: 15 kW
Power Requirements: Capacity greater than 22 KVA, 3-phase 5-wire, voltage 220/380V, frequency 50Hz
Approximate Dimensions: 1500×1950×1750mm (W×H×D)

3. Delivery List

Table 1 Delivery list
	Item	Note	Qty.
Basic Components	Furnace		1 Unit
	inspection certificate	Certificate of major outsourced components	1 Set
	Technical Documents	Instructions, technical documents of the major outsourced parts, etc	1 Set
Key Components	Heating Element	Resistance wire pre-built heating plate	1 Set
	Mechanical Pump	Busch DRV60	1 Unit

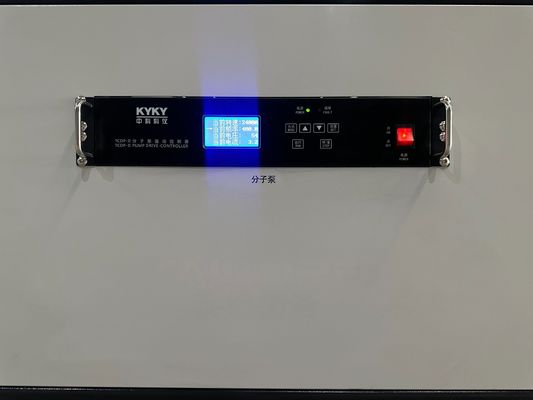

	Molecular Pump	Zhongke Keyi FF-200	1 Unit
	Vacuum Gauge + Regulator	Ruibao	1 Set
	Oxygen Analyzer	Nanoaonai	1 Unit
	Touch Screen		1 Unit
	Mass Flow Meter	Precise Measurement	1 Unit
	Temperature Controller	Azbil or equivalent brand	1 Set

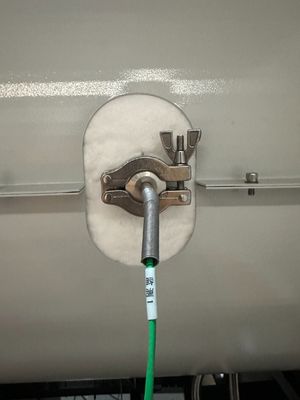

	Thermocouple	Type K	3 Pcs
	PLC	SIEMENS or equivalent brand	1 Unit
Spare Parts	SSR		1 PC
Spare Parts	Sealing ring	Fluororubber	1 Piece

4. Normal Operation Conditions of the Equipment
4.1 Environmental Conditions: Temperature 0~40°C, humidity ≤80%RH, no corrosive gases, no strong airflow disturbance;
4.2 Nitrogen Conditions: Gas source pressure 0.2~0.4Mpa, purity 99.999%, gas consumption 2~6m3/h;
4.3 Conducting Air Source Conditions: Clean, dry, oil-free compressed air, pressure 0.4~0.8Mpa;
4.4 Water Supply Conditions: 0.1~0.3Mpa, clean, non-corrosive, supply flow rate 1~3L/min;
4.5 Ventilation System: Non-contact connection to user's exhaust system, exhaust capacity greater than 10m3/h;
4.6 Floor Requirements: Level, no significant vibration, load-bearing capacity >500kg/m2;
4.7 Power Conditions: Capacity greater than 22kVA, 3-phase 5-wire, voltage 220/380V, frequency 50Hz. Live wires: Yellow, Green, Red; Neutral wire: Blue; Earth wire: Yellow-green;
4.8 Installation Site: 3000mm×2500mm×3000mm (D×W×H), installation area greater than 8m2.
