166.00cm * 196.00cm * 201.00cm Package Size Industrial Range 's Hwf160-10nh Vacuum Atmosphere Furnace for Industrial

Large Image : 166.00cm * 196.00cm * 201.00cm Package Size Industrial Range 's Hwf160-10nh Vacuum Atmosphere Furnace for Industrial

Product Details:

Contact Now

166.00cm * 196.00cm * 201.00cm Package Size Industrial Range 's Hwf160-10nh Vacuum Atmosphere Furnace for Industrial

Description

Model NO.:	HWF160-10NH	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Sintering
Fuel:	Electric	Atmosphere:	Vacuum/Nitrogen/Hydrogen
Effective Chamber Dimensions:	500500650mm(WHD)	Thermcouple:	K
Max Temp:	1100ºC	Transport Package:	Wooden Packaging
Specification:	165019502000mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Package Size:	166.00cm * 196.00cm * 201.00cm
Package Gross Weight:	1550.000kg	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Shipping Cost:	Contact The Supplier About Freight And Estimated Delivery Time.	:	Support Payments In USD
Secure Payments:	Every Payment You Make On Made-in-China.com Is Protected By The Platform.	Refund Policy:	Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.

HWF160-10NH Vacuum Atmosphere Furnace for Industrial Applications

Product Specifications

Attribute	Value
Model Number	HWF160-10NH
Type	Electric Holding Furnace
Primary Usage	Ceramic Sintering
Atmosphere Options	Vacuum/Nitrogen/Hydrogen
Effective Chamber Dimensions	500×500×650mm (W×H×D)
Maximum Temperature	1100°C
Thermocouple Type	K
Package Dimensions	166×196×201cm (W×H×D)
Gross Weight	1550 kg
Certifications	ISO

Product Description

Applications

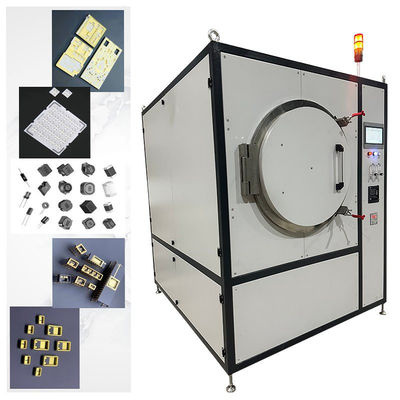

This industrial furnace is designed for soldering metal parts and HTCC packaging, with additional capabilities for decarburization, annealing, quenching, hardening, thermal decomposition, and other heat treatment processes.

Technical Specifications

Temperature Range: Rated at 900°C with maximum capability of 1100°C
Atmosphere Control: Supports N2, H2 with humidification capability
Muffle Construction: SUS 310S material with dimensions φ750mm×900mm
Temperature Uniformity: ±5°C across working chamber
Heating System: 40kW resistance wire pre-built heating plates
Vacuum Performance: Maximum vacuum level ≤10Pa
Safety Features: Comprehensive alarm system for over-temperature, thermocouple failure, and system anomalies

Standard Delivery Contents

Component	Details	Quantity
Furnace Unit	Main assembly	1 Set
Temperature Control	Azbil/CHINO controller	1 Set
Vacuum System	Complete assembly	1 Set
PLC System	SIEMENS or equivalent	1 Set
Thermocouples	Type K	3 Units
Documentation	Operation manuals and certificates	1 Set

Facility Requirements

Power Supply: 55kVA minimum, 3-phase 380V/220V, 50Hz
Gas Supply: N2 (99.999% purity) and H2 at 0.2-0.4MPa
Compressed Air: Dry, oil-free at 0.4-0.8MPa
Cooling Water: Clean supply at 0.1-0.3MPa
Installation Space: Minimum 3×2.5×3m (D×W×H)
Floor Load: Minimum 500kg/m² capacity

Certifications & Packaging

About Hefei Chitherm Equipment Co., Ltd.

Specializing in advanced thermal processing equipment, Chitherm designs and manufactures a comprehensive range of industrial and laboratory furnaces including vacuum furnaces, tube furnaces, and specialized heat treatment systems. Our solutions serve industries such as advanced ceramics, electronic components, powder metallurgy, and new energy applications.
